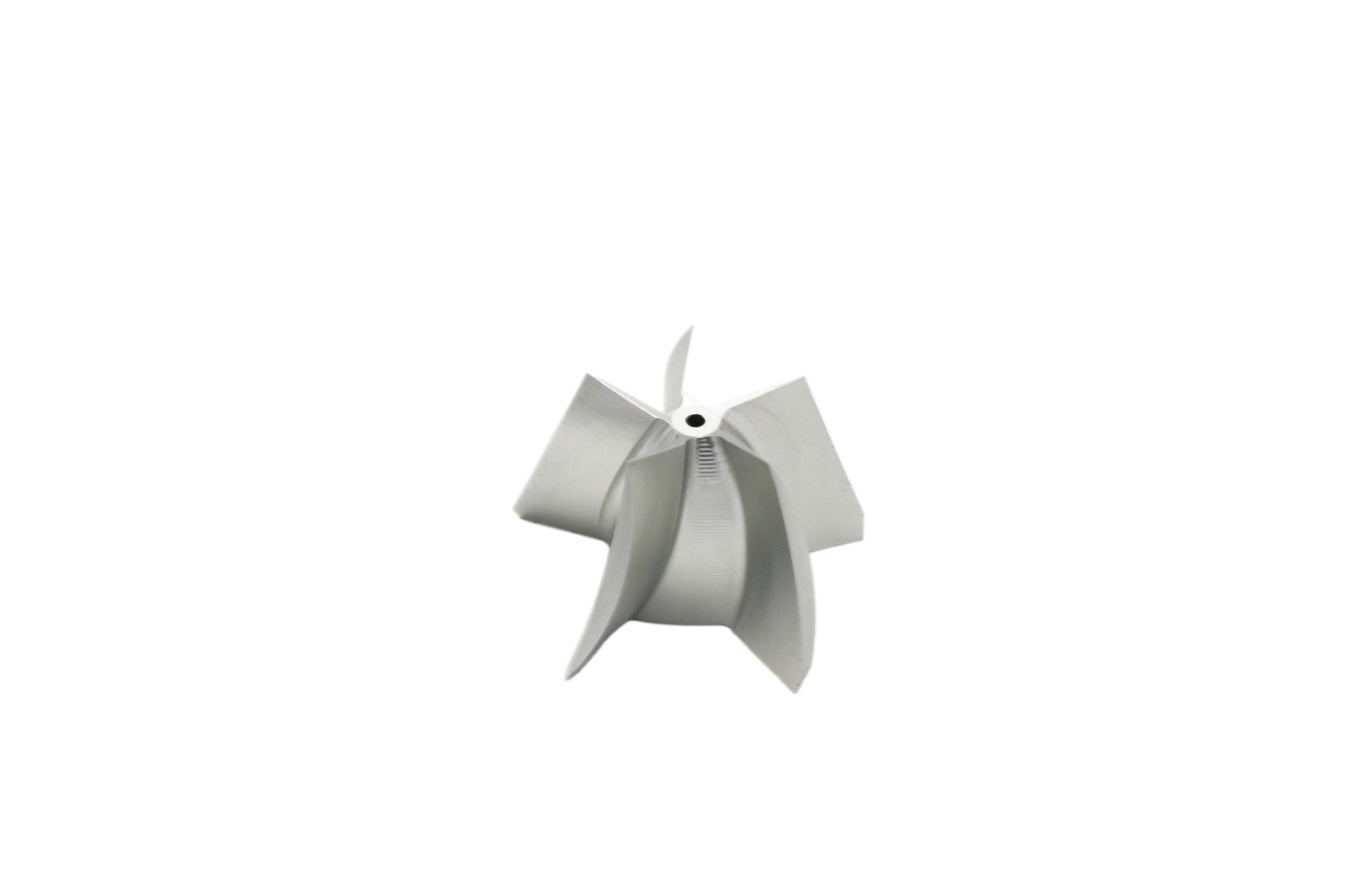

Trustworthy 5-axis CNC machining of impeller blades Precision Aluminum Parts

5-axis CNC machining represents the pinnacle of CNC manufacturing technology. By simultaneously controlling three linear axes and two rotary axes, it achieves multi-faceted forming of complex workpieces in a single clamping. Its processed parts primarily serve top-tier industrial fields such as aerospace, precision molds, and high-end impellers. Its characteristics can be systematically summarized into the following three aspects:

What are the three main characteristics of 5-axis CNC machining of impellers?

I. Unparalleled ability to form complex curved surfaces and integral structures

This is the core and fundamental advantage of 5-axis machining, breaking through the limitations of traditional three-axis machine tools in terms of geometric complexity.

1) High-precision continuous machining of complex spatial curved surfaces

5-axis linkage allows the tool axis to maintain the optimal angle with the machined surface at all times, enabling continuous cutting of parts with complex free-form surfaces, such as impeller blades, integral engine bladed disks, propellers, and automotive mold cavities, in a single operation with high surface finish. This avoids the accumulation of errors from multiple clamping operations and achieves surface continuity and quality far superior to segmented three-axis machining.

2) Direct Access to Deep Cavities, Sidewalls, and Irregular Features

By rotating the worktable or tool head, the 5-axis machine tool allows the tool to directly approach the bottom of deep cavities, steep sidewalls, or negative angle areas of the workpiece at the most suitable angle for machining. This enables the integral molding of closed irregular structures that traditionally require special tools or cannot be machined as a whole, significantly improving structural integrity and performance.

3) Efficient Completion of Composite Machining for Multifaceted Workpieces

For box-type or irregular frame-type parts that require milling, drilling, and tapping in five or more directions, the 5-axis machine tool can complete the machining of almost all features in a single clamping and automatic indexing. This greatly shortens clamping and positioning time and ensures extremely high relative positional accuracy between features.

Trustworthy 5-axis CNC machining of impeller blades Precision Aluminum Parts

II. Ultimate Machining Accuracy and Surface Quality

1) 5-Axis Machining Offers Higher Overall Geometric Accuracy and Consistency

By reducing the number of clamping operations, cumulative errors caused by datum conversion are avoided. 1) The workpiece undergoes most or all of its machining in a single setup, with the positional relationships between its various features entirely guaranteed by the machine tool's inherent precision, resulting in higher overall form and position tolerances and dimensional consistency. This is crucial for demanding precision assemblies.

2) 5-axis machining offers superior tool performance and surface finish.

5-axis simultaneous machining allows for optimized selection of side milling or end milling, ensuring that the optimal cutting point of ball end mills or nose end mills continuously operates on the workpiece surface. This not only extends tool life and reduces cutting vibration but also directly achieves lower surface roughness (up to Ra0.4μm or lower) and fewer tool marks, often eliminating the need for subsequent manual polishing.

3) Improved machining stability for thin-walled and easily deformable parts.

For thin-walled, low-rigidity parts commonly found in the aerospace industry, 5-axis machining can significantly improve the rigidity of the machining system by adjusting angles and using shorter tools for smaller overhangs. This reduces tool deflection and cutting vibration, effectively controls machining deformation, and ensures the dimensional accuracy of thin-walled features.

III. Significantly Improved Machining Efficiency and Overall Economic Performance

1) Shortened Process Flow and Production Cycle

The ability to complete multi-faceted machining in a single setup eliminates significant time spent on designing and manufacturing specialized tooling fixtures, as well as the auxiliary time required for repeated clamping and debugging. For complex parts, the total machining cycle can be reduced by more than 50% compared to three-axis machine tools, accelerating product delivery.

2) Achieved Efficient Roughing of Complex Parts

By tilting the spindle, large-volume layer cutting can be performed using the side edge of the tool, achieving a metal removal rate far exceeding that of three-axis methods that can only perform Z-axis planing using the tool tip. This allows five-axis machine tools to significantly improve material removal efficiency even in the roughing stage, saving considerable time throughout the entire machining process.

3) Reduced Overall Costs and Empowering Innovative Design

From a project-wide perspective, 5-axis machining reduces overall manufacturing costs and management complexity by decreasing the number of processes, fixtures, inspection steps, and scrap rates. More importantly, it liberates product designers from the manufacturing constraints of geometric shapes, enabling "design freedom" based on performance optimization. This fosters new, more competitive, and functional products, creating value far exceeding the cost of machining itself.

In summary, the characteristics of 5-axis CNC machining construct a reinforcing triangle of "capability-quality-efficiency": it unlocks extreme geometric complexity through multi-dimensional motion capabilities; based on this, it achieves a leap in precision and surface quality; ultimately, in the high-end manufacturing value chain, it demonstrates an irreplaceable strategic role by improving efficiency, reducing costs, and empowering innovative design.

Company Profile

    We are a manufacturer integrating industry and trade. We have more than 20 years of experience in production technology. We are located in Dongguan City, Guangdong Province, China. We have advanced high-end professional production and processing technology, and are committed to innovative R&D and production. After years of  market tempering and exploration, it has high-quality   technical management personnel, experienced designers, R&D personnel and a   perfect company management system cnc precision.

5-axis CNC workshop

         Our factory has a plant area of about 2,000 square meters and masters core processing technologies. It has high-end precision production equipment cnc precision: CNC lathes, 5-axis CNC, 4-axis CNC, stamping equipment, die-casting equipment, etc. 2.5-dimensional detection equipment ​

two-dimensional testing

cnc precision surface treatment

          For surface treatment, our suppliers have been working with us for many years. They have rich experience and are familiar with all the quality requirements of each other. The quality is stable and more guaranteed. Such as: heat treatment, spray painting, powder coating, blackening, silver/gold plating, electrolytic polishing, nitriding, phosphating, nickel/zinc/chromium/TiCN plating, anodizing, polishing, passivation, sandblasting, galvanizing, heat treatment , hardening, laser marking, etc. according to customer requirements. Aluminum alloy surface oxidation

Product Packaging

Packaging Details

1. Commercial packaging: 1pc/plastic bag + color box +carton + pallet;
2. Industrial packaging: (1). plastic tube + carton + pallet; (2). plastic bag + kraft paper + carton + pallet;
3. According to the requirement of customer.

FAQ

Q1: Where can I get product & price information?

A1: Send us an inquiry e-mail, we will contact you once we received your mail.

Q2: How long will I get the sample?

A2: Depends on your specific items, within 3-7 days generally.

Q3: What kinds of information do you need for a quote?

A3: Kindly please provide the product drawings in PDF, if provide in STEP or IGS will be better.

Q4: What are the payment terms?

A4: We accept 50% as a payment deposit, when the goods are prepared, we shoot photos or videos for your check, and then you can pay the balance. For small quantities, we accept Paypal, the commission will be added to the order. For big amounts, T/T is preferred.

Q5: How to deliver the goods?

A5: We deliver the products by courier company.

Q6: Are you a trading company or factory?

A6: We are factory direct with 17 experienced engineers and more than 50 employees as well approximate 3,000m2 workshop area.

Q7: What shall we do if we don't have drawings?

A7: Please send your sample to our factory, then we can copy and provide you better solutions. If send us pictures or drafts with dimensions(Length, Height, Width), CAD or 3D file will be made for you.

Q8: Can we get some samples before mass production?

A8: Absolutely yes.

Q9: Will my drawings be safe after sending them to you?
