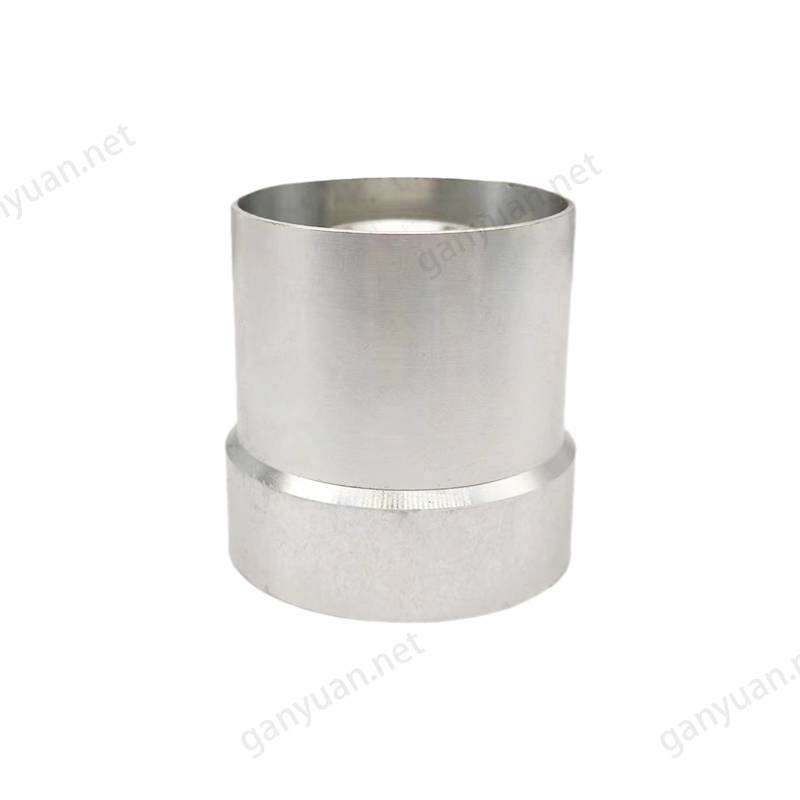

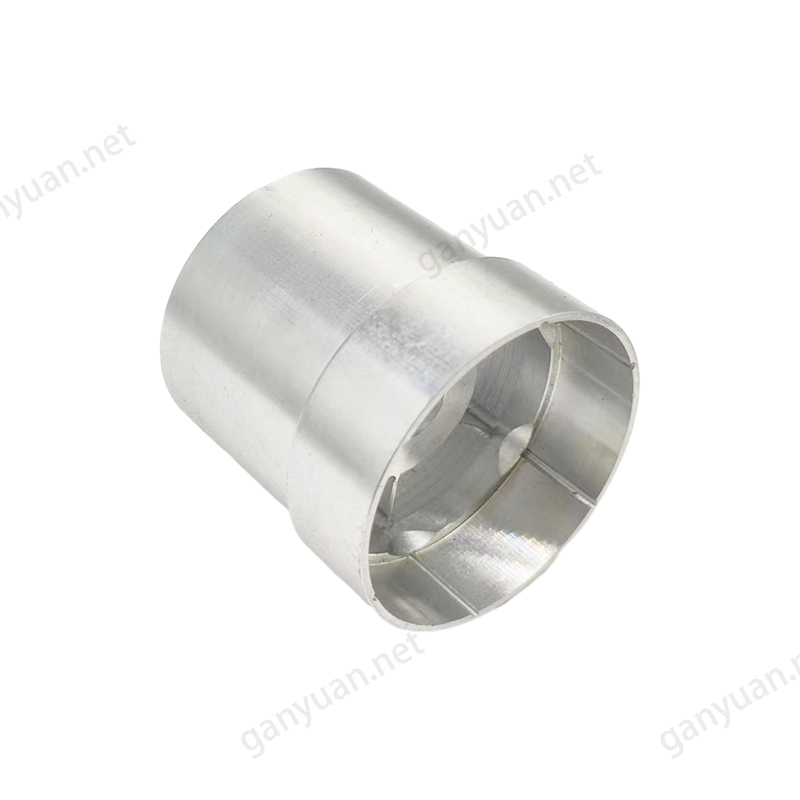

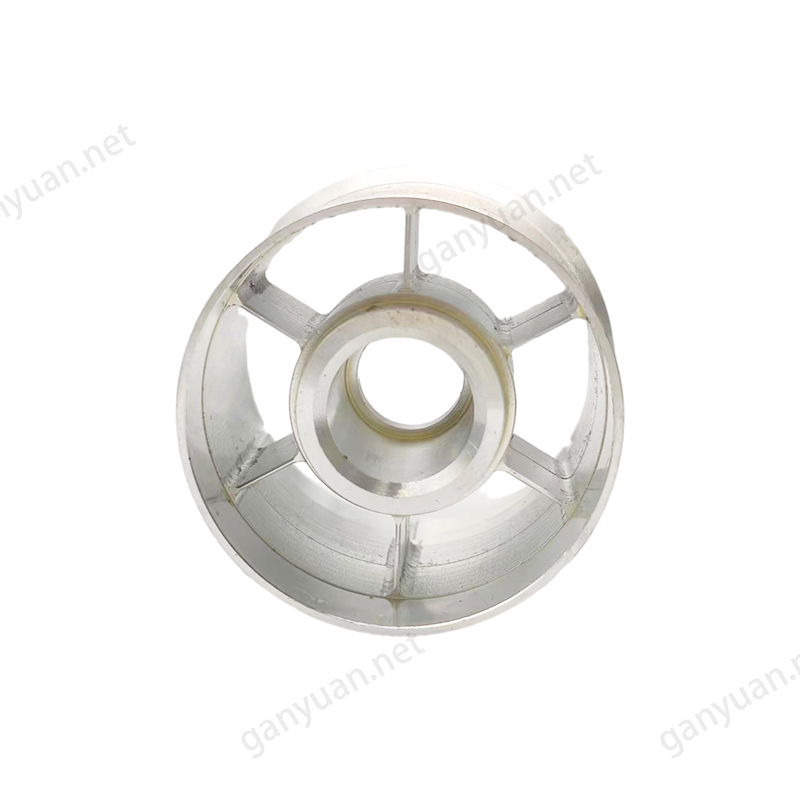

Precision aluminum air duct Trustworthy CNC machining customization

Core Advantages and Technical Features of CNC-Machinered Aluminum Air Ducts

I. Superior Control of Geometric Accuracy and Aerodynamic Performance

1. The most significant advantage of CNC-machined aluminum air ducts lies in their exceptional geometric accuracy and aerodynamic performance.

Using high-precision CNC machining centers, the inner wall profile tolerance of the air duct can be stably controlled within ±0.05mm, the inner surface roughness reaches below Ra1.6μm, and the roundness error is ≤0.03mm. In wind tunnel testing, this level of precision ensures the uniformity of the airflow distribution, reduces turbulence to below 0.5%, and improves test data repeatability by 30%.

2. Precise shaping of the inner wall curved surface is particularly crucial.

Through multi-axis linkage technology, complex contraction section profiles such as the Vitósinski curve and the fifth-order curve, which conform to aerodynamic design, can be machined with a profile error ≤0.05mm. In precision air ducts used in wind tunnel laboratories, this precise profile accelerates and stabilizes airflow, reduces boundary layer thickness by 20%, and significantly improves the flow field quality in the test section.

3. High consistency in mass production ensures the quality of scientific research equipment manufacturing.

In the mass production of wind tunnel ducts, the flatness of the connecting flanges of each section is controlled within 0.02mm, and the positioning stop clearance is 0.02-0.04mm, ensuring that the overall straightness of the assembled sections reaches 0.1mm/10m. This consistency shortens the on-site installation cycle of large wind tunnels by 50%.

Precision aluminum air duct Trustworthy CNC machining customization

II. Integrated Processing of Complex Structures and Flow Channel Features

1. CNC machining technology has transformed aluminum wind tunnel ducts from simple circular tubes into highly efficient flow guiding components with complex flow channel features.

Wind tunnels with rectifiers have their internal rectifier grooves, honeycomb mounting bases, etc., machined in one piece with the duct body. The depth accuracy of the rectifier grooves is ±0.02mm. This integrated structure further improves airflow uniformity and reduces turbulence to within 0.2% in high-precision wind tunnel ducts.

2. Precision machining of static pressure measurement holes demonstrates technological strength.

1. Using a micro-drill bit, static pressure measurement holes with a diameter of 0.3-1.0 mm are machined on the wall of the wind tunnel. The hole position accuracy is ±0.05 mm, the chamfer at the hole opening is uniform, and the inner wall is burr-free. For wind tunnels used in aerodynamic performance testing, these precision pressure measurement holes ensure accurate pressure measurement and improve dynamic response frequency.

2. Integrated molding of the contraction and diffusion sections.

Through five-axis linkage machining, a smooth transition between the contraction, testing, and diffusion sections is achieved, with a step at the connection point ≤0.02 mm. For large wind tunnels used in automotive wind tunnels, this integrated design reduces airflow separation and lowers energy loss by 15%.

III. Full utilization of material properties

1. Aluminum alloys such as 6061-T6 and 5083-H32 exhibit excellent performance in wind tunnel manufacturing.

The materials have high thermal conductivity (150-200 W/m·K), which can quickly conduct frictional heat from the airflow and maintain uniform temperature. 1. High-Temperature Wind Tunnel Aluminum Ductwork: Maintains structural stability even at 200℃ operating temperature, with thermal deformation ≤0.1mm/m.

2. Precise Control of Surface Integrity:

Through precision machining, an inner surface roughness of less than Ra1.6μm is achieved, while surface defects are removed, reducing airflow friction resistance. Computational fluid dynamics analysis shows that reducing surface roughness from Ra3.2μm to Ra1.6μm reduces friction resistance by 8%, resulting in reduced fan energy consumption.

3. Full Utilization of Weldability:

Aluminum alloys possess excellent weldability. Precision-machined bevels can be joined by argon arc welding, resulting in smooth welds and minimal post-weld deformation. For large, segmented wind ducts, the inner wall is re-NC-bored after on-site welding to ensure consistent overall inner diameter.

IV. Perfect Balance Between Lightweight Design and Rigidity:

1. The low-density characteristics of aluminum alloys are fully utilized through precision machining.

Under the same rigidity requirements, aluminum wind ducts are 65% lighter than steel ducts, facilitating transportation and installation. 1. Portable Aluminum Wind Tunnel Ducts: Total weight controlled within 100kg, allowing for rapid disassembly and relocation.

2. Stable Machining Technology for Thin-Wall Structures:

Utilizing high-speed cutting and specialized support fixtures, thin-walled wind ducts with a wall thickness of 3-8mm can be stably machined, with wall thickness tolerance controlled within ±0.2mm. Wind ducts for aero-engine testing achieve minimal weight while ensuring sufficient rigidity, facilitating installation on high-altitude test platforms.

3. Precise Layout of Reinforcing Ribs:

Longitudinal and circumferential reinforcing ribs are machined onto the outer wall of the wind duct using CNC machining. Rib height is 5-15mm, width is 3-8mm, and positional accuracy is ±0.5mm.

V. Manufacturing Efficiency and Economic Benefits

1. High-Speed ​​Cutting Technology Significantly Improves Machining Efficiency:

Cutting speeds for aluminum alloys can reach 1000-2000m/min, increasing machining efficiency by 5-8 times compared to steel. Segmented machining of large wind ducts shortens the cycle time from blank to finished product by 40% compared to traditional processes.

2. Significantly Improved Material Utilization.

By optimizing material cutting and processing paths, the utilization rate of aluminum alloy sheets has increased from 70% in traditional processes to 85%. Using a combination of spinning blanks and precision machining, the material utilization rate for large-scale ventilation ducts can reach over 90%, significantly reducing raw material costs.

3. Flexibility of Segmented Manufacturing.

By employing segmented CNC machining followed by flange connections, ultra-large diameter ventilation ducts can be manufactured, solving transportation limitations. During on-site assembly, the interchangeability of each segment is good, installation accuracy is high, and overall costs are reduced.

Company Profile

    We are a manufacturer integrating industry and trade. We have more than 20 years of experience in production technology. We are located in Dongguan City, Guangdong Province, China. We have advanced high-end professional production and processing technology, and are committed to innovative R&D and production. After years of  market tempering and exploration, it has high-quality   technical management personnel, experienced designers, R&D personnel and a   perfect company management system cnc precision.

5-axis CNC workshop

         Our factory has a plant area of about 2,000 square meters and masters core processing technologies. It has high-end precision production equipment cnc precision: CNC lathes, 5-axis CNC, 4-axis CNC, stamping equipment, die-casting equipment, etc. 2.5-dimensional detection equipment ​

two-dimensional testing

cnc precision surface treatment

          For surface treatment, our suppliers have been working with us for many years. They have rich experience and are familiar with all the quality requirements of each other. The quality is stable and more guaranteed. Such as: heat treatment, spray painting, powder coating, blackening, silver/gold plating, electrolytic polishing, nitriding, phosphating, nickel/zinc/chromium/TiCN plating, anodizing, polishing, passivation, sandblasting, galvanizing, heat treatment , hardening, laser marking, etc. according to customer requirements. Aluminum alloy surface oxidation

Product Packaging

Packaging Details

1. Commercial packaging: 1pc/plastic bag + color box +carton + pallet;
2. Industrial packaging: (1). plastic tube + carton + pallet; (2). plastic bag + kraft paper + carton + pallet;
3. According to the requirement of customer.

FAQ

Q1: Where can I get product & price information?

A1: Send us an inquiry e-mail, we will contact you once we received your mail.

Q2: How long will I get the sample?

A2: Depends on your specific items, within 3-7 days generally.

Q3: What kinds of information do you need for a quote?

A3: Kindly please provide the product drawings in PDF, if provide in STEP or IGS will be better.

Q4: What are the payment terms?

A4: We accept 50% as a payment deposit, when the goods are prepared, we shoot photos or videos for your check, and then you can pay the balance. For small quantities, we accept Paypal, the commission will be added to the order. For big amounts, T/T is preferred.

Q5: How to deliver the goods?

A5: We deliver the products by courier company.

Q6: Are you a trading company or factory?

A6: We are factory direct with 17 experienced engineers and more than 50 employees as well approximate 3,000m2 workshop area.

Q7: What shall we do if we don't have drawings?

A7: Please send your sample to our factory, then we can copy and provide you better solutions. If send us pictures or drafts with dimensions(Length, Height, Width), CAD or 3D file will be made for you.

Q8: Can we get some samples before mass production?

A8: Absolutely yes.

Q9: Will my drawings be safe after sending them to you?
