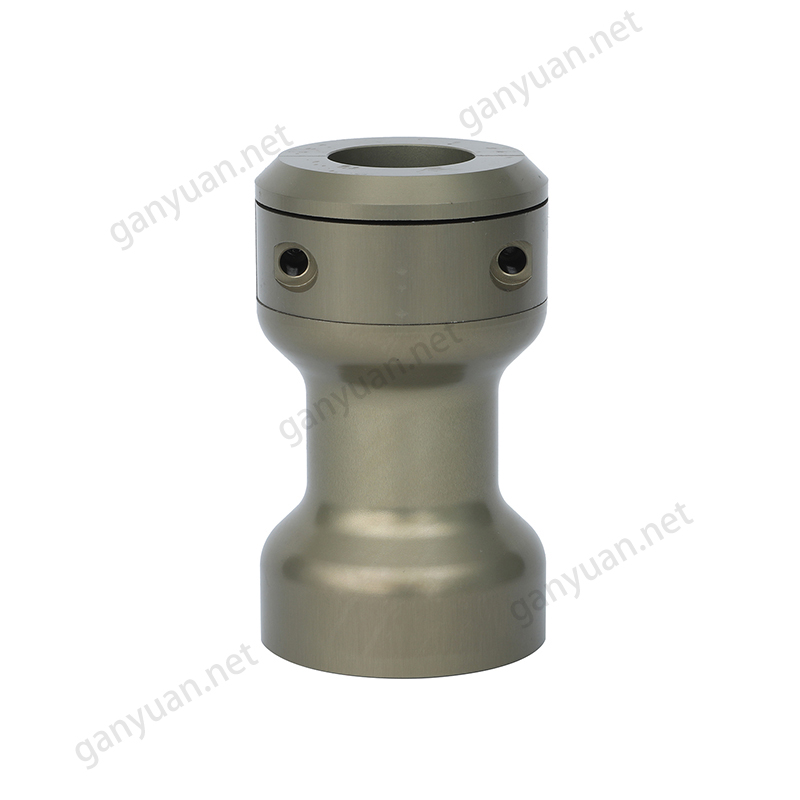

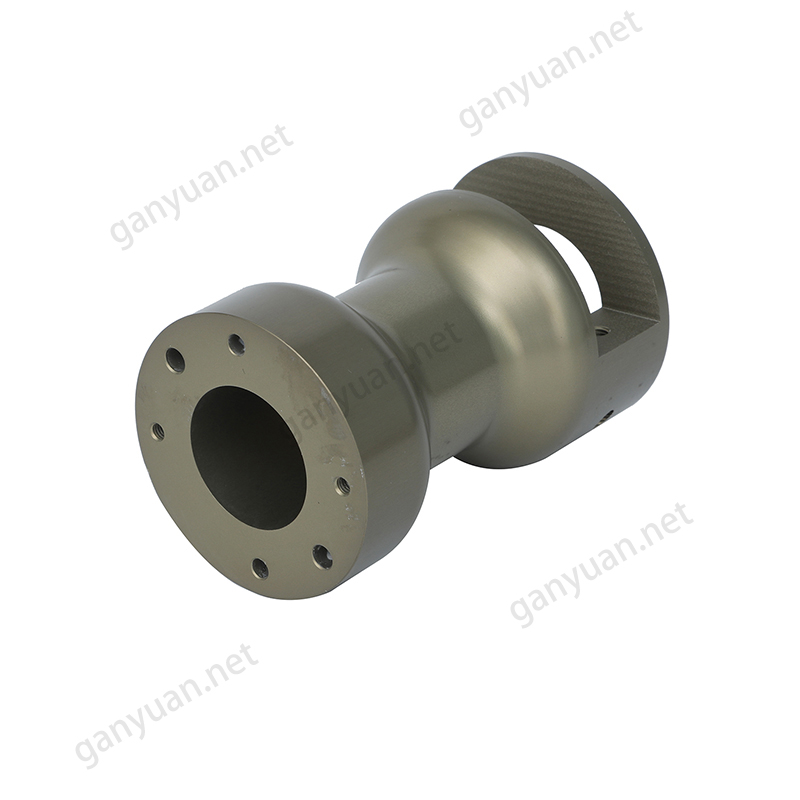

High-quality 7075 aluminum couplings special couplings for CNC machining high-torque equipment.

In modern precision transmission systems, couplings, as key components connecting the driving and driven shafts, are undergoing comprehensive performance upgrades through CNC machining technology. Aluminum couplings, with their lightweight advantages combined with precision manufacturing processes, demonstrate unique technological value in fields such as robot joints, precision machine tools, and servo systems, becoming an ideal choice for high-dynamic-response transmission systems.

High-quality 7075 aluminum couplings special couplings for CNC machining high-torque equipment.

1. The core breakthrough of CNC-machined couplings lies in their extreme lightweight design and optimized dynamic characteristics.

Utilizing high-strength aluminum alloys such as 7075-T6, couplings with topology optimization design, while ensuring torque transmission capacity, can shorten cycle time and reduce motor energy in industrial robot wrist joints, providing crucial support for high-speed, high-precision motion control.

2. Precise spline and surface machining in CNC-machined couplings achieve zero-backlash transmission.

Five-axis CNC machining centers can achieve micron-level precision control of involute splines, with tooth profile error ≤0.01mm and cumulative tooth pitch error ≤0.02mm. The multi-layered flexible diaphragm of the diaphragm coupling, processed using a combination of precision stamping and laser cutting, achieves a thickness tolerance controlled within ±0.005mm, ensuring uniform deformation characteristics during torque transmission. This machining precision ensures that the angular transmission error during forward and reverse switching is ≤±0.05°, fully meeting the requirements of precision positioning systems.

3. CNC machining of couplings enables integrated molding of complex internal structures, breaking through traditional design limitations.

Modern servo couplings often integrate multiple functions such as torque limiting mechanisms, angle compensation structures, and condition monitoring cavities. CNC machining can create complex structures such as helical compensation grooves, overload protection cams, and sensor mounting positions within a coupling with a diameter of 80mm, achieving a high degree of multi-functional integration. This integrated design not only improves structural rigidity but also perfectly integrates axial, radial, and angular compensation functions.

4. CNC machining of couplings utilizes special surface treatment technology to enhance overall performance.

The surface of the coupling, treated with hard anodizing, exhibits 3-5 times greater wear resistance. A special surface texture design allows for lubricant storage, enabling long-term maintenance-free operation. In cleanrooms or vacuum environments, couplings employing special coating technologies fully meet the specific requirements of semiconductor equipment applications.

5. CNC-machined couplings integrate intelligent monitoring functions to promote predictive maintenance.

Miniature sensor cavities integrated into couplings through CNC precision machining can accommodate miniature sensors for temperature, vibration, torque, etc. These sensors monitor operating status in real time and transmit data to a monitoring center via IoT technology, enabling predictive maintenance of the transmission system.

In the precision joints of industrial robots and at the spindle connections of high-performance CNC machine tools, CNC-machined aluminum couplings, with their superior lightweight characteristics, precise transmission accuracy, and intelligent monitoring capabilities, are becoming core technology components of modern high-precision transmission systems. These ingenious aluminum connectors are not only the physical bridge for power transmission but also a key guarantee for the precise control and efficient operation of intelligent transmission systems, representing the latest achievements in transmission technology towards lightweighting and intelligence.

Company Profile

    We are a manufacturer integrating industry and trade. We have more than 20 years of experience in production technology. We are located in Dongguan City, Guangdong Province, China. We have advanced high-end professional production and processing technology, and are committed to innovative R&D and production. After years of  market tempering and exploration, it has high-quality   technical management personnel, experienced designers, R&D personnel and a   perfect company management system cnc precision.

5-axis CNC workshop

         Our factory has a plant area of about 2,000 square meters and masters core processing technologies. It has high-end precision production equipment cnc precision: CNC lathes, 5-axis CNC, 4-axis CNC, stamping equipment, die-casting equipment, etc. 2.5-dimensional detection equipment ​

two-dimensional testing

cnc precision surface treatment

          For surface treatment, our suppliers have been working with us for many years. They have rich experience and are familiar with all the quality requirements of each other. The quality is stable and more guaranteed. Such as: heat treatment, spray painting, powder coating, blackening, silver/gold plating, electrolytic polishing, nitriding, phosphating, nickel/zinc/chromium/TiCN plating, anodizing, polishing, passivation, sandblasting, galvanizing, heat treatment , hardening, laser marking, etc. according to customer requirements. Aluminum alloy surface oxidation

Product Packaging

Packaging Details

1. Commercial packaging: 1pc/plastic bag + color box +carton + pallet;
2. Industrial packaging: (1). plastic tube + carton + pallet; (2). plastic bag + kraft paper + carton + pallet;
3. According to the requirement of customer.

FAQ

Q1: Where can I get product & price information?

A1: Send us an inquiry e-mail, we will contact you once we received your mail.

Q2: How long will I get the sample?

A2: Depends on your specific items, within 3-7 days generally.

Q3: What kinds of information do you need for a quote?

A3: Kindly please provide the product drawings in PDF, if provide in STEP or IGS will be better.

Q4: What are the payment terms?

A4: We accept 50% as a payment deposit, when the goods are prepared, we shoot photos or videos for your check, and then you can pay the balance. For small quantities, we accept Paypal, the commission will be added to the order. For big amounts, T/T is preferred.

Q5: How to deliver the goods?

A5: We deliver the products by courier company.

Q6: Are you a trading company or factory?

A6: We are factory direct with 17 experienced engineers and more than 50 employees as well approximate 3,000m2 workshop area.

Q7: What shall we do if we don't have drawings?

A7: Please send your sample to our factory, then we can copy and provide you better solutions. If send us pictures or drafts with dimensions(Length, Height, Width), CAD or 3D file will be made for you.

Q8: Can we get some samples before mass production?

A8: Absolutely yes.

Q9: Will my drawings be safe after sending them to you?
