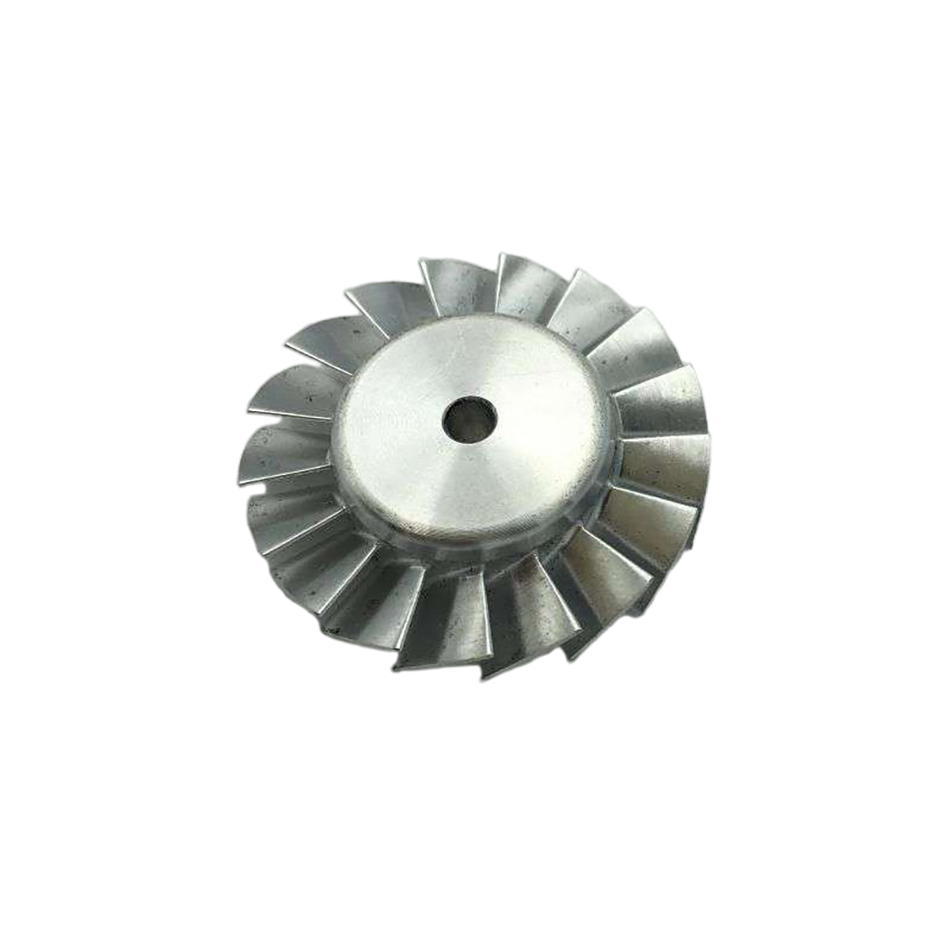

Custom aluminum impeller Trustworthy CNC machining CNC Machining Components

Core Advantages and Technical Features of CNC-Machined Custom Aluminum Impellers

I. Advantages of CNC-Machined Custom Aluminum Impellers

Through computational fluid dynamics-aided design, impeller geometry parameters can be customized to meet specific medium viscosity, density, and flow rate requirements. Key parameters such as blade angle, thickness, and inlet edge shape are designed entirely on demand.

II. Outstanding Performance Balancing Capability at Multiple Operating Points

Based on the actual operating range, by optimizing the blade profile and outlet angle, the impeller achieves maximum efficiency at rated points while also maintaining performance under partial loads.

Custom aluminum impeller Trustworthy CNC machining CNC Machining Components

III. Precise Realization of Complex Three-Dimensional Surfaces

1. Demonstrating Technical Strength in Machining Complex Curved Surfaces of Customized Impellers.

Utilizing five-axis CNC technology, the three-dimensional twisted surface of the blades can be precisely formed in one operation, with a blade profile contour error ≤0.03mm and a blade thickness tolerance ±0.02mm. For custom centrifugal impellers used in micro gas turbines, this precision surface enables a compression efficiency of 85%, a 5 percentage point improvement over conventional designs.

2. Precise Machining of Long and Short Blade Structures.

Based on load distribution requirements, short blades are custom-designed between the main blades. The position and angle of these short blades are precisely controlled for optimal flow splitting.

3. Precise Implementation of Blade Leading Edge Shaping.

Based on fluid inlet conditions, the blade leading edge shape is customized with a leading edge radius accuracy of ±0.01mm. For custom fan impellers used in aero engines, optimized leading edge shape improves inlet distortion tolerance by 30%.

III. On-Demand Selection of Material Properties

1. Flexible selection of aluminum alloy grades based on application environment. 7075-T6 is selected for high strength requirements, while 6061-T6 or cast aluminum alloys are selected for good corrosion resistance.

2. Precise matching of heat treatment states. Different heat treatment states such as T4, T6, and T8 are selected based on strength requirements, and precision machining maintains the required mechanical properties.

IV. Perfect Balance Between Lightweight Design and Rotor Dynamics

The low-density characteristics of aluminum alloys are fully utilized through custom design. While meeting strength requirements, weight reduction and moment of inertia are achieved through topology optimization.

Controllable balance accuracy. Custom designs incorporate balance correction margins, achieving a dynamic balance grade of G1.0 after machining. Custom impellers for precision centrifuges exhibit an imbalance of less than 0.1 g·mm/kg and an operating vibration value below 1.0 mm/s.

V. Custom Breakthroughs for Special Applications

Customized Microfluidic Equipment: Utilizing micromachining technology, custom-designed micro impellers with diameters of 10-50 mm, blade thicknesses of 0.1-0.3 mm, and an accuracy of ±0.005 mm are produced. Micropump impellers for microfluidic chips offer precise flow control, suitable for biochip analysis.

Customized High-Temperature Media Applications: Heat-resistant aluminum alloys are selected, and custom-designed impellers with cooling structures are used, enabling operating temperatures up to 200℃. Custom-designed impellers for hot oil circulating pumps maintain stable efficiency and do not deform during long-term operation at high temperatures.

Customized Impellers for Corrosive Media: Special aluminum alloys and surface treatments are selected based on the characteristics of the media to create corrosion-resistant impellers.

VI. Quality Control and Performance Verification

Full-process digital quality control. The online measurement system inspects key dimensions for each machined impeller, using a coordinate measuring machine (CMM) to measure the blade profile and ensure consistency with the design model. Custom impellers come with a complete inspection report, with a profile error of <0.02mm.

Performance testing services are also provided. Aerodynamic or hydraulic performance tests can be conducted to verify the customization effect. For custom wind turbine impellers, performance test comparison data is provided, making efficiency improvements quantifiable and visible.

CNC machining technology is completely redefining the manufacturing model and fluid performance of custom aluminum impellers. From micro-devices to large units, from standard operating conditions to special media, CNC-machined custom aluminum impellers, with their precise fluid matching, complex profile realization, and rapid response capabilities, have become a core means of optimizing fluid machinery performance.

Company Profile

    We are a manufacturer integrating industry and trade. We have more than 20 years of experience in production technology. We are located in Dongguan City, Guangdong Province, China. We have advanced high-end professional production and processing technology, and are committed to innovative R&D and production. After years of  market tempering and exploration, it has high-quality   technical management personnel, experienced designers, R&D personnel and a   perfect company management system cnc precision.

5-axis CNC workshop

         Our factory has a plant area of about 2,000 square meters and masters core processing technologies. It has high-end precision production equipment cnc precision: CNC lathes, 5-axis CNC, 4-axis CNC, stamping equipment, die-casting equipment, etc. 2.5-dimensional detection equipment ​

two-dimensional testing

cnc precision surface treatment

          For surface treatment, our suppliers have been working with us for many years. They have rich experience and are familiar with all the quality requirements of each other. The quality is stable and more guaranteed. Such as: heat treatment, spray painting, powder coating, blackening, silver/gold plating, electrolytic polishing, nitriding, phosphating, nickel/zinc/chromium/TiCN plating, anodizing, polishing, passivation, sandblasting, galvanizing, heat treatment , hardening, laser marking, etc. according to customer requirements. Aluminum alloy surface oxidation

Product Packaging

Packaging Details

1. Commercial packaging: 1pc/plastic bag + color box +carton + pallet;
2. Industrial packaging: (1). plastic tube + carton + pallet; (2). plastic bag + kraft paper + carton + pallet;
3. According to the requirement of customer.

FAQ

Q1: Where can I get product & price information?

A1: Send us an inquiry e-mail, we will contact you once we received your mail.

Q2: How long will I get the sample?

A2: Depends on your specific items, within 3-7 days generally.

Q3: What kinds of information do you need for a quote?

A3: Kindly please provide the product drawings in PDF, if provide in STEP or IGS will be better.

Q4: What are the payment terms?

A4: We accept 50% as a payment deposit, when the goods are prepared, we shoot photos or videos for your check, and then you can pay the balance. For small quantities, we accept Paypal, the commission will be added to the order. For big amounts, T/T is preferred.

Q5: How to deliver the goods?

A5: We deliver the products by courier company.

Q6: Are you a trading company or factory?

A6: We are factory direct with 17 experienced engineers and more than 50 employees as well approximate 3,000m2 workshop area.

Q7: What shall we do if we don't have drawings?

A7: Please send your sample to our factory, then we can copy and provide you better solutions. If send us pictures or drafts with dimensions(Length, Height, Width), CAD or 3D file will be made for you.

Q8: Can we get some samples before mass production?

A8: Absolutely yes.

Q9: Will my drawings be safe after sending them to you?
