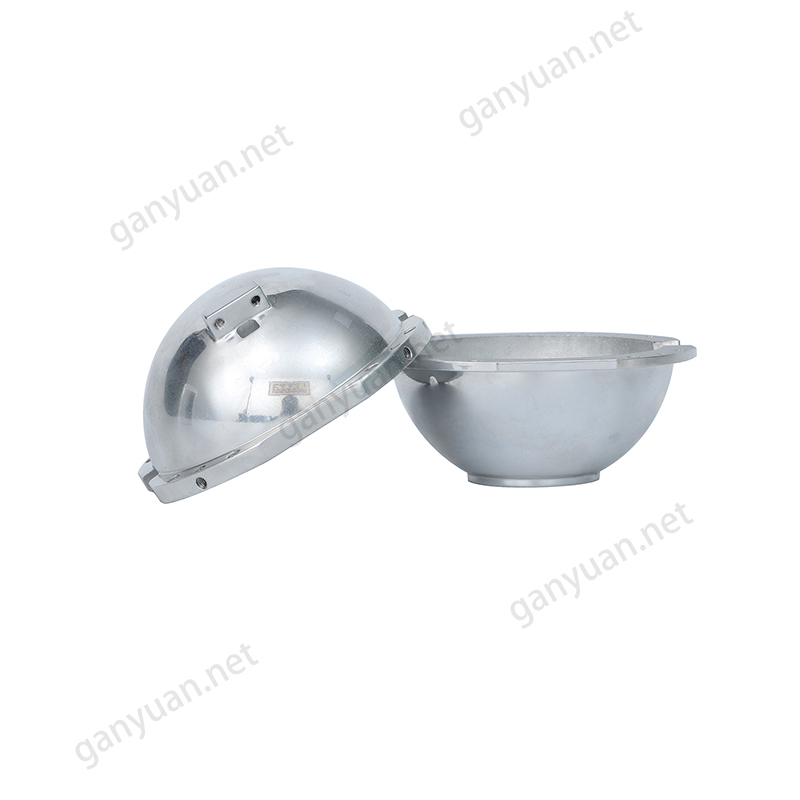

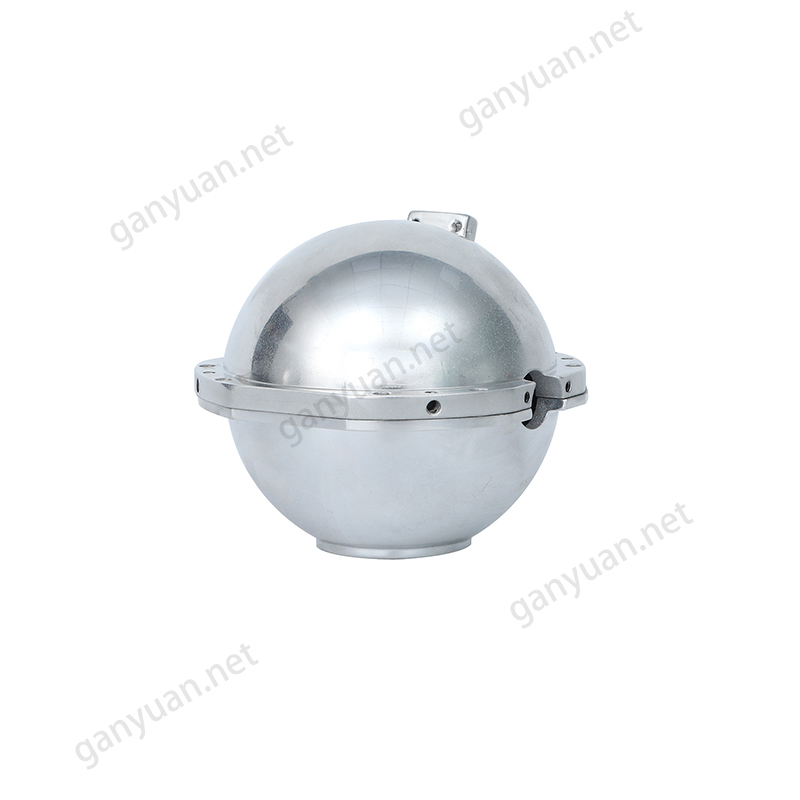

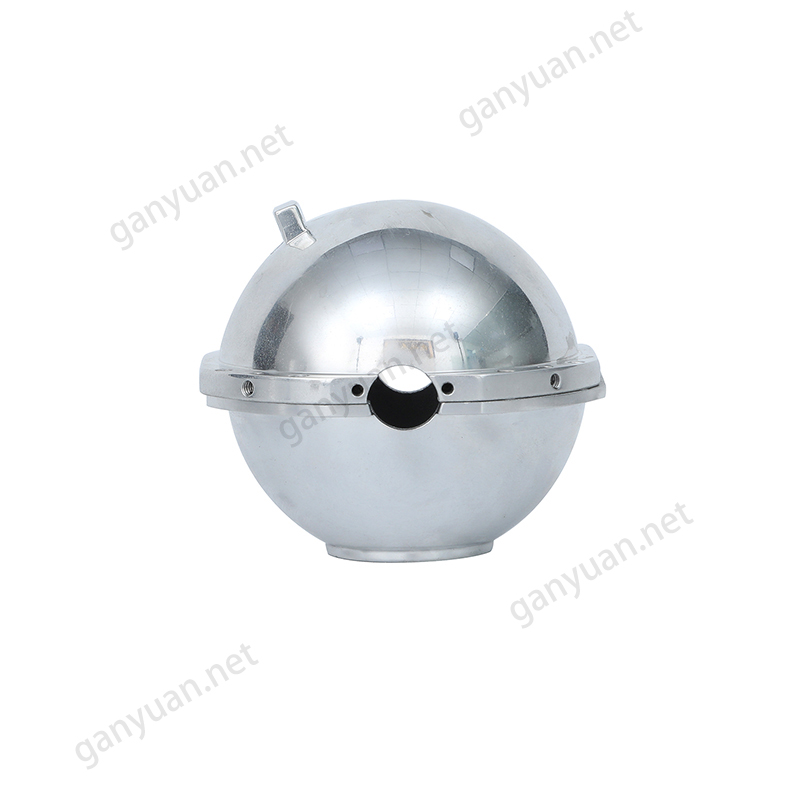

High-precision aluminum ball seat 6061 Trusted CNC machined precision parts

In modern hydraulic systems, precision valves, and high-performance connectors, aluminum ball seats are key components controlling fluid flow and direction. Their geometric accuracy, surface quality, and sealing reliability directly determine the overall system performance and lifespan. Aluminum alloys, with their excellent lightweight properties, good thermal conductivity, and outstanding specific strength, are the preferred material for ball seats. However, their relatively softness and susceptibility to machining deformation present manufacturing challenges. CNC machining, with its digital, multi-axis precision machining capabilities, has become a key technology for overcoming these challenges and achieving high-performance aluminum ball seat manufacturing, endowing them with superior quality compared to traditional processes.

High-precision aluminum ball seat 6061 Trusted CNC machined precision parts

I. Achieving High-Precision Spherical Cavities and Complex Flow Channels

1. High-Precision Spherical Machining: CNC multi-axis machining centers, through precise numerical control programming and multi-axis linkage, can use forming tools or complex path interpolation with ball end mills to machine precision spherical cavities with extremely small tolerances within the aluminum material. Their sphericity and surface roughness (reaching Ra 0.4μm or even lower) far exceed traditional processes, providing a near-perfect sealing foundation for ball valves.

2) Complex Integrated Flow Channel Integration: Modern ball joints often require the integration of inlet and outlet flow channels in multiple directions, mounting threads, and sealing grooves. CNC machining can mill all these complex features from a single solid aluminum billet in one or a few setups, including precise cleaning of flow channel intersections. This integrated manufacturing completely eliminates the leakage risks and flow channel deformation associated with welding or assembling multiple parts, ensuring the fluid dynamics design performance.

II. Superior Handling of Aluminum Alloy Machining Characteristics, Ensuring Dimensional Stability and Perfect Surface Finish

1) Aluminum alloys are relatively soft, making them prone to tool sticking, burrs, and deformation due to cutting forces during machining, especially when machining thin walls or complex features.

2) Optimized Cutting Strategy: Given the characteristics of aluminum, CNC programming can employ a high-speed, moderate-feed strategy, using sharp, dedicated aluminum cutting tools.

3) Controlled Deformation, Guaranteed Precision: Through a step-by-step machining strategy (roughing-semi-finishing-finishing), internal material stress is gradually released, and the stability of the high-rigidity CNC machine tool is utilized to stably control the tolerances of critical dimensions within the micrometer level. This is crucial for ensuring consistent switching torque and long-term sealing performance of ball valves.

4) Directly Obtaining High-Quality Sealing Surfaces: CNC machining directly achieves a mirror-like finish on the ball seat sealing area (typically a spherical or conical surface). It also provides a perfect base for subsequent surface strengthening treatments such as hard anodizing, further enhancing its wear and corrosion resistance.

III. Supporting Lightweight and High-Strength Design, Optimizing Performance

1) In weight-sensitive fields such as aerospace and new energy vehicles, lightweight ball seats are crucial. CNC, as a subtractive manufacturing process, supports performance-based topology optimization design.

2) Precise Lightweight Machining: While ensuring the strength of key parts of the ball seat (such as the sealing surface and threaded connections), CNC machining can precisely hollow out non-load-bearing areas, achieving significant weight reduction while maintaining overall structural rigidity.

3) Maximizing Material Performance: By selecting high-strength aluminum alloys (such as 7075-T6) and combining them with precision CNC machining, ball seats with an excellent strength-to-weight ratio can be manufactured to meet the needs of high-pressure or high-dynamic applications. IV. Providing Flexible and Efficient Manufacturing Solutions and Quality Assurance

1) Whether for mass production of standard parts or small-batch trial production of non-standard customized parts, CNC machining can provide the optimal solution.

2) High-efficiency batch consistency: CNC digital production ensures high consistency in the dimensions and quality of mass-produced products, which is the foundation for automated assembly and a reliable supply chain.

3) Agile customization and prototyping: For ball joints with special specifications or in the R&D stage, no mold investment is required; production can be achieved quickly simply by modifying the program, greatly shortening the R&D cycle and reducing the cost of innovation trial and error.

4) Full-process traceability: The digital manufacturing process allows the processing parameters of each part to be recorded and traced, meeting the quality management standards of aerospace and other high-requirement industries.

Company Profile

    We are a manufacturer integrating industry and trade. We have more than 20 years of experience in production technology. We are located in Dongguan City, Guangdong Province, China. We have advanced high-end professional production and processing technology, and are committed to innovative R&D and production. After years of  market tempering and exploration, it has high-quality   technical management personnel, experienced designers, R&D personnel and a   perfect company management system cnc precision.

5-axis CNC workshop

         Our factory has a plant area of about 2,000 square meters and masters core processing technologies. It has high-end precision production equipment cnc precision: CNC lathes, 5-axis CNC, 4-axis CNC, stamping equipment, die-casting equipment, etc. 2.5-dimensional detection equipment ​

two-dimensional testing

cnc precision surface treatment

          For surface treatment, our suppliers have been working with us for many years. They have rich experience and are familiar with all the quality requirements of each other. The quality is stable and more guaranteed. Such as: heat treatment, spray painting, powder coating, blackening, silver/gold plating, electrolytic polishing, nitriding, phosphating, nickel/zinc/chromium/TiCN plating, anodizing, polishing, passivation, sandblasting, galvanizing, heat treatment , hardening, laser marking, etc. according to customer requirements. Aluminum alloy surface oxidation

Product Packaging

Packaging Details

1. Commercial packaging: 1pc/plastic bag + color box +carton + pallet;
2. Industrial packaging: (1). plastic tube + carton + pallet; (2). plastic bag + kraft paper + carton + pallet;
3. According to the requirement of customer.

FAQ

Q1: Where can I get product & price information?

A1: Send us an inquiry e-mail, we will contact you once we received your mail.

Q2: How long will I get the sample?

A2: Depends on your specific items, within 3-7 days generally.

Q3: What kinds of information do you need for a quote?

A3: Kindly please provide the product drawings in PDF, if provide in STEP or IGS will be better.

Q4: What are the payment terms?

A4: We accept 50% as a payment deposit, when the goods are prepared, we shoot photos or videos for your check, and then you can pay the balance. For small quantities, we accept Paypal, the commission will be added to the order. For big amounts, T/T is preferred.

Q5: How to deliver the goods?

A5: We deliver the products by courier company.

Q6: Are you a trading company or factory?

A6: We are factory direct with 17 experienced engineers and more than 50 employees as well approximate 3,000m2 workshop area.

Q7: What shall we do if we don't have drawings?

A7: Please send your sample to our factory, then we can copy and provide you better solutions. If send us pictures or drafts with dimensions(Length, Height, Width), CAD or 3D file will be made for you.

Q8: Can we get some samples before mass production?

A8: Absolutely yes.

Q9: Will my drawings be safe after sending them to you?
