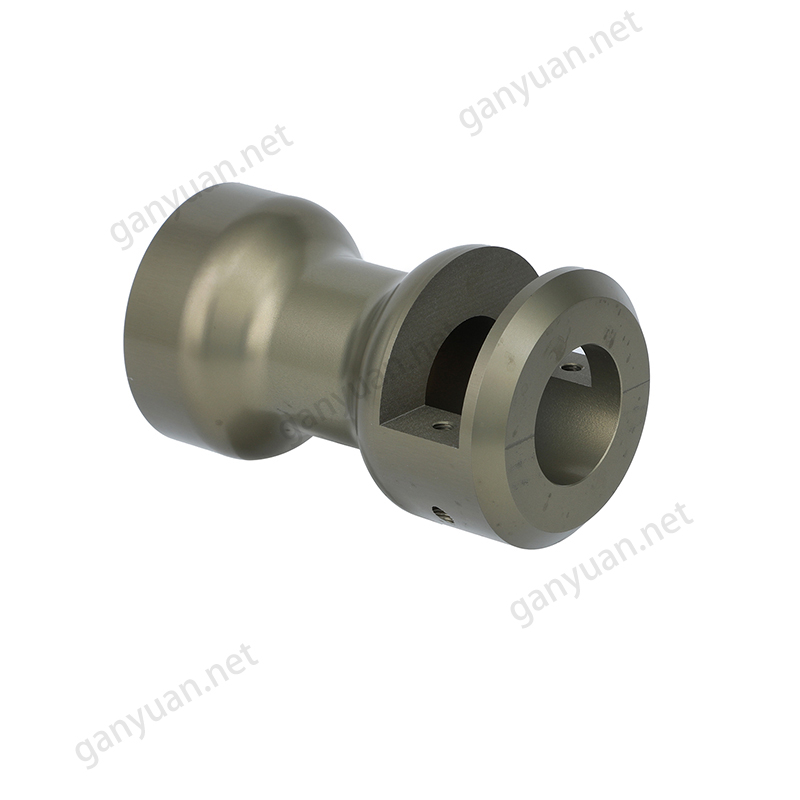

Trustworthy High-strength aluminum coupling 6061-T6 CNC customized transmission connection component

We specialize in one-stop manufacturing, from aluminum materials to precision transmission components. Leveraging advanced multi-axis CNC equipment and dynamic balancing processes, we efficiently transform high-strength aluminum alloys into compact, high-torque, and precisely aligned aluminum couplings to meet your core needs for high-speed, low-inertia connections in precision transmission systems.

CNC-Machinered Aluminum Coupling Product Description

We select high-strength aluminum alloys such as 7075 and 6061-T6, and professionally manufacture couplings for servo motors, stepper motors, spindles, and other precision rotating mechanisms through precision CNC milling and turning. Aluminum alloy is an ideal material for achieving lightweight and low rotational inertia. Through multi-axis CNC machining, we ensure extremely high concentricity and perpendicularity of the coupling's mounting holes, flange faces, and diaphragm mounting positions. Combining scientific material heat treatment and professional surface treatment, we achieve the optimal balance between torsional stiffness and fatigue resistance in our couplings, making them key performance components in the drive chains of high-precision automated equipment, CNC machine tools, robots, and testing instruments.

Trustworthy High-strength aluminum coupling 6061-T6 CNC customized transmission connection component

Our precision-manufactured aluminum couplings are dedicated to solving three core problems in transmission systems. What are these three key aspects?

1. Extremely high alignment accuracy and stable torque transmission

CNC machining ensures extremely high precision of the mounting surfaces, effectively compensating for minute shaft alignment errors while guaranteeing smooth and consistent torque transmission. This significantly reduces vibration during high-speed operation, protects the bearings at the motor and load ends, and improves the overall system's operational stability and lifespan.

2. Extremely low moment of inertia and rapid response

The lightweight nature of aluminum alloy significantly reduces the coupling's moment of inertia. This reduces the system's inertial load, making start-stop and reversing operations faster, and significantly improving the dynamic response speed and positioning accuracy of the servo system.

3. CNC-machined aluminum couplings: Professional craftsmanship ensures dynamic performance

We employ a closed-loop manufacturing process, from dynamic stress analysis and multi-axis collaborative machining to 100% dynamic balancing testing. Therefore, during production, we perform rigorous dynamic balancing on every coupling to ensure smooth operation within the operating speed range. Meanwhile, we pay close attention to the press-fit quality of elastomers and the reliability of critical thread connections.

We are committed to becoming a trusted core component supplier in the fields of automation and precision transmission through our deep knowledge of transmission design, processing technology tailored to high-dynamic applications, and rigorous process verification. From selection consultation and dynamic characteristic analysis to sample testing, small-batch customization, and large-scale supply, we provide professional, reliable, and high-performance manufacturing solutions throughout the entire process, helping your precision equipment achieve faster, smoother, and more reliable superior transmission performance.

Company Profile

    We are a manufacturer integrating industry and trade. We have more than 20 years of experience in production technology. We are located in Dongguan City, Guangdong Province, China. We have advanced high-end professional production and processing technology, and are committed to innovative R&D and production. After years of  market tempering and exploration, it has high-quality   technical management personnel, experienced designers, R&D personnel and a   perfect company management system cnc precision.

5-axis CNC workshop

         Our factory has a plant area of about 2,000 square meters and masters core processing technologies. It has high-end precision production equipment cnc precision: CNC lathes, 5-axis CNC, 4-axis CNC, stamping equipment, die-casting equipment, etc. 2.5-dimensional detection equipment ​

two-dimensional testing

cnc precision surface treatment

          For surface treatment, our suppliers have been working with us for many years. They have rich experience and are familiar with all the quality requirements of each other. The quality is stable and more guaranteed. Such as: heat treatment, spray painting, powder coating, blackening, silver/gold plating, electrolytic polishing, nitriding, phosphating, nickel/zinc/chromium/TiCN plating, anodizing, polishing, passivation, sandblasting, galvanizing, heat treatment , hardening, laser marking, etc. according to customer requirements. Aluminum alloy surface oxidation

Product Packaging

Packaging Details

1. Commercial packaging: 1pc/plastic bag + color box +carton + pallet;
2. Industrial packaging: (1). plastic tube + carton + pallet; (2). plastic bag + kraft paper + carton + pallet;
3. According to the requirement of customer.

FAQ

Q1: Where can I get product & price information?

A1: Send us an inquiry e-mail, we will contact you once we received your mail.

Q2: How long will I get the sample?

A2: Depends on your specific items, within 3-7 days generally.

Q3: What kinds of information do you need for a quote?

A3: Kindly please provide the product drawings in PDF, if provide in STEP or IGS will be better.

Q4: What are the payment terms?

A4: We accept 50% as a payment deposit, when the goods are prepared, we shoot photos or videos for your check, and then you can pay the balance. For small quantities, we accept Paypal, the commission will be added to the order. For big amounts, T/T is preferred.

Q5: How to deliver the goods?

A5: We deliver the products by courier company.

Q6: Are you a trading company or factory?

A6: We are factory direct with 17 experienced engineers and more than 50 employees as well approximate 3,000m2 workshop area.

Q7: What shall we do if we don't have drawings?

A7: Please send your sample to our factory, then we can copy and provide you better solutions. If send us pictures or drafts with dimensions(Length, Height, Width), CAD or 3D file will be made for you.

Q8: Can we get some samples before mass production?

A8: Absolutely yes.

Q9: Will my drawings be safe after sending them to you?
