Dongguan Ganyuan Hardware Technology Co., Ltd. specializes in customized precision CNC parts processing. We possess a complete CNC production system, equipped with CNC lathes, four-axis and five-axis machining centers, and milling-turning composite machines, enabling us to undertake the production of various complex structural parts. Leveraging mature processing experience and ISO quality management system certification, we provide one-stop service from drawing coordination and sample prototyping to mass production, strictly controlling every process to offer customers stable and reliable customized cylindrical jackets solutions, meeting the precision machinery support needs of different industries.
As a core component for shaft connections and sleeve mating, the choice of raw materials directly determines the service life of cylindrical jackets. We select high-quality stainless steel and aluminum alloys, which offer high strength, good wear resistance, and excellent deformation resistance. Before warehousing, raw materials undergo material testing to remove substandard impurities. Finished products possess excellent rust resistance, maintaining stable performance even under complex operating conditions such as pneumatic circuits and automated equipment, and are less prone to cracking and wear.

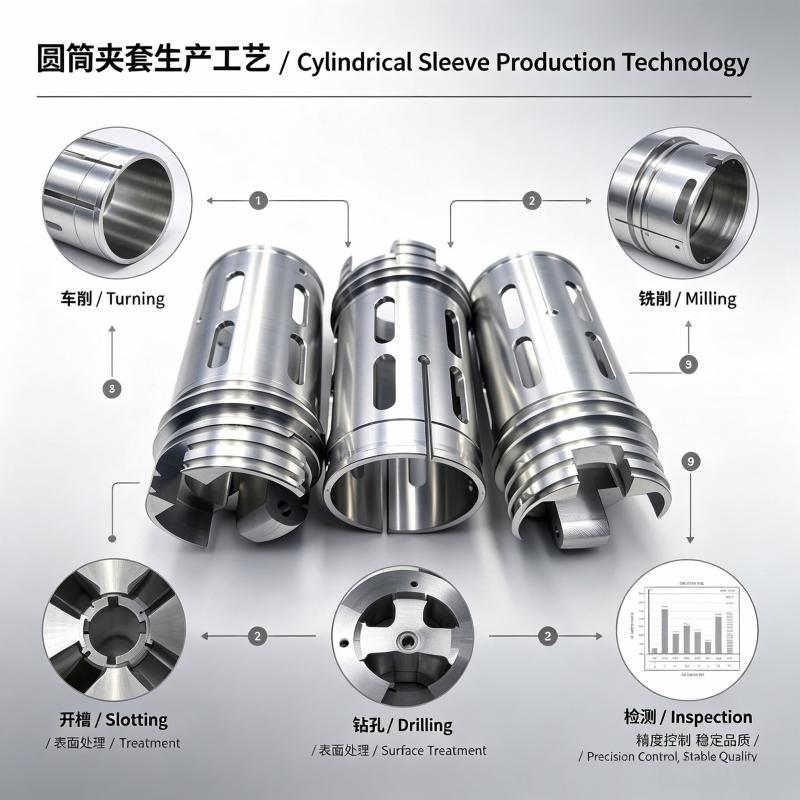

The Cylindrical Jackets is manufactured using multi-stage composite CNC machining, encompassing turning, milling, grooving, drilling, surface treatment, and finished product inspection. Leveraging the technological advantage of CNC machining positioning accuracy down to 0.001mm, integrated turning and milling processes precisely complete the opening of the cylinder body, the finishing of the inner hole, and the grooving of the outer contour. Multi-axis linkage technology shortens the machining cycle, ensures coaxiality of the inner and outer circles, a smooth, burr-free cylinder wall, and strong dimensional consistency, making it suitable for high-precision equipment assembly requirements.
Precision Cylindrical Jackets: Reliable Core Components for Industrial Equipment Connections
Precision Cylindrical Jackets are widely used in sleeve fits, shaft connections, and pneumatic circuit structures. They are easy to assemble and are important components of automated equipment, precision tooling, and transmission mechanisms. The cylindrical structure design enables stable locking and power transmission, making it suitable for various small and medium-sized precision machinery. Cylindrical Jackets with different inner diameters, grooving styles, and lengths can be customized according to customer drawings to meet the personalized customization needs of non-standard equipment.
Full-process inspection is implemented throughout the entire production process of the cylindrical sleeve, including sampling inspection of semi-finished products and full inspection of finished products. Professional testing equipment is used to verify dimensional tolerances, and test data is recorded to ensure that every product meets the tolerance requirements of the drawings. Based on the ISO9001 quality management system standard, a standardized quality inspection process has been established, verifying appearance, dimensions, and surface finish item by item to prevent unqualified products from leaving the factory and ensure consistent quality of batch products.

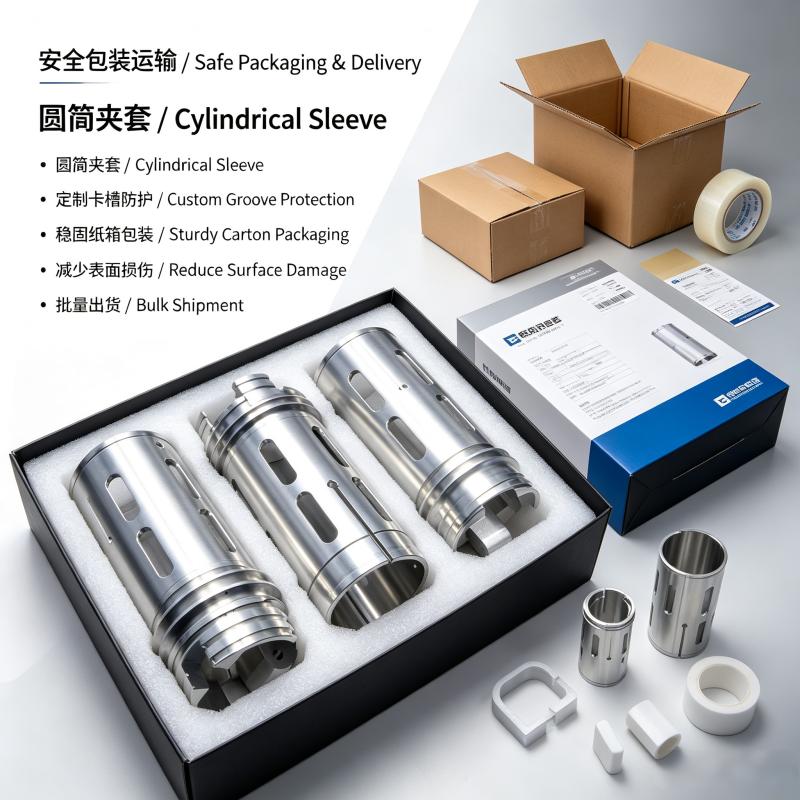

Finished Cylindrical Jackets adopt a customized protective solution, using foam lining for isolation, combined with rigid cardboard box packaging, effectively reducing surface scratches caused by transportation bumps. Product labels and quality inspection documents are included in the packaging, supporting bulk shipments. The robust packaging solution provides maximum protection for precision cylindrical components, ensuring that products arrive at the customer's hands intact, saving the customer time and effort.
Q1: Where can I get product & price information?
A1: Send us an inquiry e-mail, we will contact you once we received your mail.
Q2: How long will I get the sample?
A2: Depends on your specific items, within 3-7 days generally.
Q3: What kinds of information do you need for a quote?
A3: Kindly please provide the product drawings in PDF, if provide in STEP or IGS will be better.
Q4: What are the payment terms?
A4: We accept 50% as a payment deposit, when the goods are prepared, we shoot photos or videos for your check, and then you can pay the balance. For small quantities, we accept Paypal, the commission will be added to the order. For big amounts, T/T is preferred.
Q5: How to deliver the goods?
A5: We deliver the products by courier company.
Q6: Are you a trading company or factory?
A6: We are factory direct with 17 experienced engineers and more than 50 employees as well approximate 3,000m2 workshop area.
Q7: What shall we do if we don't have drawings?
A7: Please send your sample to our factory, then we can copy and provide you better solutions. If send us pictures or drafts with dimensions(Length, Height, Width), CAD or 3D file will be made for you.
Q8: Can we get some samples before mass production?
A8: Absolutely yes.
Q9: Will my drawings be safe after sending them to you?
Q10: Is it possible to know the operation status of my products without visiting your company?
A10: We will offer a detailed production schedule and send weekly reports with digital pictures and videos which show the machining progress.
