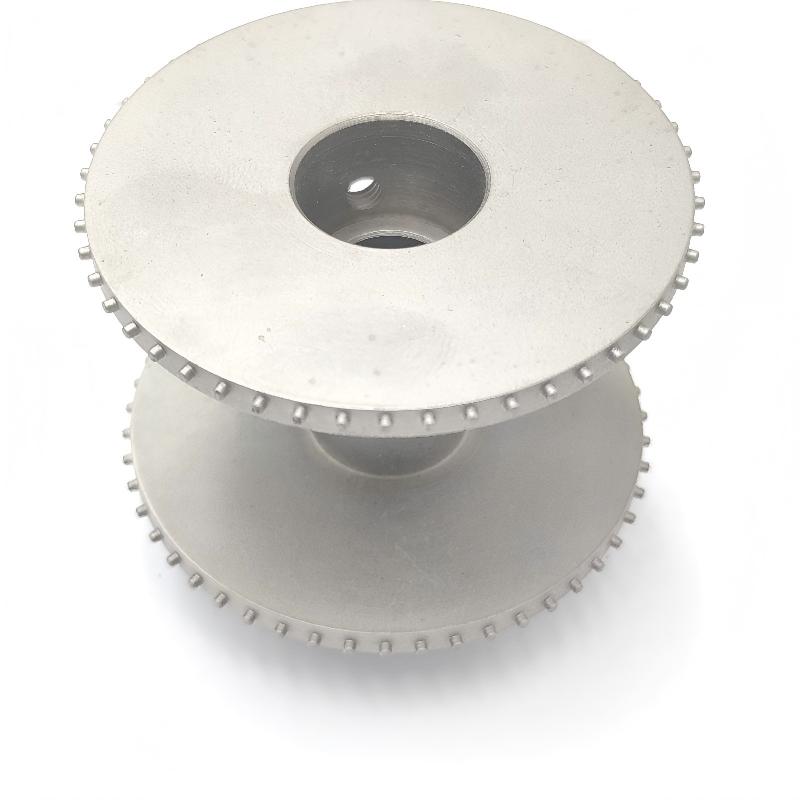

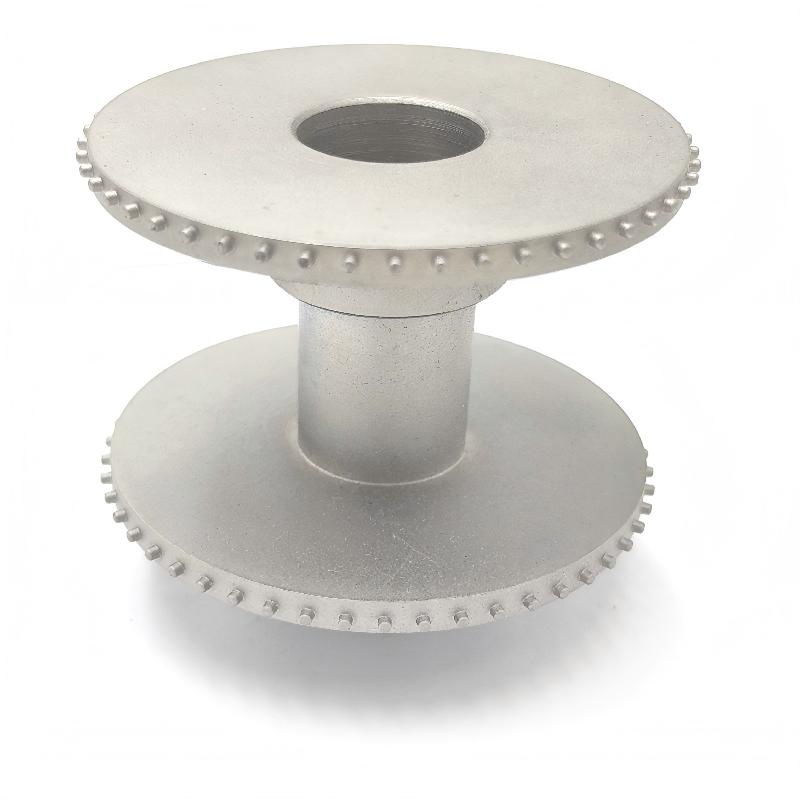

Precision double-row ratchet Trustworthy CNC machining and customization

For over two decades, Ganyuan Factory has been deeply involved in precision machining, specializing in the manufacture of various high-performance double-row ratchet wheels using advanced CNC machining technology. We are equipped with high-precision multi-axis CNC machine tools and advanced coordinate measuring machines to ensure that every double-row ratchet machined from metal blanks meets stringent dimensional accuracy and geometric tolerance requirements.

We focus on end-to-end precision machining services, dedicated to efficiently transforming high-quality metal blanks into structurally robust, precisely toothed double-row ratchet wheels, fully meeting the customized needs of mechanical transmission systems for precise locking and efficient torque transmission.

Precision double-row ratchet Trustworthy CNC machining and customization

I. CNC Machining of Double-Rack Ratchets: Integrating Precision Double Tooth Profiles, High Strength, and Smooth Transmission

We select high-quality alloy steel, stainless steel, and high-strength aluminum alloys, and professionally manufacture high-precision double-row ratchet wheels through CNC precision machining. These materials possess excellent strength, good machinability, and wear resistance. Through CNC machining and appropriate heat treatment and surface treatment processes, we have achieved a balance between precision double-row tooth profile forming, structural strength, and transmission smoothness, making it the ideal choice for manufacturing double-row ratchet components with high requirements for locking reliability, torque transmission efficiency, and long-term durability.

II. Our precision CNC-machined double-row ratchets possess the following superior characteristics:

Each double-row ratchet undergoes CNC precision machining to ensure precise double-row tooth profile, accurate tooth pitch, and reliable locking surfaces. Optimized structural design and strict tolerance control guarantee the synchronous meshing accuracy and transmission smoothness of the double-row ratchet during high-speed operation, effectively improving the overall efficiency and operational reliability of the mechanical transmission system.

IV. Precision Double-Roll Tooth Profile, High Strength, and Excellent Fatigue Resistance

By selecting high-strength alloy steel or stainless steel, CNC-machined double-row ratchets achieve precise double-row tooth profile profiles while withstanding long-term high-load, high-frequency reversing operations and impact loads. The synchronous meshing design of the double-row teeth significantly improves torque transmission capability.

V. CNC Machining of Double-Rack Ratchets: Professional Craftsmanship, Guaranteed Quality

We utilize multi-axis CNC machine tools and automated production lines to ensure that every double-row ratchet meets stringent tooth profile accuracy and assembly requirements. Through integrated CAD/CAM systems for machining simulation optimization, combined with professional stress relief, CNC precision milling, turning, and surface treatment processes, we achieve the optimal balance between precision double-row tooth forming, structural strength, and fatigue resistance.

VI. Technological Advantages and Value Commitment

We are committed to providing high-quality double-row ratchet solutions for the mechanical transmission industry through advanced material applications, CNC machining technology, and rigorous quality management. From material mechanics analysis and optimized double-row tooth structure design to CNC precision manufacturing and surface strengthening treatment, every step reflects our professional pursuit of performance and reliability, providing crucial support for long equipment lifespan, low failure rates, and stable and reliable operation.

Company Profile

    We are a manufacturer integrating industry and trade. We have more than 20 years of experience in production technology. We are located in Dongguan City, Guangdong Province, China. We have advanced high-end professional production and processing technology, and are committed to innovative R&D and production. After years of  market tempering and exploration, it has high-quality   technical management personnel, experienced designers, R&D personnel and a   perfect company management system cnc precision.

5-axis CNC workshop

         Our factory has a plant area of about 2,000 square meters and masters core processing technologies. It has high-end precision production equipment cnc precision: CNC lathes, 5-axis CNC, 4-axis CNC, stamping equipment, die-casting equipment, etc. 2.5-dimensional detection equipment ​

two-dimensional testing

cnc precision surface treatment

          For surface treatment, our suppliers have been working with us for many years. They have rich experience and are familiar with all the quality requirements of each other. The quality is stable and more guaranteed. Such as: heat treatment, spray painting, powder coating, blackening, silver/gold plating, electrolytic polishing, nitriding, phosphating, nickel/zinc/chromium/TiCN plating, anodizing, polishing, passivation, sandblasting, galvanizing, heat treatment , hardening, laser marking, etc. according to customer requirements. Aluminum alloy surface oxidation

Product Packaging

Packaging Details

1. Commercial packaging: 1pc/plastic bag + color box +carton + pallet;
2. Industrial packaging: (1). plastic tube + carton + pallet; (2). plastic bag + kraft paper + carton + pallet;
3. According to the requirement of customer.

FAQ

Q1: Where can I get product & price information?

A1: Send us an inquiry e-mail, we will contact you once we received your mail.

Q2: How long will I get the sample?

A2: Depends on your specific items, within 3-7 days generally.

Q3: What kinds of information do you need for a quote?

A3: Kindly please provide the product drawings in PDF, if provide in STEP or IGS will be better.

Q4: What are the payment terms?

A4: We accept 50% as a payment deposit, when the goods are prepared, we shoot photos or videos for your check, and then you can pay the balance. For small quantities, we accept Paypal, the commission will be added to the order. For big amounts, T/T is preferred.

Q5: How to deliver the goods?

A5: We deliver the products by courier company.

Q6: Are you a trading company or factory?

A6: We are factory direct with 17 experienced engineers and more than 50 employees as well approximate 3,000m2 workshop area.

Q7: What shall we do if we don't have drawings?

A7: Please send your sample to our factory, then we can copy and provide you better solutions. If send us pictures or drafts with dimensions(Length, Height, Width), CAD or 3D file will be made for you.

Q8: Can we get some samples before mass production?

A8: Absolutely yes.
