Trustworthy Professional 5axes Customized Needle wheel ratchet processing non-standard
enquiry- Specifications

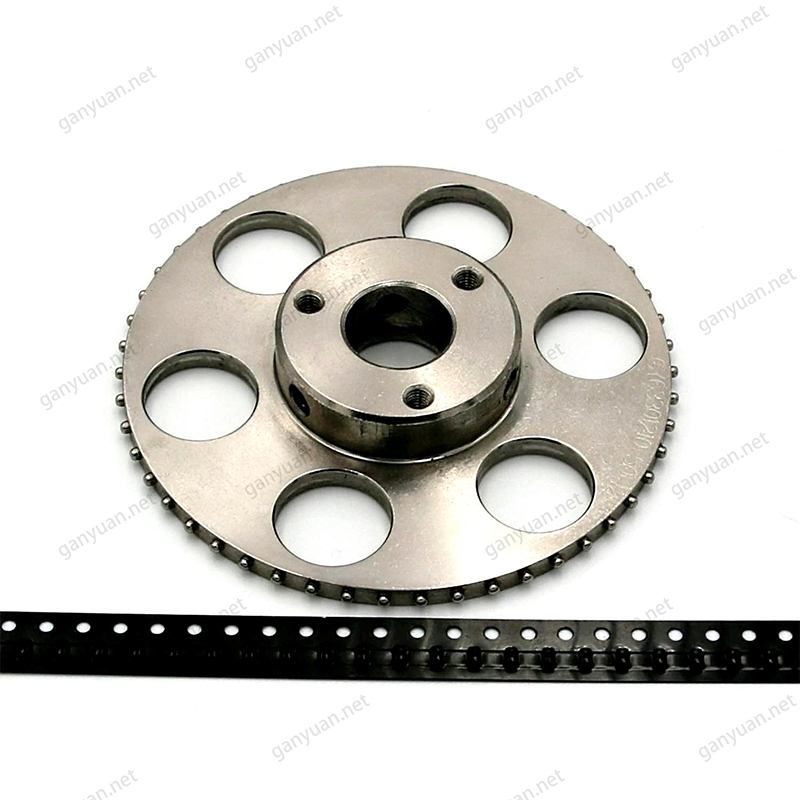

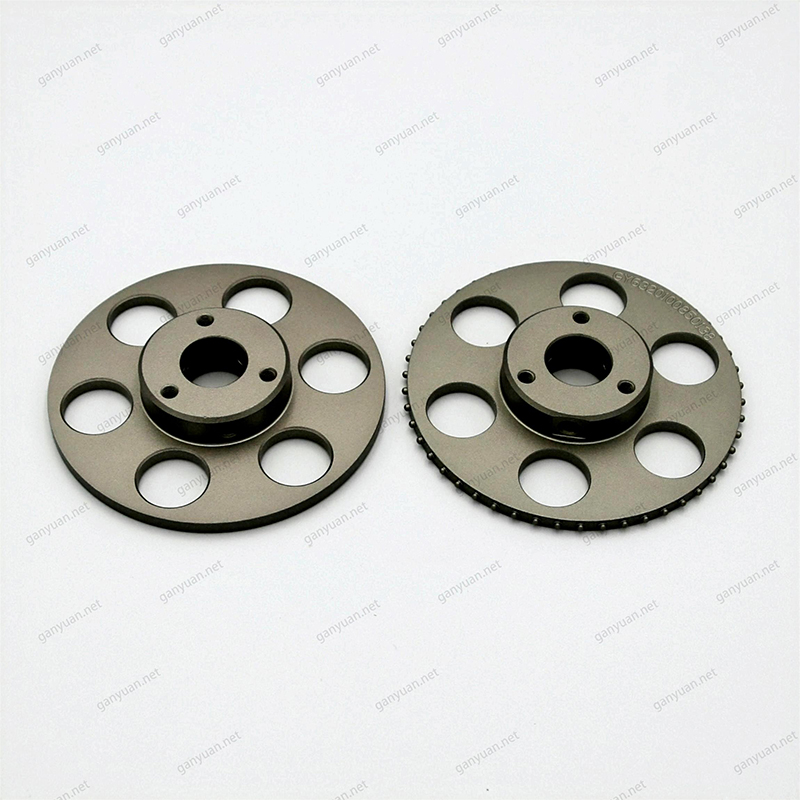

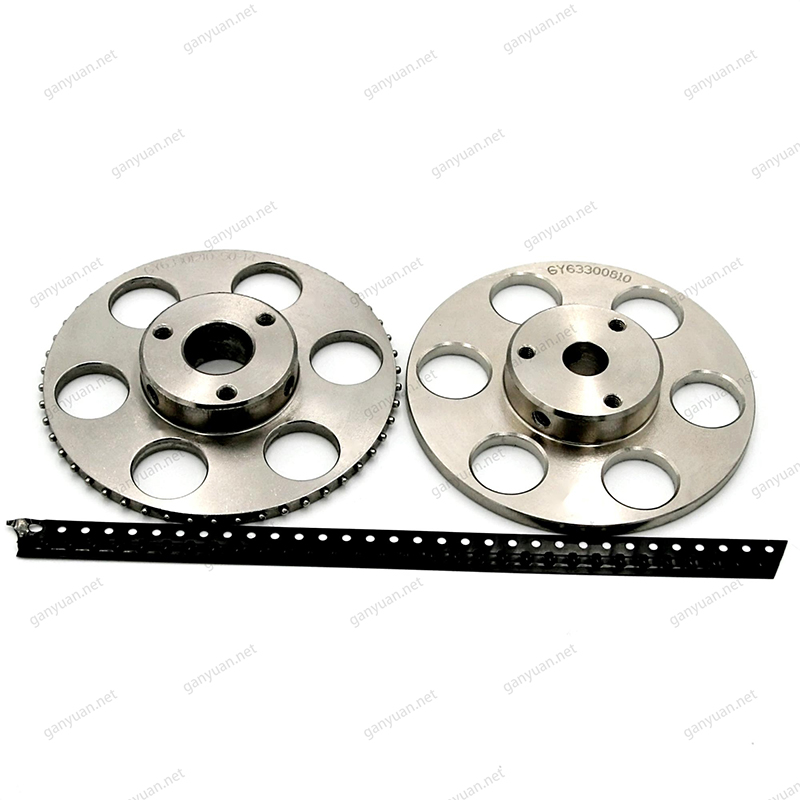

Our specialized needle wheel ratchet components are engineered for demanding mechanical systems requiring exceptional precision and durability. Utilizing advanced 5-axis CNC machining, we deliver high-volume production with uncompromising quality standards.Needle wheel ratchet
Product Description
| Production type | Custom production and processing | Material | Metal, non-metal, carbon steel, stainless steel, copper, aluminum alloy |
| Processing methods | CNC Trining Parts 5-axis CNC machining centers, grinding machines, wire cutting | Processing Equipment | CNC Trining Parts 5-axis CNC machining center, grinder, wire cutting,Needle wheel ratchet |
| Accuracy | ±0.02mm | Whether proofing | yes |
| Is it customized | yes | Proofing time | 7-15 days |
| OEM/ODM | OEM ODM CNC machining service | surface treatment | Electroplating, zinc plating, chrome plating, nickel plating, oxidation, hard oxidation |
| Origin | Dongguan, China | Quotations | FOB |
| Business Type: | Manufacturer/Factory & Trading Company | Main Products: | CNC parts; Machining parts;Custom precision machining |
| Management System Certification: | ISO 9001:2015 | Average Lead Time: | Peak Season Lead Time: within 15 workdays Off Season Lead Time: within 15 workdays |
Engineered for Unmatched Precision and Durability
At our state-of-the-art manufacturing facility, we produce needle wheel ratchets that redefine industry standards through:Needle wheel ratchet
-
Micro-precision tooth profiles with 0.005mm accuracy
-
Optimized load distribution for 2M+ cycle lifespan
-
Customizable engagement angles from 2° to 15°
-
Professional Customized processing Needle wheel ratchet non-standard Needle wheel ratchet
Specialized surface treatments for extreme environments
Advanced Technical Specifications
| Feature | Standard | Premium | Extreme |
|---|---|---|---|
| Material | 4140 Steel | 440C Stainless | Custom Alloy |
| Hardness | HRC 50-54 | HRC 58-62 | HRC 60-64 |
| Tolerance | ±0.01mm | ±0.005mm | ±0.002mm |
| Surface Finish | Ra 0.4 | Ra 0.2 | Ra 0.1 |
| Torque Capacity | 50Nm | 120Nm | 200Nm+ |
Why Our Needle Wheel Ratchets Excel
1. Precision Engineering
-
Parametric tooth design using FEA optimization
-
Zero-backlash engagement through thermal compensation
-
Dynamic balancing for >10,000 RPM operation
2. Advanced Manufacturing
-
Swiss-type CNC with 0.001mm positioning
-
Cryogenic treatment for stress relief
-
Ion vapor deposition coating options
-
100% CMM inspection with 3D surface mapping
3. Material Science
-
Maraging steel variants for aerospace applications
-
PVD-coated versions for food-grade requirements
-
Hybrid ceramic-composite options available
Industry-Specific Solutions
Medical Robotics
-
Gamma-ray sterilizable versions
-
MRI-compatible non-magnetic alloys
Aerospace Actuators
-
AMS2750-compliant heat treatment
-
FAA-approved traceability documentation
High-Performance Automotive
-
200°C continuous operation models
-
Vibration-dampened composite cores
Quality Assurance Protocol
-
Material Certification
-
Spectrometer verification
-
Grain structure analysis
-
Production Monitoring
-
Statistical process control charts
-
Tool wear compensation algorithms
-
Final Validation
-
72-hour endurance testing
-
Scanning electron microscope inspection
Customization Services
-
Prototype Development (10-day turnaround)
-
Small-Batch Production (MOQ 25 units)
-
Complete System Integration
-
Reverse Engineering of legacy components
Why Global Leaders Choose Us:
✓ 40% longer service life than industry average
✓ 0.0001" concentricity guarantees
✓ Custom heat treatment protocols
✓ On-site metallurgical lab
[Contact Our Engineering Team] for application-specific solutions and immediate quoting.
Precision Engineered in Dongguan • ISO 9001:2015 Certified • ITAR Registered
FAQ
Q1: What file formats do you accept for needle wheel ratchet quotes?
A1: Preferred formats: STEP, IGES, Parasolid. 2D drawings in PDF/DWG acceptable.
Q2: Can you produce miniature needle wheel ratchets (<10mm diameter)?
A2: Yes, our Swiss CNC machines specialize in micro-components down to 2mm.
Q3: What's your standard lead time for 500pcs order?
A3: Typically 12 working days including surface treatment.
Q4: Do you provide corrosion testing reports?
A4: Yes, salt spray testing reports available upon request.
Q5: How to deliver the goods?
A5: We deliver the products by courier company.
Q6: Are you a trading company or factory?
A6: We are factory direct with 17 experienced engineers and more than 50 employees as well approximate 3,000m2 workshop area.
Q7: What shall we do if we don't have drawings?
A7: Please send your sample to our factory, then we can copy and provide you better solutions. If send us pictures or drafts with dimensions(Length, Height, Width), CAD or 3D file will be made for you.
Q8: Can we get some samples before mass production?
A8: Absolutely yes.
Q9: Will my drawings be safe after sending them to you?
A9: Yes, we will keep them well and won't release them to the third party without your permission.
Q10: Is it possible to know the operation status of my products without visiting your company?
A10: We will offer a detailed production schedule and send weekly reports with digital pictures and videos which show the machining progress.
Q11: If you make poor quality goods, will you refund?
A11: In fact, we won't take risks to produce poor-quality products. Meanwhile, we manufacture good quality products till you are satisfied plastic machining.
