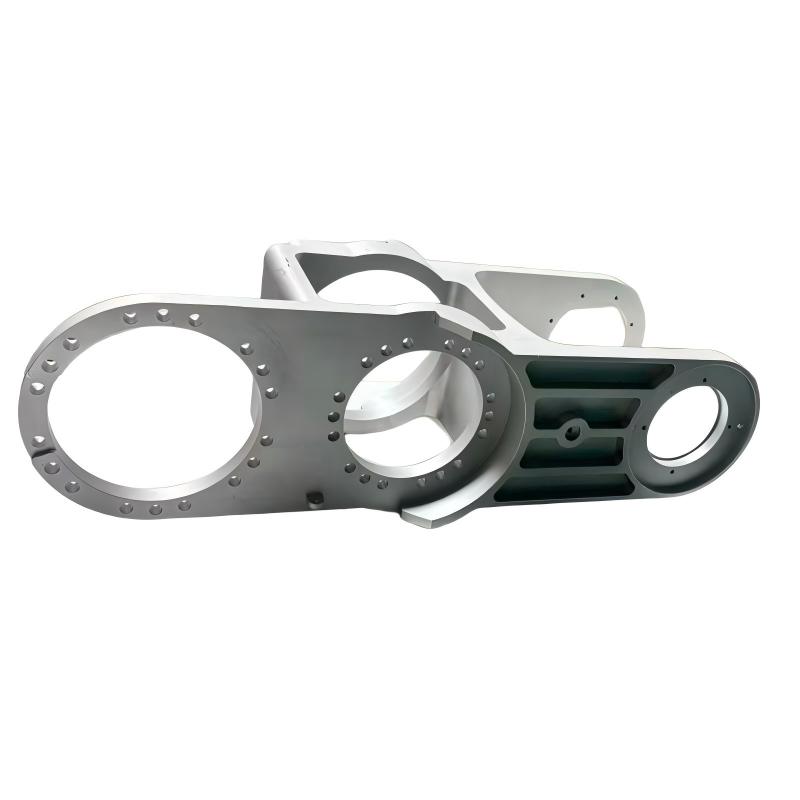

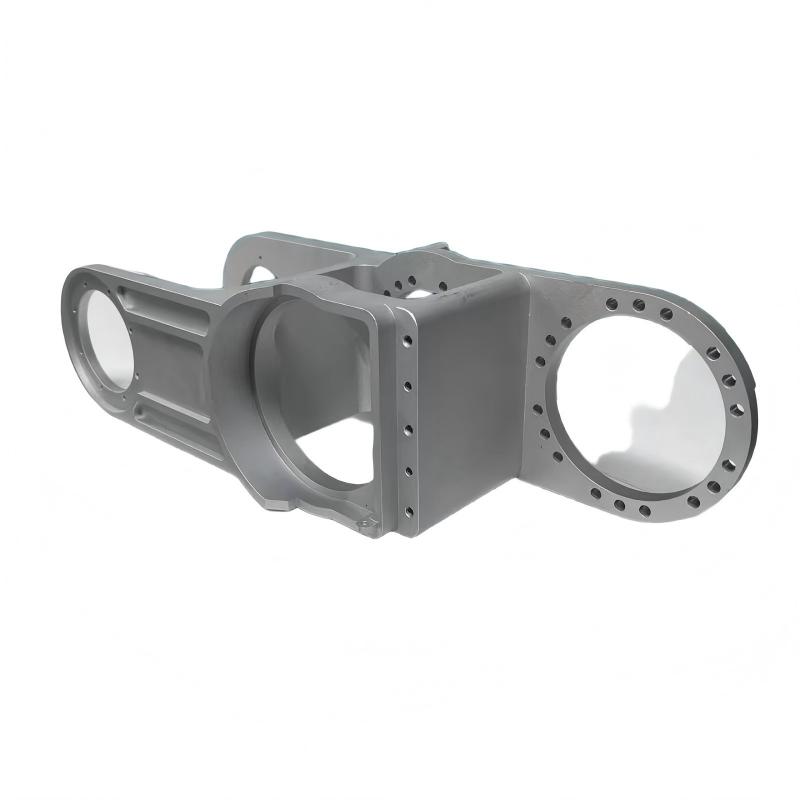

Non-standard parts machining Trustworthy custom-made from drawings mechanical equipment parts

We specialize in CNC lathe parts machining , dedicated to providing high-precision, high-efficiency, and highly consistent turning solutions for various rotating parts and complex bushings. Leveraging advanced multi-axis CNC lathes, mill-turn centers, and a professional process technology team, we ensure excellent dimensional accuracy, geometric tolerances, and surface finishes for everything from simple stepped shafts to complex irregular shapes, meeting the high standards of the automotive, hydraulic, transmission, and general machinery industries.

Non-standard parts machining custom-made from drawings, mechanical equipment parts

I. CNC Lathe Machining: The Core Manufacturing Process for parts machining

CNC lathe machining is the cornerstone of modern manufacturing for processing rotating parts. Through the coordinated rotation of a precision spindle and multi-axis cutting tools, it achieves efficient and precise shaping of cylindrical surfaces, conical surfaces, end faces, threads, grooves, and complex curved surfaces. Whether for mass-produced standard parts or small-batch customized parts, CNC turning provides stable machining quality and production efficiency, serving as a fundamental process for ensuring the reliability of key functions such as transmission, connection, and sealing.

II. Professional CNC Turning Service Provider

We provide comprehensive CNC turning services, covering the entire process from drawing analysis, process design, programming, machining to post-processing. We are proficient in the turning characteristics of various materials, from carbon steel, stainless steel, and aluminum alloys to copper alloys, titanium alloys, and engineering plastics, and can recommend the best materials and cutting solutions based on the functional requirements of the parts. Our technical team excels at solving turning challenges such as deformation of slender shafts, vibration of thin-walled parts, deep hole machining, and high-precision threading.

III. Comprehensive Turning Processes and Capabilities

1. Precision External/Internal Turning: High-precision dimensional and tolerance control.

2. End Facing and Grooving: Precision end facing turning and machining of various relief grooves and sealing grooves.

3. Thread Machining: Metric, imperial, trapezoidal, sawtooth, and other internal and external threads.

4. Complex Contour Turning: Completing complex machining of eccentric holes, planes, and radial contours through C-axis and Y-axis linkage.

5. Deep Hole Drilling and Boring: High-precision deep hole machining is achieved using a deep hole drilling system.

6. Turning-Milling Composite Machining: Multiple processes, including turning, milling, drilling, and tapping, are completed in a single setup, ensuring extremely high coaxiality and positional accuracy.

IV. Advanced CNC Turning Equipment System

We are equipped with multiple high-precision CNC lathes, including:

1. Multi-axis CNC Lathe: Equipped with a sub-spindle and back spindle, enabling dual-head automatic machining and reducing the number of setups.

2. Turning-Milling Composite Center: Integrates a powered cutter head and a milling spindle, enabling one-time forming of complex parts.

3. Swiss-type CNC Lathe: Excels at machining slender shaft parts, featuring high precision and high efficiency.

V. Quality Assurance for Turning Accuracy

We have established a dedicated quality control process for turning operations. In addition to conventional coordinate measuring machines (CMMs), we extensively utilize specialized inspection tools such as online measuring instruments, pneumatic gauges, thread gauges, and surface roughness testers to rapidly and accurately inspect key turning characteristics such as roundness, cylindricity, concentricity, runout, pitch, and surface quality. We ensure that every turned part not only conforms to the dimensions in the drawings but also meets assembly and functional performance requirements, providing reliable core components for your equipment.

Company Profile

    We are a manufacturer integrating industry and trade. We have more than 20 years of experience in production technology. We are located in Dongguan City, Guangdong Province, China. We have advanced high-end professional production and processing technology, and are committed to innovative R&D and production. After years of  market tempering and exploration, it has high-quality   technical management personnel, experienced designers, R&D personnel and a   perfect company management system cnc precision.

5-axis CNC workshop

         Our factory has a plant area of about 2,000 square meters and masters core processing technologies. It has high-end precision production equipment cnc precision: CNC lathes, 5-axis CNC, 4-axis CNC, stamping equipment, die-casting equipment, etc. 2.5-dimensional detection equipment ​

two-dimensional testing

cnc precision surface treatment

          For surface treatment, our suppliers have been working with us for many years. They have rich experience and are familiar with all the quality requirements of each other. The quality is stable and more guaranteed. Such as: heat treatment, spray painting, powder coating, blackening, silver/gold plating, electrolytic polishing, nitriding, phosphating, nickel/zinc/chromium/TiCN plating, anodizing, polishing, passivation, sandblasting, galvanizing, heat treatment , hardening, laser marking, etc. according to customer requirements. Aluminum alloy surface oxidation

Product Packaging

Packaging Details

1. Commercial packaging: 1pc/plastic bag + color box +carton + pallet;
2. Industrial packaging: (1). plastic tube + carton + pallet; (2). plastic bag + kraft paper + carton + pallet;
3. According to the requirement of customer.

FAQ

Q1: Where can I get product & price information?

A1: Send us an inquiry e-mail, we will contact you once we received your mail.

Q2: How long will I get the sample?

A2: Depends on your specific items, within 3-7 days generally.

Q3: What kinds of information do you need for a quote?

A3: Kindly please provide the product drawings in PDF, if provide in STEP or IGS will be better.

Q4: What are the payment terms?

A4: We accept 50% as a payment deposit, when the goods are prepared, we shoot photos or videos for your check, and then you can pay the balance. For small quantities, we accept Paypal, the commission will be added to the order. For big amounts, T/T is preferred.

Q5: How to deliver the goods?

A5: We deliver the products by courier company.

Q6: Are you a trading company or factory?

A6: We are factory direct with 17 experienced engineers and more than 50 employees as well approximate 3,000m2 workshop area.

Q7: What shall we do if we don't have drawings?

A7: Please send your sample to our factory, then we can copy and provide you better solutions. If send us pictures or drafts with dimensions(Length, Height, Width), CAD or 3D file will be made for you.

Q8: Can we get some samples before mass production?

A8: Absolutely yes.

Q9: Will my drawings be safe after sending them to you?
