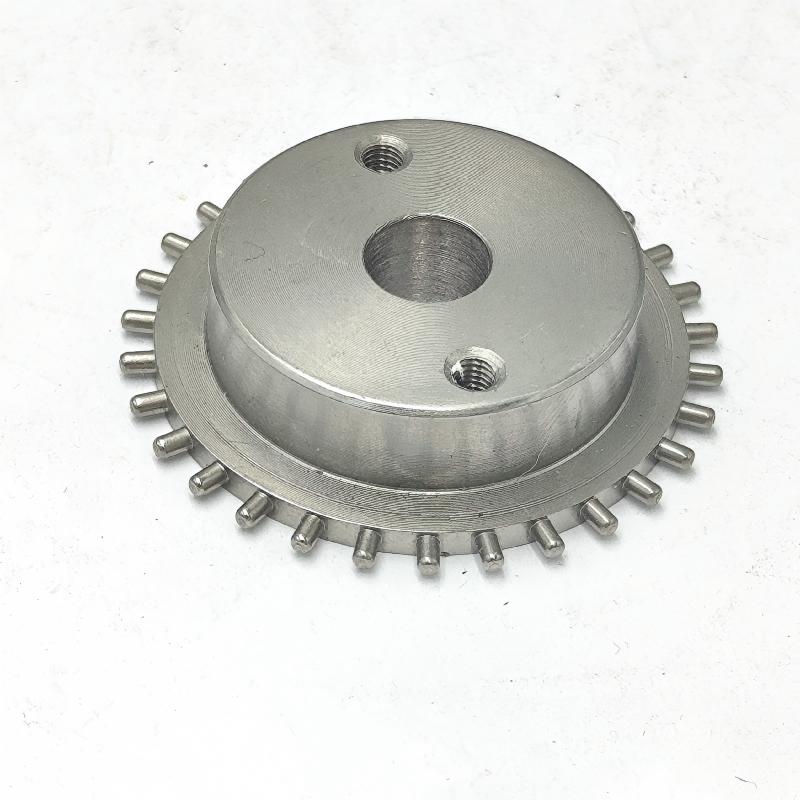

304 Stainless steel pinwheel Trustworthy CNC machined heavy machinery transmission wheel

The advanced application of CNC machining technology in heavy-duty machinery transmission wheels has not only overcome the technological barriers in manufacturing stainless steel pinwheels but also propelled their machining precision and performance to new heights, reshaping the technological boundaries of this precision transmission component.

The traditional challenges in manufacturing stainless steel pinwheels stemmed from the dual pressures of material properties and structural requirements. The special feature of pinwheels lies in their precisely arranged array of pin teeth. These tiny teeth must maintain extremely high precision in division, tooth profile consistency, surface hardness, and wear resistance. While austenitic and martensitic stainless steels offer excellent corrosion resistance, their work hardening tendency, low thermal conductivity, and high toughness present challenges to traditional machining methods when manufacturing micro-pin teeth, including rapid tool wear, loss of tooth profile precision, and unstable surface quality.

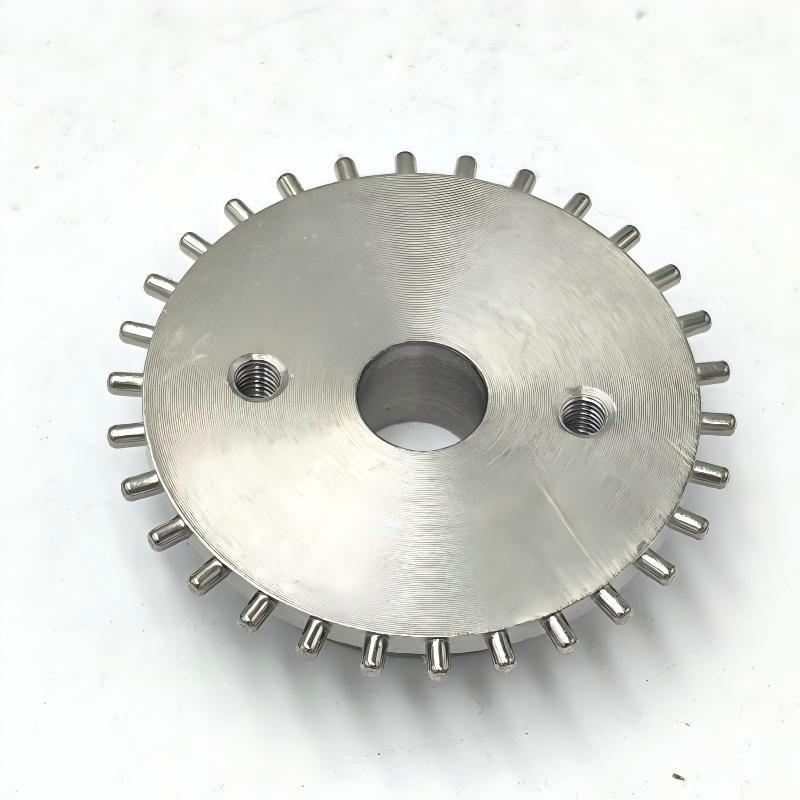

304 Stainless steel pinwheel Trustworthy CNC machined, heavy machinery transmission wheel

I. Innovative breakthroughs in CNC machining technology have opened up new paths for the precision manufacturing of stainless steel pinwheels:

1. Revolutionary progress in ultra-precision tooth profile generation and position control.

Modern high-end CNC machine tools, equipped with nanometer-resolution grating rulers and intelligent error compensation systems, can translate the micrometer-level tooth profile parameters in pinwheel design into physical reality. Through specialized toolpath planning and multi-axis linkage control, this level of precision is virtually impossible to achieve in traditional hobbing or shaping processes, especially when the pinwheel diameter is less than 10 mm, where the advantages of CNC technology are even more pronounced.

2. Reaching new heights in surface engineering and functional synergistic optimization.

The performance of a pinwheel depends not only on tooth profile accuracy but also on the microscopic state of the tooth surface. CNC technology, through precise control of cutting parameters and cooling strategies, can achieve ultra-smooth tooth surfaces with Ra below 0.1 μm while avoiding work hardening. This surface quality not only reduces meshing friction and wear but, more importantly, provides an ideal base for subsequent surface strengthening treatments. In some high-load applications, even micro-textured structures that facilitate lubricant retention can be formed on the tooth surface through special toolpath design, further improving the pinwheel's service life and transmission efficiency.

3. Driving the development of pinwheels towards miniaturization and functional integration.

Breakthroughs in CNC micromachining capabilities have made it possible to manufacture miniature stainless steel pinwheels with diameters of only 3-5 millimeters. By using micro-diameter cutting tools and special vibration suppression technology, precision pin tooth arrays with a tooth height of only 0.2 millimeters can be machined onto these miniature pinwheels. More importantly, CNC's multi-tasking capabilities allow pinwheels to be manufactured as integrated components with other functional structures. This structure-function integration significantly reduces the number of parts in the transmission system, improving overall rigidity and assembly accuracy.

4. The precision manufacturing of stainless steel pinwheels driven by CNC technology is reshaping the technological landscape of several high-end equipment sectors.

Stainless steel pinwheels precision-machined by CNC exhibit transmission precision and reliability unattainable by traditional processes. Their value lies not only in improved transmission efficiency but also in extended system lifespan and significantly reduced maintenance cycles.

Through ultimate digital control, the superior properties of stainless steel are perfectly combined with the precision functions of the pinwheel. This combination is driving the continuous evolution of precision transmission technology towards higher precision, longer lifespan, and wider applications, supporting the performance leap of modern high-end equipment at the microscale.

Company Profile

    We are a manufacturer integrating industry and trade. We have more than 20 years of experience in production technology. We are located in Dongguan City, Guangdong Province, China. We have advanced high-end professional production and processing technology, and are committed to innovative R&D and production. After years of  market tempering and exploration, it has high-quality   technical management personnel, experienced designers, R&D personnel and a   perfect company management system cnc precision.

5-axis CNC workshop

         Our factory has a plant area of about 2,000 square meters and masters core processing technologies. It has high-end precision production equipment cnc precision: CNC lathes, 5-axis CNC, 4-axis CNC, stamping equipment, die-casting equipment, etc. 2.5-dimensional detection equipment ​

two-dimensional testing

cnc precision surface treatment

          For surface treatment, our suppliers have been working with us for many years. They have rich experience and are familiar with all the quality requirements of each other. The quality is stable and more guaranteed. Such as: heat treatment, spray painting, powder coating, blackening, silver/gold plating, electrolytic polishing, nitriding, phosphating, nickel/zinc/chromium/TiCN plating, anodizing, polishing, passivation, sandblasting, galvanizing, heat treatment , hardening, laser marking, etc. according to customer requirements. Aluminum alloy surface oxidation

Product Packaging

Packaging Details

1. Commercial packaging: 1pc/plastic bag + color box +carton + pallet;
2. Industrial packaging: (1). plastic tube + carton + pallet; (2). plastic bag + kraft paper + carton + pallet;
3. According to the requirement of customer.

FAQ

Q1: Where can I get product & price information?

A1: Send us an inquiry e-mail, we will contact you once we received your mail.

Q2: How long will I get the sample?

A2: Depends on your specific items, within 3-7 days generally.

Q3: What kinds of information do you need for a quote?

A3: Kindly please provide the product drawings in PDF, if provide in STEP or IGS will be better.

Q4: What are the payment terms?

A4: We accept 50% as a payment deposit, when the goods are prepared, we shoot photos or videos for your check, and then you can pay the balance. For small quantities, we accept Paypal, the commission will be added to the order. For big amounts, T/T is preferred.

Q5: How to deliver the goods?

A5: We deliver the products by courier company.

Q6: Are you a trading company or factory?

A6: We are factory direct with 17 experienced engineers and more than 50 employees as well approximate 3,000m2 workshop area.

Q7: What shall we do if we don't have drawings?

A7: Please send your sample to our factory, then we can copy and provide you better solutions. If send us pictures or drafts with dimensions(Length, Height, Width), CAD or 3D file will be made for you.

Q8: Can we get some samples before mass production?

A8: Absolutely yes.

Q9: Will my drawings be safe after sending them to you?
