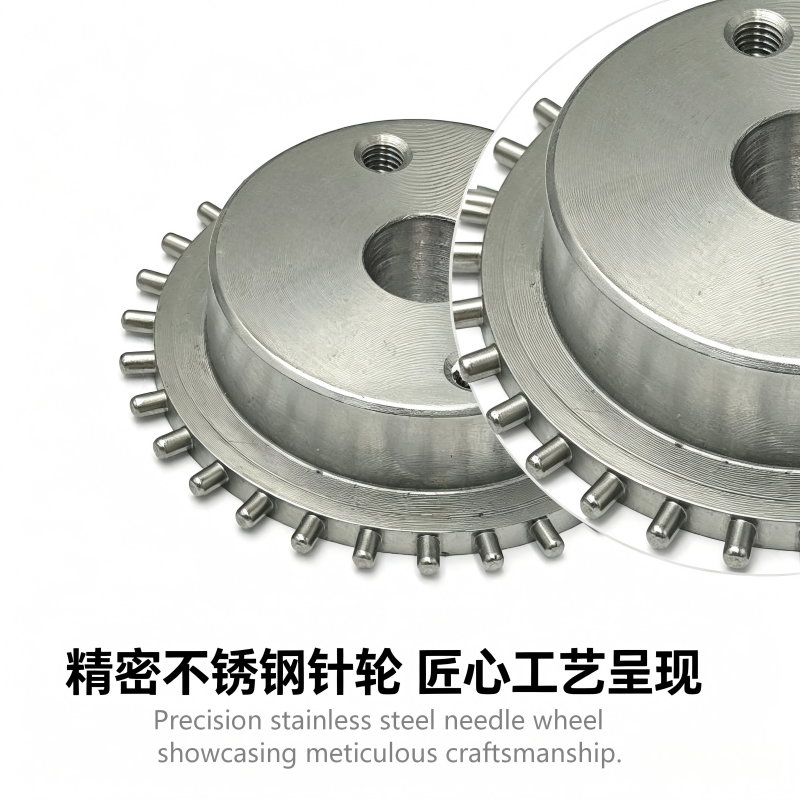

In the chain of automated equipment, precision transmission, and industrial manufacturing, a seemingly insignificant core component often determines the operating efficiency and lifespan of the entire system. The stainless steel pinwheel is such a critical component, requiring "micron-level precision," and CNC machining is the core secret to its stable performance.

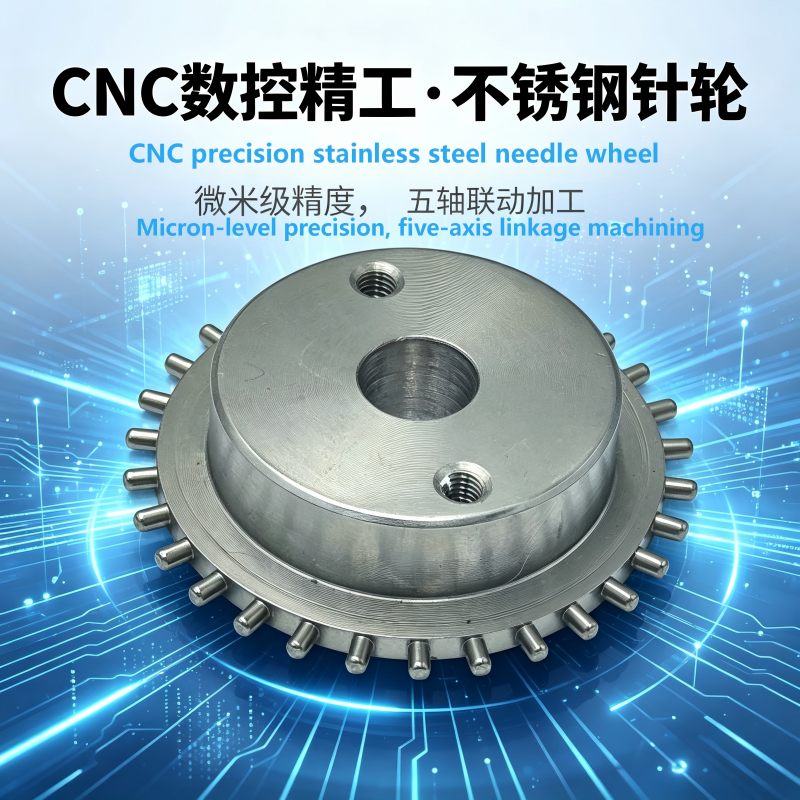

The precision of the stainless steel pinwheel directly affects the stability of the transmission system and the operating accuracy of the equipment. We employ a five-axis CNC machining process to achieve one-time forming from blank to finished product, completely avoiding errors caused by multiple clamping operations.
Micron-Level Tolerance Control: From the center hole diameter and tooth spacing to end face runout, all key dimensions are controlled within micron-level errors, ensuring a perfect fit between the pinwheel and the equipment, and a smooth, uninterrupted transmission process.
One-Piece Molding Process: Abandoning traditional welding and assembly processes, we use stainless steel bars for direct turning, milling, and drilling in a single process. The teeth and base are seamlessly integrated, preventing loosening or detachment of the teeth even during long-term high-speed operation.
Surface Finish: After CNC machining, the needle wheel undergoes passivation and polishing, resulting in a smooth, burr-free surface. This not only reduces transmission wear but also enhances the corrosion resistance of stainless steel, making it ideal for complex industrial applications.
Exquisite Customized non-standard stainless steel pinwheels to fit various equipment
Different equipment has vastly different requirements for the number of teeth, bore diameter, needle length, and mounting hole positions of needle wheels. Standardized products often fail to meet the needs of personalized scenarios. We offer a full-process stainless steel needle wheel customization service, ensuring each product precisely matches your equipment parameters:
Design on Demand: Based on your provided equipment drawings and operating parameters, we can optimize the number of teeth, diameter, mounting hole positions, and keyway specifications of the needle wheels to ensure a perfect fit with your equipment.
Material Options: We support customization with various stainless steel materials such as 304 and 316, catering to different needs such as corrosion resistance and industrial-grade high strength, suitable for various scenarios including industrial machinery, semiconductor equipment, and automated tape and reel machines.
Batch and Sample Services: We support prototyping, small-batch trial production, and mass production. Whether you have sample needs in the R&D stage or a bulk order in the mass production stage, we can respond quickly and deliver stably.
The quality of stainless steel pinwheels goes beyond just being "usable," focusing on "durability, stability, and efficiency."
High Precision for Stable Transmission: Micron-level precision in pin tooth spacing and coaxiality ensures even force distribution during transmission, reducing equipment vibration and noise, and extending the overall lifespan of the equipment.
Strong Weather Resistance of Stainless Steel: High-quality stainless steel raw materials combined with CNC integrated molding technology give the pinwheel both high strength and corrosion resistance. It can operate stably for extended periods under high and low temperatures, oil contamination, and humid conditions, without easily rusting or deforming.
Full-Process Quality Control Assurance: Every customized pinwheel undergoes multiple inspection processes, including dimensional and hardness testing, before leaving the factory to ensure that precision and performance meet standards, giving you peace of mind.
From blueprint design to CNC machining, from sample making to mass delivery, we meticulously craft each stainless steel pinwheel with micron-level precision, providing reliable core support for your equipment's transmission system.
Q1: Where can I get product & price information?
A1: Send us an inquiry e-mail, we will contact you once we received your mail.
Q2: How long will I get the sample?
A2: Depends on your specific items, within 3-7 days generally.
Q3: What kinds of information do you need for a quote?
A3: Kindly please provide the product drawings in PDF, if provide in STEP or IGS will be better.
Q4: What are the payment terms?
A4: We accept 50% as a payment deposit, when the goods are prepared, we shoot photos or videos for your check, and then you can pay the balance. For small quantities, we accept Paypal, the commission will be added to the order. For big amounts, T/T is preferred.
Q5: How to deliver the goods?
A5: We deliver the products by courier company.
Q6: Are you a trading company or factory?
A6: We are factory direct with 17 experienced engineers and more than 50 employees as well approximate 3,000m2 workshop area.
Q7: What shall we do if we don't have drawings?
A7: Please send your sample to our factory, then we can copy and provide you better solutions. If send us pictures or drafts with dimensions(Length, Height, Width), CAD or 3D file will be made for you.
Q8: Can we get some samples before mass production?
A8: Absolutely yes.
Q9: Will my drawings be safe after sending them to you?
Q10: Is it possible to know the operation status of my products without visiting your company?
A10: We will offer a detailed production schedule and send weekly reports with digital pictures and videos which show the machining progress.
