Dongguan Ganyuan Hardware Technology Co., Ltd. specializes in customized precision hardware parts processing. Leveraging years of industry manufacturing experience, we offer a one-stop parts processing service. Equipped with a full set of high-precision machining equipment, including CNC lathes, five-axis machining centers, and milling-turning composite machines, we possess a mature CNC programming and simulation system. Our machining accuracy reaches ±0.005mm, increasing production efficiency by 30% compared to traditional processing methods. Certified by ISO9001 quality management system, we implement standardized control throughout the entire process, from drawing alignment and raw material intake to finished product delivery. We can customize pneumatic manifolds of various specifications to meet the pneumatic needs of different equipment.
As the fundamental carrier of a pneumatic system, the raw materials used in the pneumatic manifold directly determine its overall service life. Ganyuan Hardware selects high-quality stainless steel and aluminum alloy base materials with uniform density, possessing excellent resistance to pressure, rust, and deformation. Upon arrival at the factory, raw materials undergo hardness and metallographic testing to remove blanks with pinholes or cracks, preventing leakage during high-pressure airflow. The material undergoes tempering to balance strength and machinability. After machining, the surface can be passivated or anodized as needed, making it resistant to corrosion and wear even in humid and oily industrial environments.
Precision Pneumatic Manifolds: Innovative Core Control Components of Pneumatic Systems

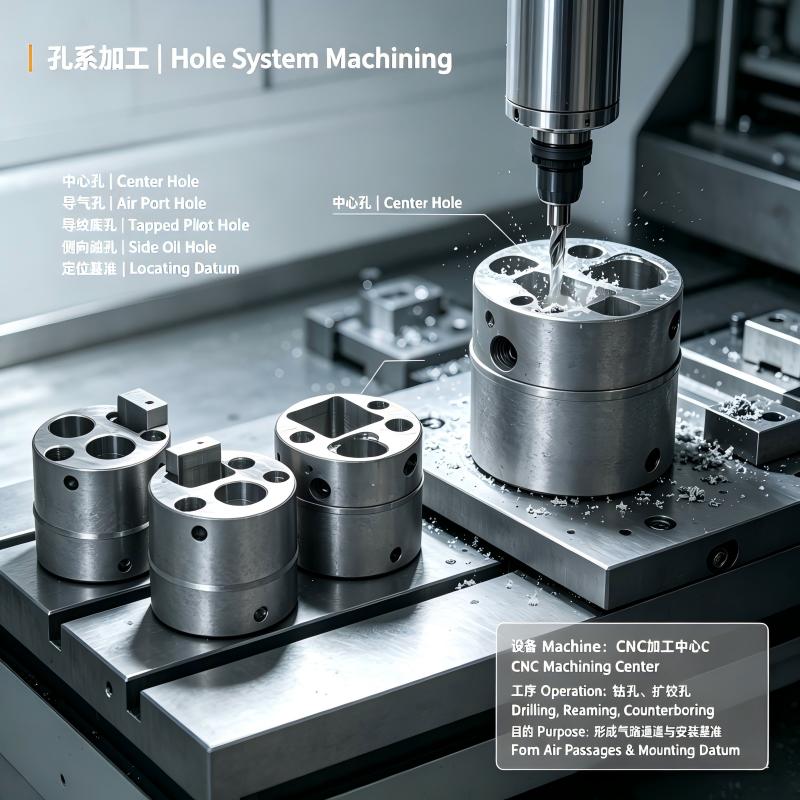

The core of the Pneumatic Manifolds lies in its complex internal hole system, including a central hole, air guide holes, lateral oil holes, and positioning reference holes. Multiple processes, such as drilling and reaming, are completed using a CNC machining center. Professional toolpath planning ensures strict compliance with the positional accuracy and diameter tolerances of each hole. The interconnected precision channels create a stable airflow path, enabling airflow distribution and valve integration. Smooth, burr-free hole walls reduce airflow resistance, eliminate pressure loss and leakage, and ensure stable response of pneumatic equipment, preventing malfunctions such as jamming and pressure instability.
Pneumatic Manifolds are key components in automated equipment, pneumatic clamps, hydraulic valve assemblies, and testing instruments. They integrate multiple pneumatic channels, simplifying pneumatic piping layout, replacing complex external air hoses, reducing overall equipment size, and making the pneumatic system structure more compact. Modular design facilitates installation, and hole layouts and dimensions can be customized according to equipment requirements. Widely used in automated production lines, semiconductor equipment, robotics, and other fields, supporting both small-batch sampling and large-scale mass production.
After processing, finished products undergo comprehensive inspection. Precision measuring tools are used to verify dimensions and hole accuracy, while airtightness testing is conducted at rated pressure to check for leaks. Visual inspection removes scratches, burrs, and processing defects, ensuring every qualified product meets the technical requirements of the drawings. Relying on a comprehensive quality management system, inspection records are maintained, ensuring product quality traceability and providing customers with stable and reliable components.
Finished Pneumatic Manifolds are protected with custom-designed foam slot positioning, individually sealed in bags, and then packed in sturdy cardboard boxes. Cushioning foam secures parts, preventing bumps and scratches during transport and protecting precision channels from damage. Packaging includes product labels and inspection documents. Bulk shipments are efficient and reliable, with support for logistics and delivery throughout China, ensuring products arrive at customers intact.
