Retaining rings, also called shaft sleeve retaining rings, are classic precision locking and positioning components in mechanical equipment. With their simple and reliable circular structure, they are widely used in various transmission equipment, undertaking the important functions of shaft fixing, bearing positioning, and component limiting and locking. Dongguan Ganyuan Hardware Technology Co., Ltd. specializes in precision CNC machining, relying on advanced processing equipment to create high-precision retaining ring products, providing stable and reliable shaft system solutions for industries such as automation and new energy.
Ganyuan Hardware retaining rings can use a variety of high-quality raw materials such as stainless steel, aluminum alloy, and carbon steel. Material testing is conducted on raw materials before they enter the factory, strictly controlling the purity, hardness, and toughness of the materials. Stainless steel is rust-proof and corrosion-resistant, suitable for humid and corrosive environments; carbon steel has high strength and can withstand large axial loads; the aluminum alloy version has outstanding lightweight advantages, suitable for equipment requiring weight reduction.

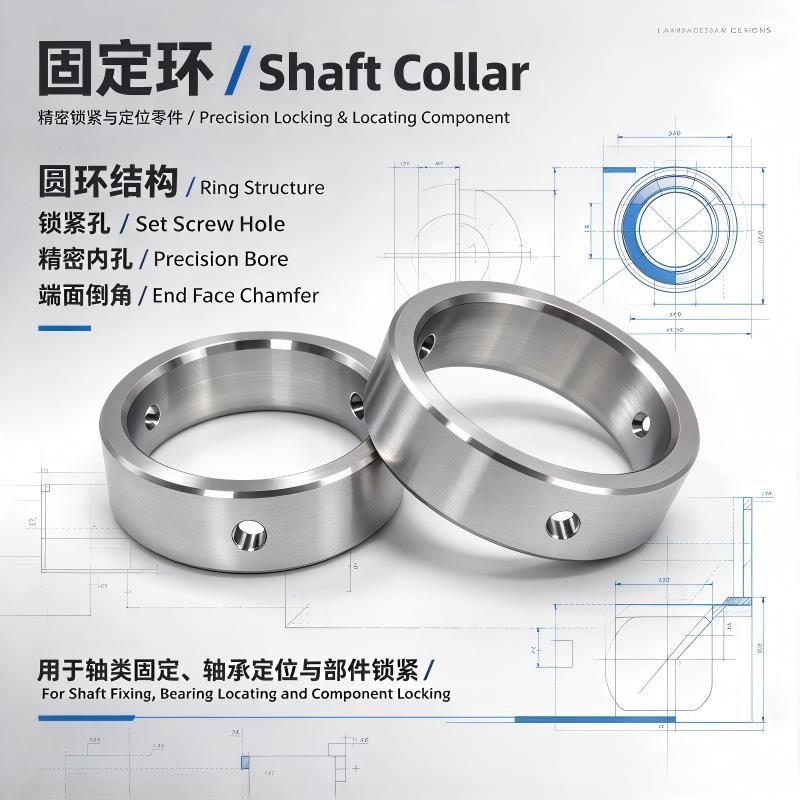

The blank has a uniform structure, free from internal defects such as pores and sand holes, preventing deformation of parts under stress from the source and ensuring long-term operational stability. The product features a precision inner hole, locking hole, and end face chamfer, with a structural design that fits assembly requirements and facilitates easy installation.
Precision retaining rings, core components for shaft positioning and locking Innovative
The factory is equipped with CNC lathes, four-axis and five-axis machining centers, and milling-turning composite machines, utilizing CNC machining technology to achieve integrated molding of the retaining ring. Machining positioning accuracy reaches 0.001mm, with full automated program control and multi-axis linkage shortening the machining cycle.
Through digital programming, the inner hole size, locking hole position, and end face flatness are precisely controlled, ensuring ring concentricity and smooth, regular end face chamfers. After machining, the surface has excellent finish, free of burrs and scratches, effectively reducing assembly friction and preventing scratches on the shaft. Utilizing a highly flexible machining system, the program can be quickly modified according to customer drawings to achieve non-standard customization and adapt to different shaft diameter requirements.

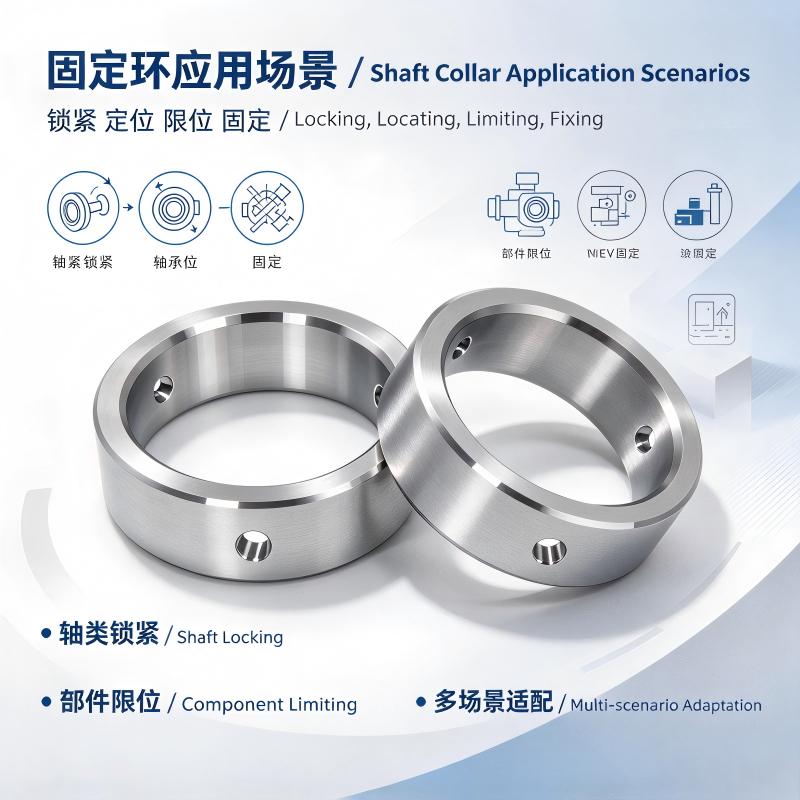

The core function of the retaining ring is shaft locking, bearing positioning, and component limiting, and it is widely used in automated equipment, new energy equipment, testing instruments, and conveying machinery. During assembly, locking holes are used for clamping and fixing, limiting axial displacement of parts on the shaft, preventing loosening or shifting during operation, and distributing axial loads.
The product is easy to assemble and disassemble, and convenient for later maintenance. It can be used as an axial retaining rings for bearings or for positional control of various components, adaptable to various working conditions. Whether for mass production of standard parts or custom-made parts of special dimensions, Ganyuan Hardware can adjust the hole diameter, thickness, and hole layout as needed.

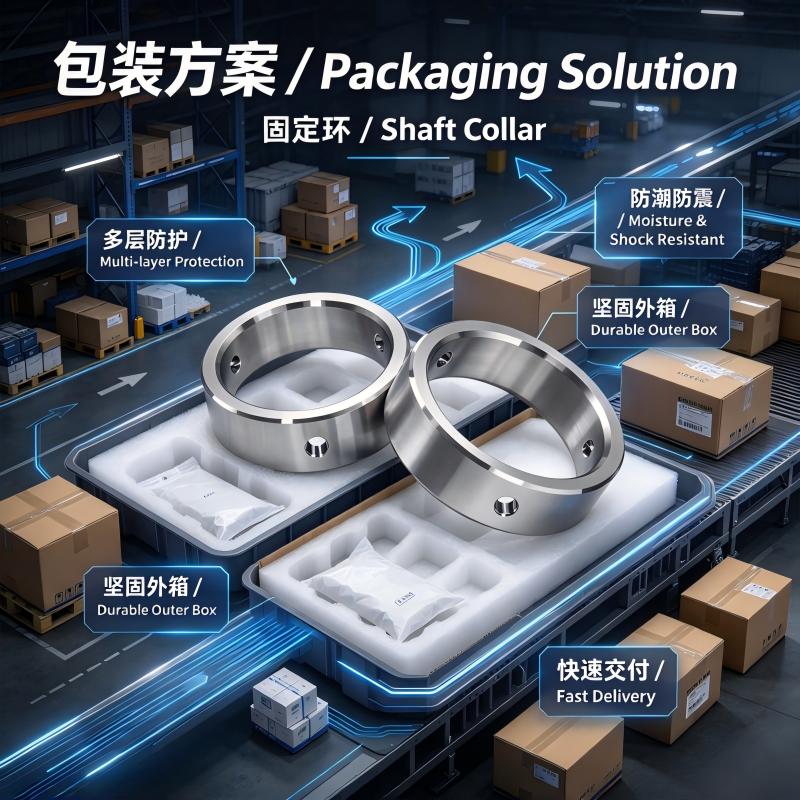

All finished products are tested according to ISO9001 quality management system standards. Precision measuring tools are used to randomly inspect internal hole tolerances, roundness, and hole position accuracy. Unqualified products are directly rejected to ensure delivery quality. Finished retaining rings are packaged with multiple layers of protective packaging: a foam inner lining for isolation and protection, and a sturdy cardboard box for moisture and shock protection, preventing damage during transportation and ensuring parts arrive at the customer's location intact.
Ganyuan Hardware adheres to precision manufacturing as its core principle, meticulously crafting each retaining rings. With stable quality, high-precision dimensions, and flexible customization services, it provides customers with one-stop CNC precision parts machining solutions.
Q1: Where can I get product & price information?
A1: Send us an inquiry e-mail, we will contact you once we received your mail.
Q2: How long will I get the sample?
A2: Depends on your specific items, within 3-7 days generally.
Q3: What kinds of information do you need for a quote?
A3: Kindly please provide the product drawings in PDF, if provide in STEP or IGS will be better.
Q4: What are the payment terms?
A4: We accept 50% as a payment deposit, when the goods are prepared, we shoot photos or videos for your check, and then you can pay the balance. For small quantities, we accept Paypal, the commission will be added to the order. For big amounts, T/T is preferred.
Q5: How to deliver the goods?
A5: We deliver the products by courier company.
Q6: Are you a trading company or factory?
A6: We are factory direct with 17 experienced engineers and more than 50 employees as well approximate 3,000m2 workshop area.
Q7: What shall we do if we don't have drawings?
A7: Please send your sample to our factory, then we can copy and provide you better solutions. If send us pictures or drafts with dimensions(Length, Height, Width), CAD or 3D file will be made for you.
Q8: Can we get some samples before mass production?
A8: Absolutely yes.
Q9: Will my drawings be safe after sending them to you?
Q10: Is it possible to know the operation status of my products without visiting your company?
A10: We will offer a detailed production schedule and send weekly reports with digital pictures and videos which show the machining progress.
