High-precision stainless steel small parts 316L Trustworthy CNC machined general-purpose accessories

At the microscale of modern precision industry, from precision connectors to aerospace microstructures, stainless steel CNC-machined small parts form the support structure of cutting-edge equipment. These parts are often millimeter or even sub-millimeter in size, but their function is crucial, often requiring them to withstand high stress, corrosion resistance, or long-term stable operation in extreme environments.

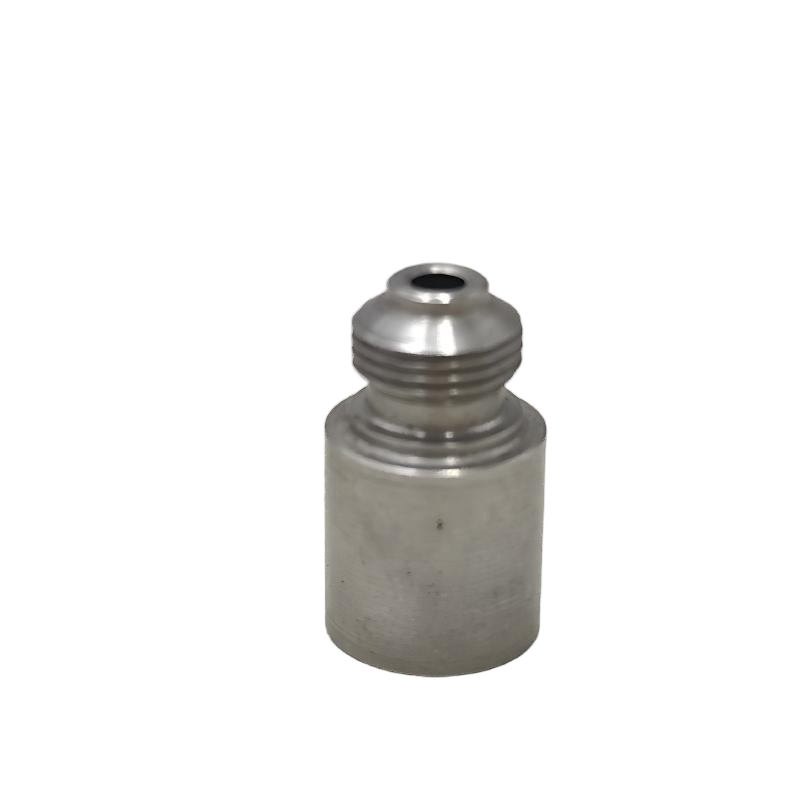

High-precision stainless steel small parts 316L CNC machined general-purpose accessories

What are the advantages of CNC machining small stainless steel parts?

I. Achieving ultra-high geometric accuracy and machining complex features at the sub-millimeter scale

1) Direct forming of micro-features: Using precision micro-CNC machining centers with extremely high spindle speeds and astonishing dynamic accuracy, coupled with ultra-fine carbide or diamond-coated tools with a diameter less than 0.1 mm, it is possible to directly mill narrow grooves with a width of 0.05 mm, micro-holes with a depth several times their diameter, or micro-gears with a module less than 0.1 mm onto stainless steel blanks.

2) Complex 3D Shaping: Through the precise linkage of a five-axis micro-motion platform, complex 3D curved surfaces, irregular cavities, or inclined features can be machined on tiny parts.

3) Extreme Dimensional and Geometric Tolerance Control: This type of CNC system ensures that the tolerance of critical dimensions of parts is stable within ±0.005mm or even higher, while guaranteeing that the positional accuracy, concentricity, and parallelism between multiple micro-features reach equally stringent levels. This is the foundation for achieving a high success rate in the assembly of micro-components.

II. Systematically Overcoming the Material and Physical Limits of Micromachining

1. At the microscale, the difficult-to-machine characteristics of stainless steel and its unique physical effects intertwine, creating severe challenges.

2. Intelligent Handling of Work Hardening and Cutting Force Control: Through ultra-high frequency per-tooth feed control and an optimized cutting parameter database, CNC can minimize cutting force and cutting heat, effectively suppressing the formation of work-hardened layers and avoiding bending or twisting of parts due to cutting forces.

3. Micrometer-Level Thermal Management and Deformation Suppression: Integrating micro-lubrication or cryogenic cooling systems, the microenvironment of the machining area is precisely controlled. Combining in-machine measurement and real-time compensation technologies, it is possible to detect and dynamically correct nanoscale deformations caused by cutting heat or clamping forces, ensuring that the final dimensions meet design requirements.

III. Achieving Superior Surface Integrity

1) Direct Acquisition of Ultra-Smooth Surfaces: Through precision cutting or micro-grinding with micro-diamond tools, mirror-like finishes can be directly achieved on the surfaces of small stainless steel parts. This surface not only reduces frictional resistance...

2) Defect-Free and High-Purity Surfaces: Precise and controllable CNC cutting processes yield surfaces free of microcracks, burrs, and with extremely low residual stress, providing a perfect base for subsequent electropolishing, passivation, or special coatings.

Company Profile

    We are a manufacturer integrating industry and trade. We have more than 20 years of experience in production technology. We are located in Dongguan City, Guangdong Province, China. We have advanced high-end professional production and processing technology, and are committed to innovative R&D and production. After years of  market tempering and exploration, it has high-quality   technical management personnel, experienced designers, R&D personnel and a   perfect company management system cnc precision.

5-axis CNC workshop

         Our factory has a plant area of about 2,000 square meters and masters core processing technologies. It has high-end precision production equipment cnc precision: CNC lathes, 5-axis CNC, 4-axis CNC, stamping equipment, die-casting equipment, etc. 2.5-dimensional detection equipment ​

two-dimensional testing

cnc precision surface treatment

          For surface treatment, our suppliers have been working with us for many years. They have rich experience and are familiar with all the quality requirements of each other. The quality is stable and more guaranteed. Such as: heat treatment, spray painting, powder coating, blackening, silver/gold plating, electrolytic polishing, nitriding, phosphating, nickel/zinc/chromium/TiCN plating, anodizing, polishing, passivation, sandblasting, galvanizing, heat treatment , hardening, laser marking, etc. according to customer requirements. Aluminum alloy surface oxidation

Product Packaging

Packaging Details

1. Commercial packaging: 1pc/plastic bag + color box +carton + pallet;
2. Industrial packaging: (1). plastic tube + carton + pallet; (2). plastic bag + kraft paper + carton + pallet;
3. According to the requirement of customer.

FAQ

Q1: Where can I get product & price information?

A1: Send us an inquiry e-mail, we will contact you once we received your mail.

Q2: How long will I get the sample?

A2: Depends on your specific items, within 3-7 days generally.

Q3: What kinds of information do you need for a quote?

A3: Kindly please provide the product drawings in PDF, if provide in STEP or IGS will be better.

Q4: What are the payment terms?

A4: We accept 50% as a payment deposit, when the goods are prepared, we shoot photos or videos for your check, and then you can pay the balance. For small quantities, we accept Paypal, the commission will be added to the order. For big amounts, T/T is preferred.

Q5: How to deliver the goods?

A5: We deliver the products by courier company.

Q6: Are you a trading company or factory?

A6: We are factory direct with 17 experienced engineers and more than 50 employees as well approximate 3,000m2 workshop area.

Q7: What shall we do if we don't have drawings?

A7: Please send your sample to our factory, then we can copy and provide you better solutions. If send us pictures or drafts with dimensions(Length, Height, Width), CAD or 3D file will be made for you.

Q8: Can we get some samples before mass production?

A8: Absolutely yes.

Q9: Will my drawings be safe after sending them to you?
