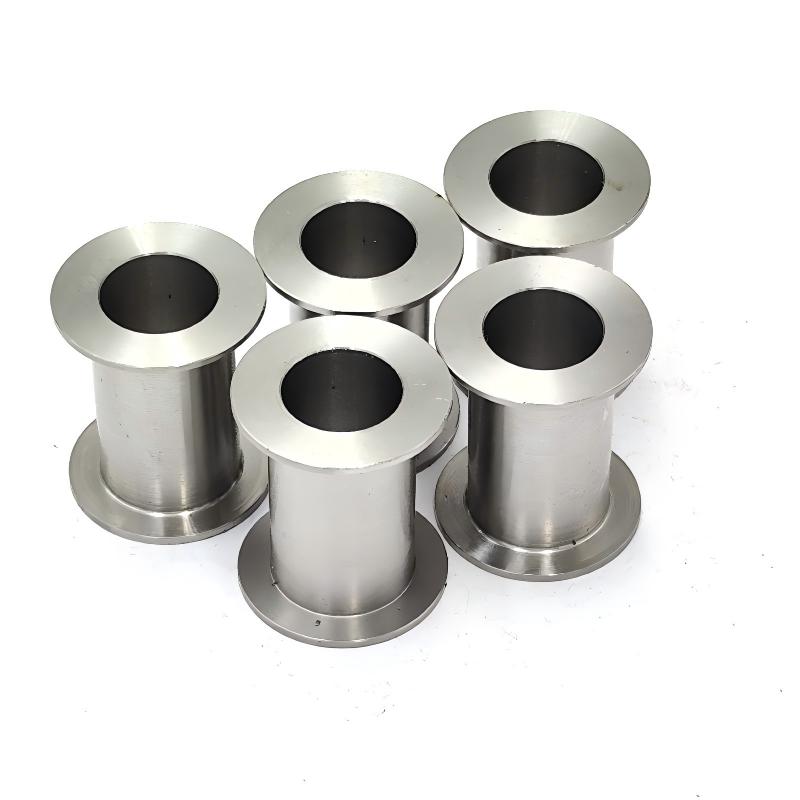

Trustworthy stainless steel parts 316L CNC machined miniature structural components for semiconductor equipment.

The emergence of CNC machining technology has not only overcome the difficulties in machining stainless steel, but also propelled the manufacturing of precision parts to the micron-level precision control, redefining the value dimension of stainless steel in high-end manufacturing.

Trustworthy stainless steel parts 316L CNC machined miniature structural components for semiconductor equipment.

The fundamental challenge in manufacturing precision stainless steel parts stems from the contradictory properties of the material.

The superior performance of 316L medical-grade stainless steel, the high strength of 17-4PH precipitation-hardening stainless steel, and the corrosion resistance of 304 stainless steel all come with severe machining challenges: rapid tool wear due to high hardness, thermal deformation caused by low thermal conductivity, and dimensional stability issues due to work hardening tendency. When dimensional tolerances are required to be within ±0.005mm and surface roughness requirements are required to be below Ra 0.2μm, traditional machining methods often fall short, struggling to balance the triple requirements of precision, efficiency, and cost.

I. The breakthrough contribution of CNC machining technology has achieved fundamental changes in three key dimensions:

1. Microscale precision control.

Modern five-axis CNC machining centers, equipped with nanometer-level resolution measurement systems and thermal compensation technology, can maintain micron-level dimensional stability during continuous machining operations lasting several hours. They can machine thin-walled tubes up to 200mm in length to a wall thickness tolerance of ±0.003mm. This precision is not only reflected in dimensions but also in the control of geometric tolerances—key indicators such as flatness, cylindricity, and coaxiality can all reach the micron level, meeting the most stringent assembly requirements.

2. Breakthroughs in the synergistic optimization of surface integrity and functionality.

The performance of stainless steel precision components largely depends on their surface condition. CNC processes, through intelligent cutting parameter optimization and dedicated toolpath planning, can achieve precise control from mirror finishes to specific functional textures. More importantly, this process can finely regulate the distribution of residual stress and microstructure on the surface, significantly improving the fatigue strength and corrosion resistance of the components.

3. Driving integrated innovation of complex functional structures.

CNC machining's non-contact toolpath planning capabilities enable it to overcome the geometric limitations of traditional processes, achieving precision machining of complex internal structures, micro-channels, and irregularly shaped hole systems. It can integrate complex labyrinth seal structures with fluid dynamics-optimized channels. This structure-function integration significantly reduces assembly steps and improves the overall reliability of the system.

1. Breakthroughs in ultra-precision cutting using CNC technology have improved the machining accuracy of stainless steel precision parts.

By using diamond tools and special vibration control technology, nanometer-level surface quality and sub-micron-level shape accuracy can be achieved, meeting the requirements of high-end applications such as optical instruments and precision measuring equipment.

2. CNC-driven precision machining is reshaping the business model of stainless steel parts manufacturing.

Digitalized rapid prototyping capabilities reduce response time for customized customer needs from weeks to days; the application of intelligent manufacturing systems makes large-scale, stable production with micron-level precision possible.

CNC precision machining of stainless steel represents the pinnacle of modern manufacturing capabilities. Through complete digital control of the machining process, it maximizes the potential of stainless steel, a traditional material—endowing it with unprecedented geometric freedom and functional characteristics while retaining its inherent advantages. When precision CNC tools carve micron-level structures on the surface of stainless steel, it is not only manufacturing parts, but also defining the precision boundaries of contemporary industrial technology.

Company Profile

    We are a manufacturer integrating industry and trade. We have more than 20 years of experience in production technology. We are located in Dongguan City, Guangdong Province, China. We have advanced high-end professional production and processing technology, and are committed to innovative R&D and production. After years of  market tempering and exploration, it has high-quality   technical management personnel, experienced designers, R&D personnel and a   perfect company management system cnc precision.

5-axis CNC workshop

         Our factory has a plant area of about 2,000 square meters and masters core processing technologies. It has high-end precision production equipment cnc precision: CNC lathes, 5-axis CNC, 4-axis CNC, stamping equipment, die-casting equipment, etc. 2.5-dimensional detection equipment ​

two-dimensional testing

cnc precision surface treatment

          For surface treatment, our suppliers have been working with us for many years. They have rich experience and are familiar with all the quality requirements of each other. The quality is stable and more guaranteed. Such as: heat treatment, spray painting, powder coating, blackening, silver/gold plating, electrolytic polishing, nitriding, phosphating, nickel/zinc/chromium/TiCN plating, anodizing, polishing, passivation, sandblasting, galvanizing, heat treatment , hardening, laser marking, etc. according to customer requirements. Aluminum alloy surface oxidation

Product Packaging

Packaging Details

1. Commercial packaging: 1pc/plastic bag + color box +carton + pallet;
2. Industrial packaging: (1). plastic tube + carton + pallet; (2). plastic bag + kraft paper + carton + pallet;
3. According to the requirement of customer.

FAQ

Q1: Where can I get product & price information?

A1: Send us an inquiry e-mail, we will contact you once we received your mail.

Q2: How long will I get the sample?

A2: Depends on your specific items, within 3-7 days generally.

Q3: What kinds of information do you need for a quote?

A3: Kindly please provide the product drawings in PDF, if provide in STEP or IGS will be better.

Q4: What are the payment terms?

A4: We accept 50% as a payment deposit, when the goods are prepared, we shoot photos or videos for your check, and then you can pay the balance. For small quantities, we accept Paypal, the commission will be added to the order. For big amounts, T/T is preferred.

Q5: How to deliver the goods?

A5: We deliver the products by courier company.

Q6: Are you a trading company or factory?

A6: We are factory direct with 17 experienced engineers and more than 50 employees as well approximate 3,000m2 workshop area.

Q7: What shall we do if we don't have drawings?

A7: Please send your sample to our factory, then we can copy and provide you better solutions. If send us pictures or drafts with dimensions(Length, Height, Width), CAD or 3D file will be made for you.

Q8: Can we get some samples before mass production?

A8: Absolutely yes.

Q9: Will my drawings be safe after sending them to you?
