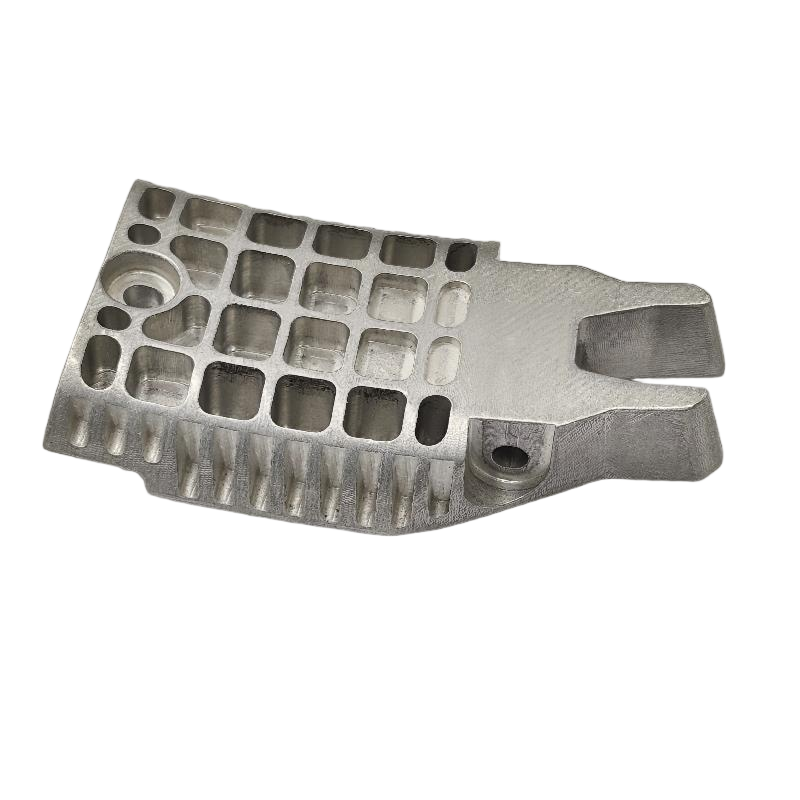

Trustworthy 316 stainless steel valve block CNC machining automation equipment accessories

The systematic innovation of CNC machining technology has not only overcome the challenges of machining complex internal flow channels, but also elevated the integration, precision, and reliability of valve blocks to unprecedented engineering heights.

The fundamental challenge in manufacturing stainless steel valve blocks stems from the deep interaction between complex flow channel systems and material properties. Traditional manufacturing methods are often limited by machining accessibility and precision control capabilities when facing multi-layered, multi-dimensional internal flow channel networks. The low thermal conductivity, easy work hardening characteristics, and stringent cleanliness requirements of stainless steel present multiple technical challenges when machining precision valve holes, complex intersecting flow channels, and special sealing structures, including controlling machining deformation, ensuring surface integrity, and maintaining cleanliness.

I. What are the key advantages of CNC machining of stainless steel valve blocks?

1. A qualitative leap in the integration of complex flow channel systems.

Modern five-axis CNC machining centers, through ultra-long cutting tools and special fixture systems, enable system-level integration capabilities. This allows a single valve block to replace the complex systems that traditionally require multiple discrete valve components and connecting pipelines, significantly reducing potential leakage points and improving system reliability.

2. Establishing new standards for surface quality and sealing performance optimization.

The sealing performance of stainless steel valve blocks directly affects the reliability and service life of the entire fluid system. CNC machining, through precise control of cutting parameters and toolpaths, can create ideal microstructures in valve orifices and sealing surfaces.

3. Promoting the deep integration of modular design and intelligent manufacturing.

The digital characteristics of CNC machining enable unprecedented design flexibility for stainless steel valve blocks. In intelligent hydraulic systems of engineering machinery, parametric design and CNC precision machining allow for rapid implementation of variations with different functional configurations on the same basic valve block. Special CNC machining strategies enable fully continuous designs of all internal flow channels, eliminating dead zones and residual areas that may result from traditional machining. More importantly, the combination of CNC machining and additive manufacturing technologies enables the creation of complex internal cooling channels and pressure balance structures that are impossible to achieve using traditional machining methods.

4. Of particular note is the technology for controlling the cleanliness of the machining process.

Advanced CNC machining systems, by integrating high-pressure rinsing and vacuum extraction devices, can automatically execute cleaning procedures between critical processes when machining hydraulic valve blocks with high cleanliness requirements. In mass production, the processing environment is monitored in real time through an online cleanliness detection system. This process-oriented cleaning control allows stainless steel valve blocks to be directly applied to the most demanding clean environments without additional cleaning steps.

5. From the perspective of industry development trends

CNC technology is driving the transformation of stainless steel valve block manufacturing from general-purpose components to system solutions. Professional manufacturers, by establishing computational fluid dynamics simulation platforms, material databases, and testing and verification systems, can provide customers with optimized designs based on actual working conditions.

6. CNC stainless steel valve block manufacturing represents an important direction for the development of modern fluid control technology towards high integration, intelligence, and reliability.

When digital manufacturing precision is deeply integrated with fluid dynamics principles, every precise flow channel machining is a precise guidance of fluid energy; every perfect valve block is a high degree of unity between materials science, mechanical design, and manufacturing processes. CNC precision-machined stainless steel valve blocks, with their superior fluid control performance and reliable operating characteristics, provide indispensable technical support for the precise control of modern industry, creating more accurate, efficient, and reliable engineering solutions between pressure and flow.

Company Profile

    We are a manufacturer integrating industry and trade. We have more than 20 years of experience in production technology. We are located in Dongguan City, Guangdong Province, China. We have advanced high-end professional production and processing technology, and are committed to innovative R&D and production. After years of  market tempering and exploration, it has high-quality   technical management personnel, experienced designers, R&D personnel and a   perfect company management system cnc precision.

5-axis CNC workshop

         Our factory has a plant area of about 2,000 square meters and masters core processing technologies. It has high-end precision production equipment cnc precision: CNC lathes, 5-axis CNC, 4-axis CNC, stamping equipment, die-casting equipment, etc. 2.5-dimensional detection equipment ​

two-dimensional testing

cnc precision surface treatment

          For surface treatment, our suppliers have been working with us for many years. They have rich experience and are familiar with all the quality requirements of each other. The quality is stable and more guaranteed. Such as: heat treatment, spray painting, powder coating, blackening, silver/gold plating, electrolytic polishing, nitriding, phosphating, nickel/zinc/chromium/TiCN plating, anodizing, polishing, passivation, sandblasting, galvanizing, heat treatment , hardening, laser marking, etc. according to customer requirements. Aluminum alloy surface oxidation

Product Packaging

Packaging Details

1. Commercial packaging: 1pc/plastic bag + color box +carton + pallet;
2. Industrial packaging: (1). plastic tube + carton + pallet; (2). plastic bag + kraft paper + carton + pallet;
3. According to the requirement of customer.

FAQ

Q1: Where can I get product & price information?

A1: Send us an inquiry e-mail, we will contact you once we received your mail.

Q2: How long will I get the sample?

A2: Depends on your specific items, within 3-7 days generally.

Q3: What kinds of information do you need for a quote?

A3: Kindly please provide the product drawings in PDF, if provide in STEP or IGS will be better.

Q4: What are the payment terms?

A4: We accept 50% as a payment deposit, when the goods are prepared, we shoot photos or videos for your check, and then you can pay the balance. For small quantities, we accept Paypal, the commission will be added to the order. For big amounts, T/T is preferred.

Q5: How to deliver the goods?

A5: We deliver the products by courier company.

Q6: Are you a trading company or factory?

A6: We are factory direct with 17 experienced engineers and more than 50 employees as well approximate 3,000m2 workshop area.

Q7: What shall we do if we don't have drawings?

A7: Please send your sample to our factory, then we can copy and provide you better solutions. If send us pictures or drafts with dimensions(Length, Height, Width), CAD or 3D file will be made for you.

Q8: Can we get some samples before mass production?

A8: Absolutely yes.

Q9: Will my drawings be safe after sending them to you?
