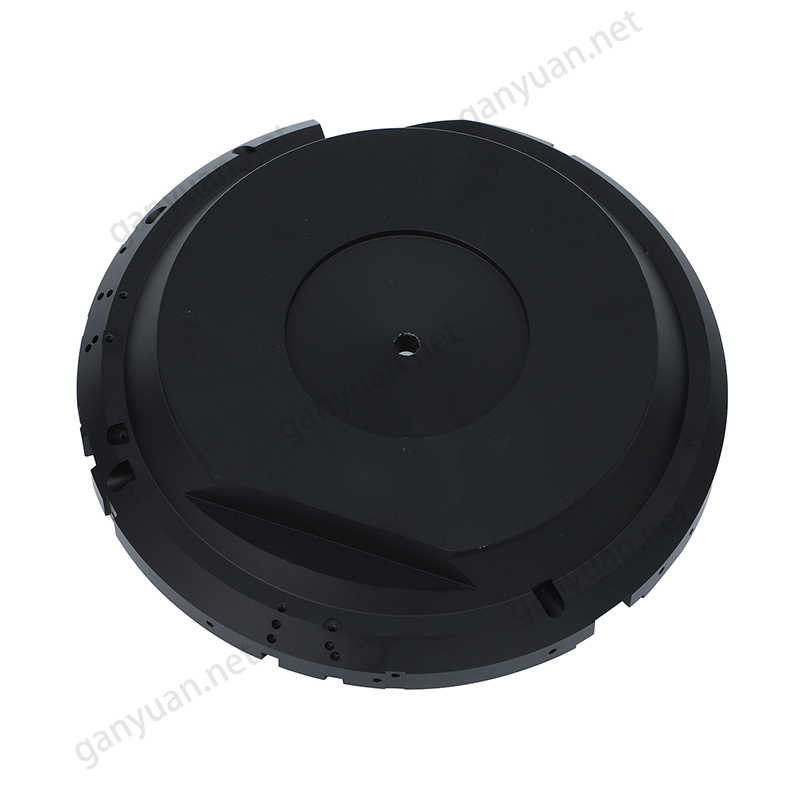

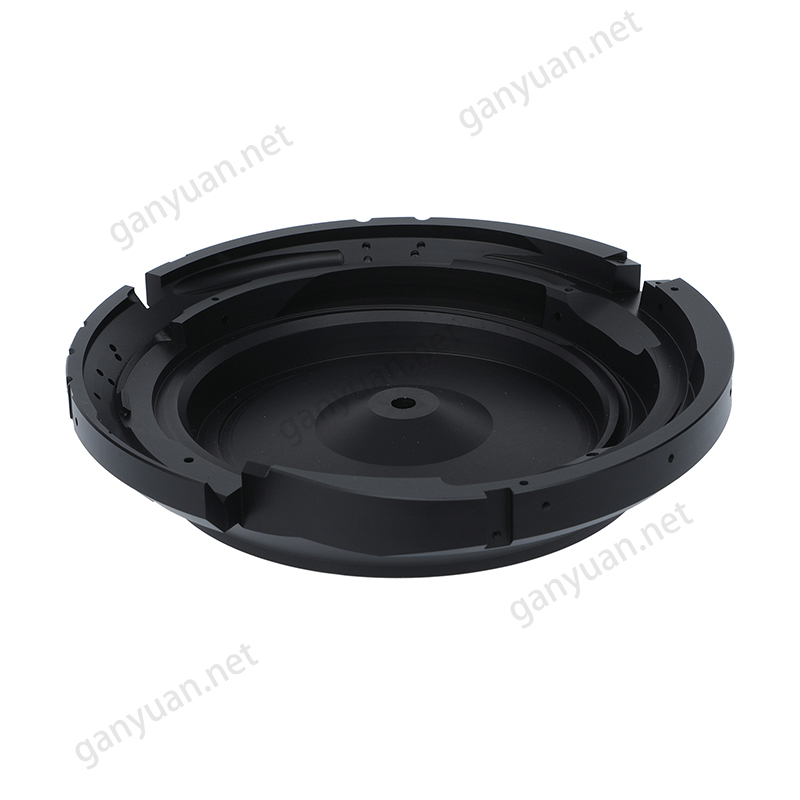

Trustworthy CNC machined aluminum vibratory feeder customized automatic feeding tray for packaging lines

In automated production lines and precision assembly systems, aluminum vibratory feeders serve as intelligent material orienters. Their performance directly determines the feeding efficiency, system stability, and overall automation level of the production line. The introduction of CNC machining technology, with its unparalleled structural precision, predictable dynamic characteristics, and ultimate production consistency, is redefining the core manufacturing standards of high-end vibratory feeders, achieving a leap from "functional realization" to "performance optimization."

I. What are the technical characteristics of CNC machining in overcoming the core difficulties of vibratory feeders?

The core of a vibratory feeder lies in the precise coordination of its track surface, amplitude, and orientation mechanism. CNC machining, through digital manufacturing, systematically solves the inherent defects of traditional processes.

1) Achieving calculus-level precision shaping of the track surface and orientation mechanism.

The efficiency and reliability of a vibratory feeder depend 90% on the precise geometry of its helical or linear track. A CNC five-axis machining center can, based on the physical characteristics of materials such as precision screws and micro-electronic components, precisely program using CAM software to mill an optimized track surface with smooth transitions, continuous curvature, and conforming to the material's center of gravity changes in a single operation. This digital shaping capability can precisely control the track width, baffle angle, and vibratory feeder mechanism shape, maximizing the orientation success rate and conveying smoothness from a physical structure perspective, significantly reducing material jamming and tipping.

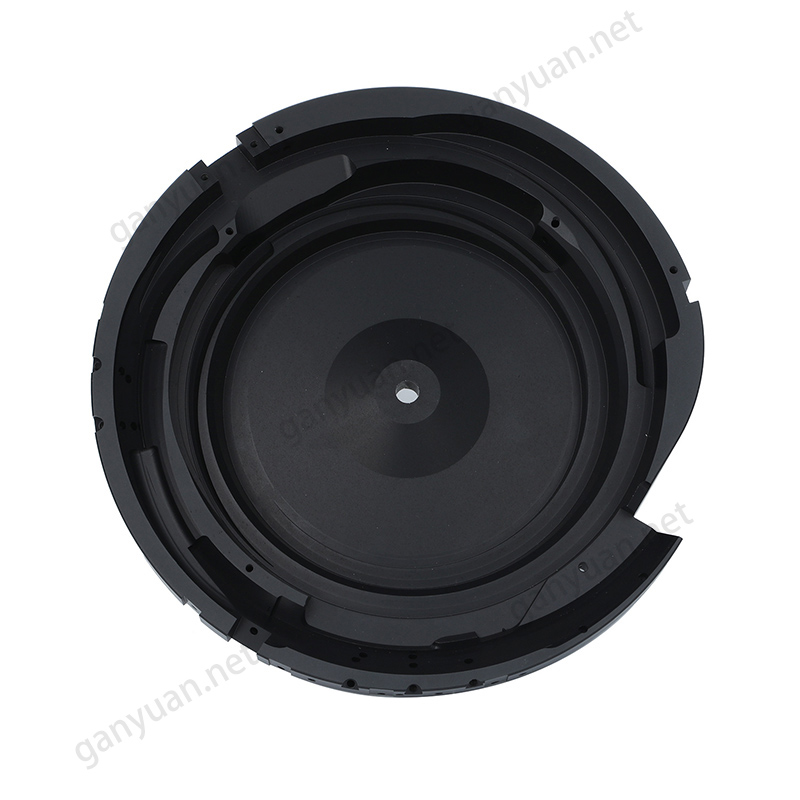

Trustworthy CNC machined aluminum vibratory feeder customized automatic feeding tray for packaging lines

2) Optimal matching of feeder stiffness and vibration response.

Vibratory feeders need to operate under continuous high-frequency vibration for extended periods; therefore, the distribution of structural rigidity is crucial. CNC machining allows for the integrated fabrication of the disc, track, and reinforcing ribs from a single high-rigidity aluminum alloy plate. This seamless, one-piece structure avoids stress concentration and localized deformation caused by traditional welding, resulting in a more uniform mass distribution and more efficient and stable vibration energy transmission. Engineers can optimize the rib design through finite element analysis and precisely implement it directly on a CNC machine tool, thereby suppressing harmful resonances and ensuring ideal vibration modes at different frequencies.

3) Providing a perfect substrate for enhanced surface properties.

To reduce friction and wear, high-end vibratory feeder tracks often require Teflon or hardened coatings. CNC machining directly yields a metal substrate with extremely low surface roughness (Ra < 0.8μm) and uniform texture. This not only ensures stronger and more uniform coating adhesion, significantly extending service life, but its smooth surface also significantly reduces frictional resistance during initial material transport, making it particularly suitable for precision materials sensitive to surface scratches.

II. Efficiency Revolution: What are the systemic advantages of CNC machining? The value of CNC machining extends from manufacturing to end-user performance, forming a closed-loop advantage across the entire chain.

1) Superior Batch Consistency and Out-of-the-Box Readiness

Traditional vibratory feeders heavily rely on manual adjustment experience by technicians, resulting in significant performance fluctuations. CNC machining's digital replication capabilities ensure that the track, structural dimensions, and dynamic characteristics of each feeder are nearly identical. This makes vibratory feeders of the same model interchangeable, allowing for rapid transfer of adjustment parameters and significantly reducing system integration and maintenance costs.

2) Significant Performance Improvement and Energy Optimization

The integrated, high-rigidity structure reduces unnecessary energy loss during vibration transmission. Optimized track design reduces material conveying resistance. Combined, these factors allow CNC-machined vibratory feeders to achieve the same conveying efficiency at lower amplitudes or frequencies, resulting in quieter operation, reduced drive system load, and lower overall energy consumption, improving the long-term economic efficiency of the equipment.

3) Agile Customization Response and Iterative Capabilities

The flexibility of CNC machining is fully demonstrated in response to new material feeding requirements arising from product iterations. Without needing to recreate molds, only modifications to the 3D model and machining program are required to quickly produce customized disc bodies optimized for new materials. This allows equipment manufacturers to respond to market demands at unprecedented speed, shortening new product development cycles from weeks to days, building a strong technological moat.

CNC machining technology, with its precise shaping capabilities for complex spatial surfaces, the superior dynamic rigidity of its integrated structure, and the ultimate consistency provided by digital manufacturing, fundamentally solves the core shortcomings of aluminum vibratory feeders in terms of efficiency, stability, and customization.

Company Profile

         We are a manufacturer integrating industry and trade. We have more than 20 years of experience in production technology. We are located in Dongguan City, Guangdong Province, China. We have advanced high-end professional production and processing technology, and are committed to innovative R&D and production. After years of market tempering and exploration, it has high-quality technical management personnel, experienced designers, R&D personnel and a perfect company management system.

5-axis CNC workshop

         Our factory has a plant area of about 2,000 square meters and masters core processing technologies. It has high-end precision production equipment: CNC lathes, 5-axis CNC, 4-axis CNC, stamping equipment, die-casting equipment, etc.​

Auxiliary production equipment: electroplating, anodizing, hard anodizing and surface treatment. We have complete testing equipment: sophisticated three-dimensional testing, two-dimensional testing, hardness tester, height meter, projector and other conventional testing equipment. If you are interested in our products, please contact me and I will provide the best price support and quality service.

2D inspection equipment

Product Packaging

Packaging Details

1. Commercial packaging: 1pc/plastic bag + color box +carton + pallet;
2. Industrial packaging: (1). plastic tube + carton + pallet; (2). plastic bag + kraft paper + carton + pallet;
3. According to the requirement of customer.
