The chuck base is the core load-bearing structure of the machine tool chuck, directly determining the stability of workpiece clamping. The quality of raw materials is a prerequisite for product performance. Ganyuan Hardware selects high-strength alloy steel as the base material, which undergoes forging and tempering treatment, resulting in uniform overall hardness and strong resistance to deformation, capable of withstanding the enormous clamping force and alternating loads under high-speed machine tool operation.
Raw materials undergo rigorous testing upon warehousing, with sampling verification of material composition and hardness to eliminate substandard blanks, preventing cracking and deformation of the base from the source. This ensures compatibility with various working conditions, including CNC lathes and automated machining equipment, laying a solid foundation for subsequent precision machining.

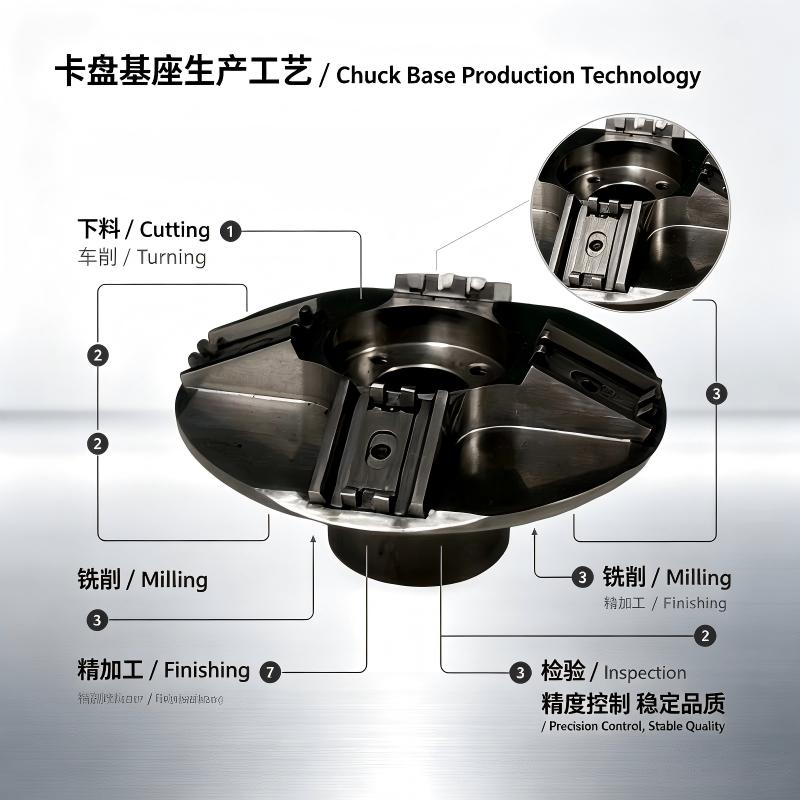

The company is equipped with high-end equipment such as CNC lathes, five-axis machining centers, and milling-turning composite machines. Relying on digital programming simulation and toolpath optimization, the entire chuck base machining is completed, achieving a machining accuracy of ±0.005mm, with a machining efficiency 30% higher than traditional processes. The complete process flow encompasses blanking, turning, multi-pass milling, finishing, and finished product inspection. The base positioning grooves, mounting holes, and mating surfaces are all milled and ground through multiple processes to ensure uniformity of all mating dimensions. A mature CNC machining system allows for both mass production of standard-specification bases and non-standard customization based on customer drawings, meeting the assembly needs of different machine tools.
CNC Precision Chuck Base: A Core Component for Machine Tool Clamping Exclusive

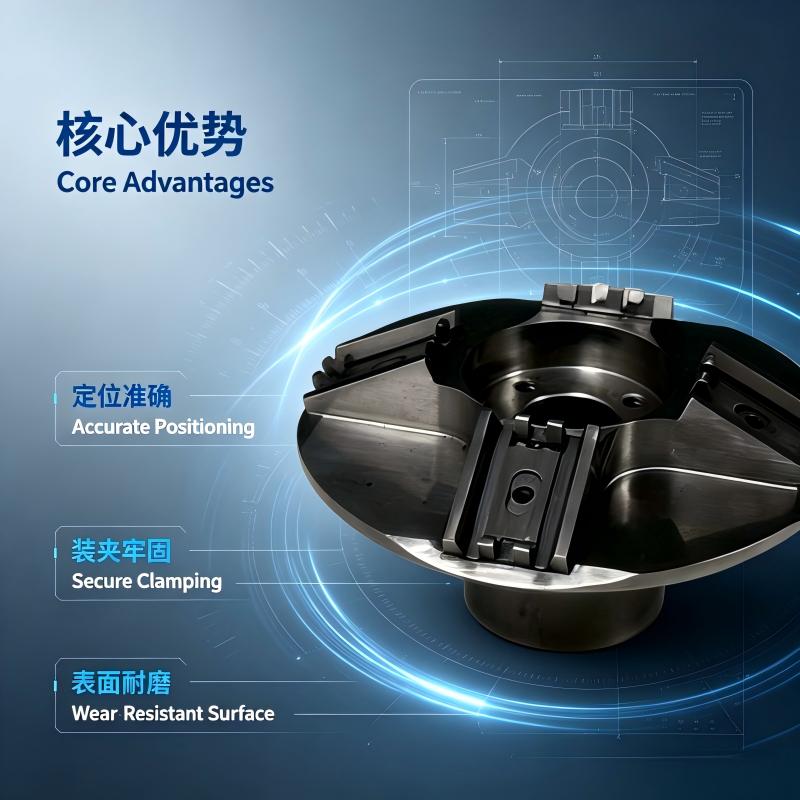

This chuck base boasts three core advantages: accurate positioning, secure clamping, and wear-resistant surface. Precision-machined positioning reference surfaces enable accurate workpiece positioning, reducing positional deviations during machining and improving part machining consistency. The rationally designed overall structure, combined with the chuck jaws, provides stable clamping, preventing loosening or displacement during high-speed rotation. The hardened surface exhibits excellent wear resistance, maintaining mating accuracy even after long-term repeated clamping and use, reducing wear and tear. Whether in ordinary turning machining or heavy-duty, high-speed automated production scenarios, it performs reliably, effectively reducing the probability of equipment failure.
Our factory is ISO9001 certified and has established a closed-loop quality control system. After each machining process of the chuck base, in-process inspection is conducted. After the finished product is completed, flatness, hole diameter, slot dimensions, and hardness are comprehensively tested. Precision measuring tools are used to verify all geometric tolerances, and mechanical property tests are performed on samples. Workpieces with burrs, out-of-tolerance dimensions, or insufficient hardness are all rejected. Strict control over factory standards ensures the stable and reliable performance of every product.
The chuck base is a high-precision component; bumps and scratches will directly damage the fit. After the finished product completes inspection, it is cushioned with pearl cotton and stably packed in cartons and wooden boxes, with special attention paid to protecting precision-fitting parts to avoid damage during logistics and transportation. Suitable for domestic logistics and international trade shipments, we can handle both large-volume orders and small-batch customized orders, efficiently completing production and delivery.
As a key component of the machine tool clamping system, the chuck base profoundly affects the overall machining quality. Ganyuan Hardware relies on high-end CNC equipment, high-quality raw materials and a complete quality inspection system to create high-precision chuck bases and provide stable and reliable clamping solutions for various CNC equipment with solid manufacturing processes.
Q1: Where can I get product & price information?
A1: Send us an inquiry e-mail, we will contact you once we received your mail.
Q2: How long will I get the sample?
A2: Depends on your specific items, within 3-7 days generally.
Q3: What kinds of information do you need for a quote?
A3: Kindly please provide the product drawings in PDF, if provide in STEP or IGS will be better.
Q4: What are the payment terms?
A4: We accept 50% as a payment deposit, when the goods are prepared, we shoot photos or videos for your check, and then you can pay the balance. For small quantities, we accept Paypal, the commission will be added to the order. For big amounts, T/T is preferred.
Q5: How to deliver the goods?
A5: We deliver the products by courier company.
Q6: Are you a trading company or factory?
A6: We are factory direct with 17 experienced engineers and more than 50 employees as well approximate 3,000m2 workshop area.
Q7: What shall we do if we don't have drawings?
A7: Please send your sample to our factory, then we can copy and provide you better solutions. If send us pictures or drafts with dimensions(Length, Height, Width), CAD or 3D file will be made for you.
Q8: Can we get some samples before mass production?
A8: Absolutely yes.
Q9: Will my drawings be safe after sending them to you?
Q10: Is it possible to know the operation status of my products without visiting your company?
A10: We will offer a detailed production schedule and send weekly reports with digital pictures and videos which show the machining progress.
