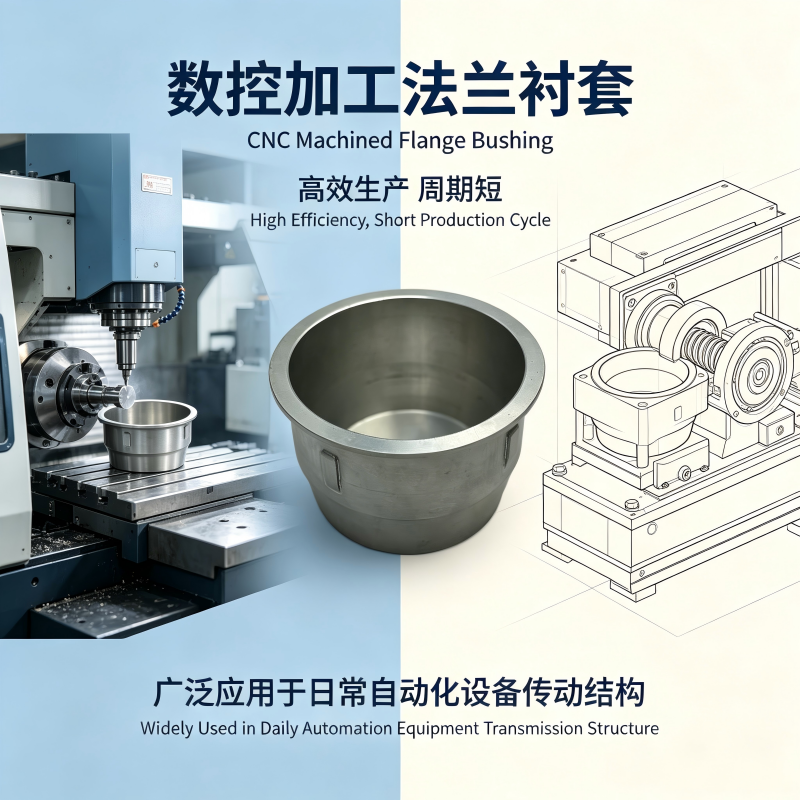

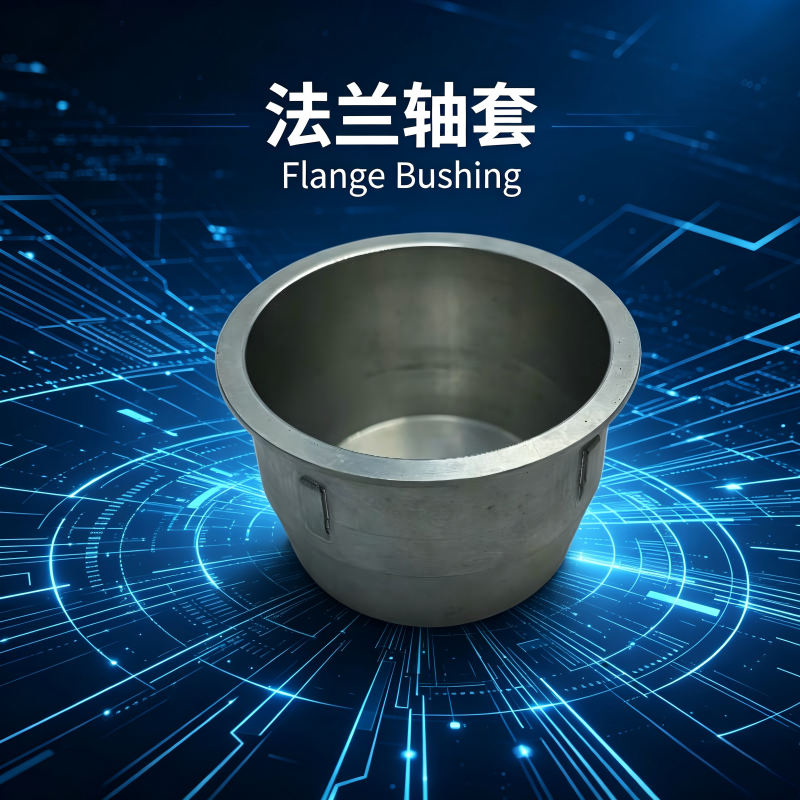

In automated equipment, heavy machinery, and precision transmission systems, flange bushings serve as critical connection and support components. Their dimensional accuracy, structural strength, and installation adaptability directly determine the stability and safety of the entire machine's operation. Dongguan Ganyuan Hardware Technology Co., Ltd., relying on its advanced CNC machining system and stringent quality management standards, focuses on the customized production of high-precision stainless steel flange bushings, providing reliable, durable, and precise metal connection solutions for various high-end manufacturing fields.
Ganyuan Hardware's flange bushings are made of high-quality stainless steel, precision machined by CNC turning, milling, and grinding, offering the following significant advantages:
Precision Fit: The machining accuracy of the inner and outer diameters can reach ±0.005mm, ensuring minimal assembly clearance with shafts, bearings, or frames, resulting in smooth, vibration-free operation;
High-Efficiency Transmission: Optimized structural design, combined with multi-hole weight reduction and reinforcing rib layout, reduces rotational inertia while maintaining strength, improving response speed;
Wear-Resistant and Durable: Utilizing high-strength materials and heat-treated for reinforcement, they can withstand high-frequency, high-torque conditions, suitable for heavy-duty or high-speed operation;
Wide Compatibility: Hole diameter, thread, installation method, and surface treatment can be customized according to customer needs to meet the assembly requirements of various equipment such as SMD taping machines, COF packaging machines, carrier tape pulling systems, and textile machinery.
Precision Flange Bushings: CNC Machining, Empowering Core Components of Transmission Structures Innovative
Ganyuan Hardware strictly adheres to a four-step closed-loop process: "Programming and Simulation → Tool Path Planning → Precision Machining → Finished Product Inspection," ensuring that every flange bushing meets industrial-grade precision standards:
Programming and Simulation: 3D modeling and cutting path simulation using professional CAM software proactively avoids interference and overcutting risks;
Tool Path Planning: Optimizing the tool path based on the part's geometric characteristics reduces idle travel, improving machining efficiency and surface quality;
Precision Machining: Multi-faceted machining is performed in a single setup on a five-axis machining center, ensuring coaxiality and positional tolerances of all parts;
Finished Product Inspection: Each product undergoes dimensional measurement, hardness testing, dynamic balancing verification, and actual machine installation verification to ensure stable performance and no abnormal wear.
Ganyuan Hardware is equipped with a variety of advanced CNC machining equipment, forming an intelligent production system covering the entire process of turning, milling, drilling, and grinding:
CNC Lathes: High-efficiency single-axis turning, suitable for simple rotating parts, such as bolt shank and head forming;
Five-Axis CNC Machining Centers: High-precision five-axis linkage machining, capable of completing complex curved surfaces and multi-angle cutting;
Mill-Turn Turning Centers: Multi-functional turning and milling machine, flexible four-axis machining, suitable for parts with multiple holes and faces;
Four-Axis CNC Machining Machines: Four-axis linkage, suitable for efficient machining of moderately complex parts.
Ganyuan Hardware's flange bushings are widely used in multiple industrial fields:
Automotive Parts Assembly: Used for connection and support of key components such as engines, transmissions, and suspension systems, ensuring smooth vehicle operation;
Automated Equipment Transmission Structures: In SMD tape feeding machines and carrier tape pulling systems, they serve as connectors between drive shafts and bearings, ensuring stability under high-speed operation;
Textile Machinery: Used in the transmission systems of spinning machines, weaving machines, and other equipment, withstanding high-frequency vibrations and loads;
Heavy Machinery: In excavators, cranes, and other equipment, they serve as supports for hydraulic cylinders or drive shafts, ensuring equipment reliability under harsh working conditions.
Q1: Where can I get product & price information?
A1: Send us an inquiry e-mail, we will contact you once we received your mail.
Q2: How long will I get the sample?
A2: Depends on your specific items, within 3-7 days generally.
Q3: What kinds of information do you need for a quote?
A3: Kindly please provide the product drawings in PDF, if provide in STEP or IGS will be better.
Q4: What are the payment terms?
A4: We accept 50% as a payment deposit, when the goods are prepared, we shoot photos or videos for your check, and then you can pay the balance. For small quantities, we accept Paypal, the commission will be added to the order. For big amounts, T/T is preferred.
Q5: How to deliver the goods?
A5: We deliver the products by courier company.
Q6: Are you a trading company or factory?
A6: We are factory direct with 17 experienced engineers and more than 50 employees as well approximate 3,000m2 workshop area.
Q7: What shall we do if we don't have drawings?
A7: Please send your sample to our factory, then we can copy and provide you better solutions. If send us pictures or drafts with dimensions(Length, Height, Width), CAD or 3D file will be made for you.
Q8: Can we get some samples before mass production?
A8: Absolutely yes.
Q9: Will my drawings be safe after sending them to you?
Q10: Is it possible to know the operation status of my products without visiting your company?
A10: We will offer a detailed production schedule and send weekly reports with digital pictures and videos which show the machining progress.
