In the fields of mechanical transmission, automation equipment, and precision instruments, stepped shafts serve as core components for multi-part assembly, power transmission, and structural support. Their dimensional accuracy, surface finish, and structural rationality directly determine the overall operational stability and service life of the machine. Dongguan Ganyuan Hardware Technology Co., Ltd., relying on advanced CNC machining technology and a rigorous quality management system, provides customers with high-precision, high-reliability stepped shaft products, widely used in high-end manufacturing scenarios such as servo motors, robot joints, and automotive steering systems.
The company is equipped with multiple high-precision CNC machining equipment, including a five-axis CNC machining center, a milling and turning center, and a four-axis CNC machining center, achieving a machining accuracy of ±0.005mm, with efficiency 30% higher than traditional machining methods. Through programming and simulation, toolpath planning, and full-process control of precision machining, the company ensures that the diameter, length, thread, fillet radius, and coaxiality of each section of the stepped shaft reach industry-leading levels, meeting the demands of high-load, high-precision industrial applications.

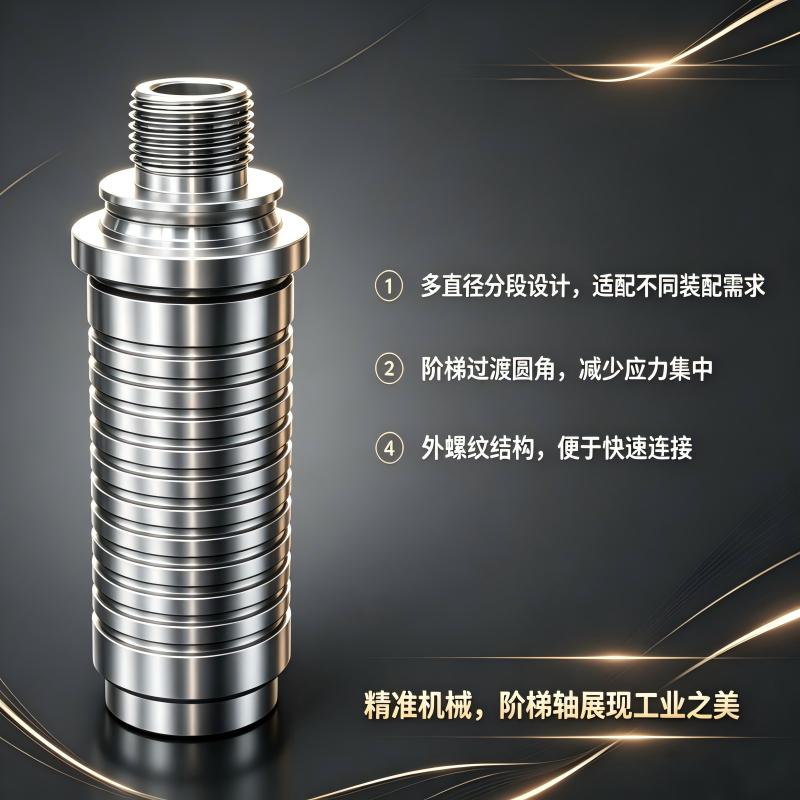

Precision Stepped Shafts: Expertly The Core of Industrial Transmission
Multi-diameter segmented design: Customized diameter segments to meet assembly requirements, adapting to the installation of bearings, gears, couplings, and other components, achieving modular integration.
Stepped transition fillets: Optimized structural design, reducing stress concentration, improving fatigue resistance, and extending service life.
External thread structure: Facilitates quick connection and disassembly, improving assembly efficiency, suitable for applications requiring frequent maintenance or replacement.
Wide applications: Widely used in key components such as transmission systems, positioning mechanisms, and actuator outputs, making it an ideal choice for achieving precise power transmission and structural stability.
The company has passed GB/T19001-2016 idt ISO9001:2015 quality management system certification. From raw material warehousing, CNC machining, heat treatment to finished product inspection, standardized operating procedures are implemented at every stage. For stepped shafts, a coordinate measuring machine is specially installed for full-dimensional inspection to ensure that key indicators such as diameter tolerance, circular runout, and thread accuracy of each section are 100% qualified, providing customers with traceable and reliable high-quality products.
To ensure that products are not damaged during transportation, the company adopts a customized shockproof and cushioning packaging solution. Before leaving the factory, stepped shafts are fully wrapped with high-density foam or bubble wrap and then placed in sturdy cardboard boxes or wooden crates, effectively resisting vibration, compression, and moisture during transportation. Whether it is domestic short-distance delivery or international long-distance sea freight, we can ensure that products arrive at customers intact, meeting the urgent delivery needs of projects.
Dongguan Ganyuan Hardware Technology Co., Ltd. will continue to uphold the philosophy of "precision manufacturing and quality first," continuously optimizing processing technology, expanding material applications, and improving service response speed, striving to become a trusted supplier of precision transmission components for global customers. We firmly believe that every stepped shaft is not only a component of mechanical structure but also an important force driving industrial progress.
Q1: Where can I get product & price information?
A1: Send us an inquiry e-mail, we will contact you once we received your mail.
Q2: How long will I get the sample?
A2: Depends on your specific items, within 3-7 days generally.
Q3: What kinds of information do you need for a quote?
A3: Kindly please provide the product drawings in PDF, if provide in STEP or IGS will be better.
Q4: What are the payment terms?
A4: We accept 50% as a payment deposit, when the goods are prepared, we shoot photos or videos for your check, and then you can pay the balance. For small quantities, we accept Paypal, the commission will be added to the order. For big amounts, T/T is preferred.
Q5: How to deliver the goods?
A5: We deliver the products by courier company.
Q6: Are you a trading company or factory?
A6: We are factory direct with 17 experienced engineers and more than 50 employees as well approximate 3,000m2 workshop area.
Q7: What shall we do if we don't have drawings?
A7: Please send your sample to our factory, then we can copy and provide you better solutions. If send us pictures or drafts with dimensions(Length, Height, Width), CAD or 3D file will be made for you.
Q8: Can we get some samples before mass production?
A8: Absolutely yes.
Q9: Will my drawings be safe after sending them to you?
Q10: Is it possible to know the operation status of my products without visiting your company?
A10: We will offer a detailed production schedule and send weekly reports with digital pictures and videos which show the machining progress.
