Flange threaded sleeves, commonly used connectors in precision machining, are widely applied in automated equipment, hydraulic systems, and precision tooling due to their integrated flange end face positioning and internal thread locking structure. Ganyuan Hardware, leveraging its mature CNC machining system, has developed high-precision flange threaded sleeve products, providing stable and reliable connection solutions for various mechanical assemblies.
The flange threaded sleeve integrates the flange base and threaded sleeve into a single piece. The flange end face enables planar positioning, while the internal thread locks the shaft end, combining positioning, connection, and fastening functions.
The product uses high-quality raw materials such as stainless steel and alloy steel, possessing excellent wear resistance, rust prevention, and deformation resistance. CNC machining positioning accuracy can reach 0.001mm, with regular thread profiles and stable fit clearances. Compared to ordinary threaded bushings, the flange structure increases the pressure-bearing area, distributes stress, effectively prevents assembly loosening, maintains assembly accuracy even under high-frequency vibration conditions, and reduces the risk of equipment failure. Meanwhile, product specifications support customization; length, thread specifications, and flange dimensions can be adjusted according to drawings to adapt to diverse equipment needs.
Precision Flange Threaded Sleeves: Core Fastening and Positioning Components in Mechanical Assembly Expertly

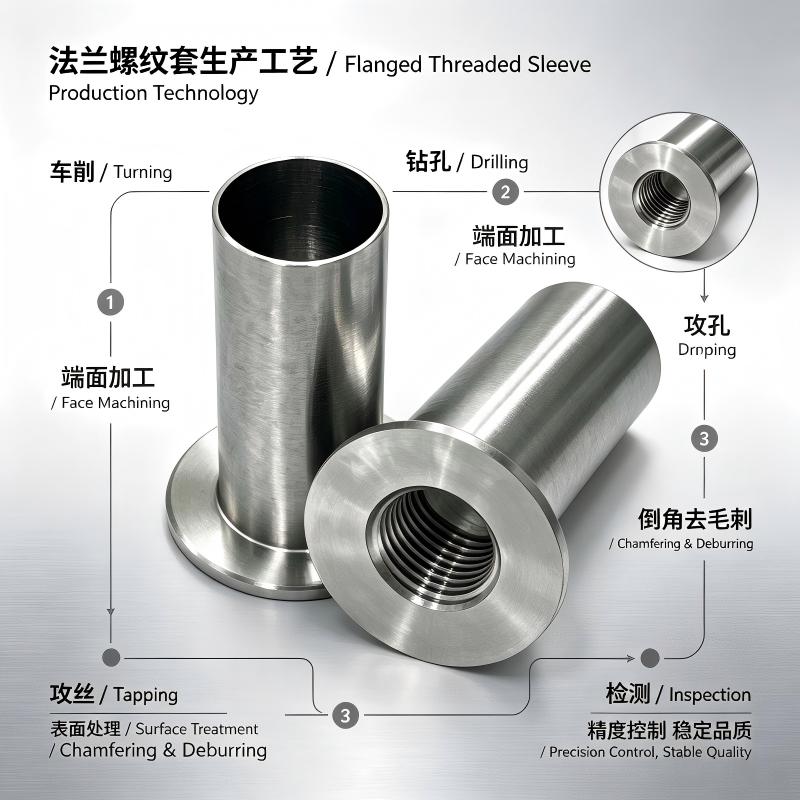

The finished quality of the flange threaded sleeve relies on standardized CNC machining processes. The machining process is as follows: roughing and finishing turning, end face machining, drilling, tapping, chamfering and deburring, and finally, full dimensional inspection and surface treatment.
Production utilizes CNC lathes, five-axis machining centers, and milling-turning composite machines, relying on automated program control to complete machining. Multi-axis linkage effectively compresses the production cycle. The turning process ensures the flatness of the outer circle and the flange plane; the tapping process strictly controls thread accuracy, eliminating stripped threads and incomplete thread profiles; chamfering and deburring eliminate sharp edges to avoid assembly scratches. Each product undergoes dimensional, thread, and geometric tolerance inspection; unqualified products are directly rejected to ensure batch consistency.

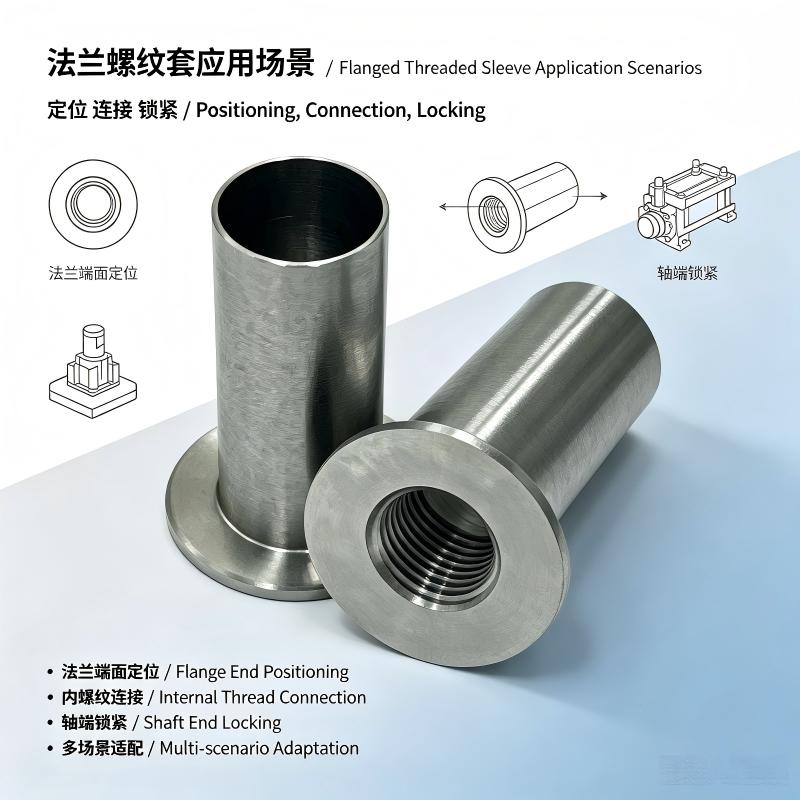

The core functions of the flange threaded sleeve are flange end face positioning, internal thread connection, and shaft end locking, making it suitable for precision assembly scenarios in multiple industries.
In hydraulic equipment, it is used for locking the cylinder shaft end and bearing reciprocating loads; automated tooling fixtures rely on it for workpiece positioning and fixation; in general mechanical equipment and transmission components, it is used as a bushing repair and thread reinforcement component. Whether for mass production of standard parts or custom-made non-standard parts, flange threaded sleeves can meet the needs of precision assembly, solving assembly pain points such as easy thread wear, inaccurate positioning, and unstable connections.
Ganyuan Hardware is ISO9001 certified, establishing a complete quality inspection process from raw material intake to finished product delivery, strictly controlling the quality of each process.

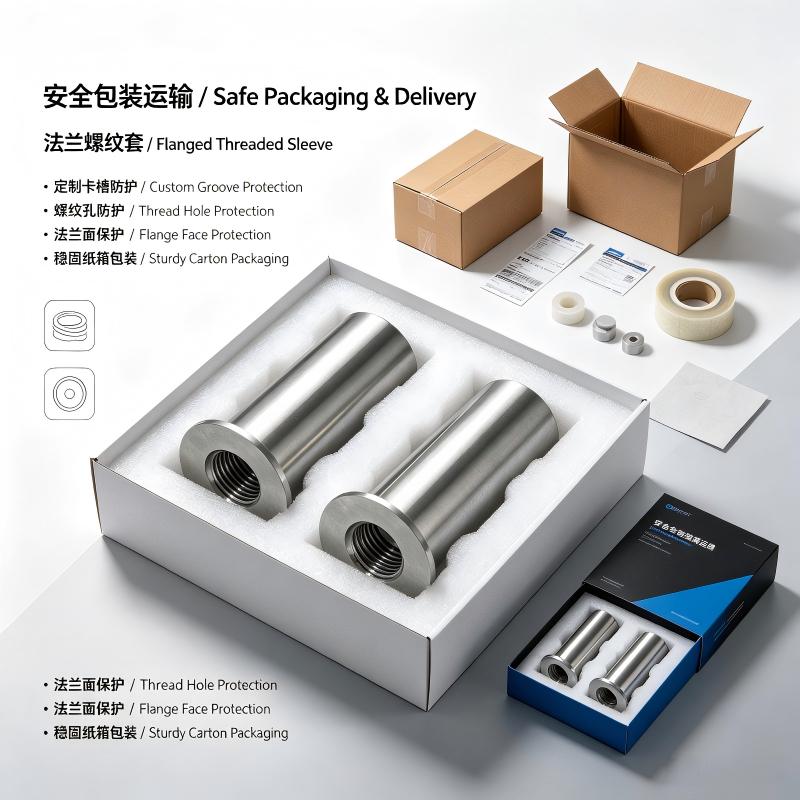

Finished flange threaded sleeves are packaged with customized slot protection, separately protecting the threaded hole and flange face to prevent damage from transportation bumps and scratches. The outer layer is sealed with a sturdy cardboard box to ensure the product's integrity during long-distance transportation. The company supports custom-made drawings, can quickly respond to customer drawing requirements, and can handle both small-batch sampling and large-volume order production, providing customers with one-stop precision hardware processing services.
Although small in size, flange threaded sleeves are crucial components that cannot be ignored in mechanical assembly. Leveraging CNC precision machining technology and a stable quality control system, Ganyuan Hardware consistently delivers highly durable and precise flange threaded sleeves. With reliable fastening performance and flexible customization capabilities, these products contribute to the stable operation of various mechanical equipment and continuously empower the supply of precision components for the intelligent manufacturing field.
Q1: Where can I get product & price information?
A1: Send us an inquiry e-mail, we will contact you once we received your mail.
Q2: How long will I get the sample?
A2: Depends on your specific items, within 3-7 days generally.
Q3: What kinds of information do you need for a quote?
A3: Kindly please provide the product drawings in PDF, if provide in STEP or IGS will be better.
Q4: What are the payment terms?
A4: We accept 50% as a payment deposit, when the goods are prepared, we shoot photos or videos for your check, and then you can pay the balance. For small quantities, we accept Paypal, the commission will be added to the order. For big amounts, T/T is preferred.
Q5: How to deliver the goods?
A5: We deliver the products by courier company.
Q6: Are you a trading company or factory?
A6: We are factory direct with 17 experienced engineers and more than 50 employees as well approximate 3,000m2 workshop area.
Q7: What shall we do if we don't have drawings?
A7: Please send your sample to our factory, then we can copy and provide you better solutions. If send us pictures or drafts with dimensions(Length, Height, Width), CAD or 3D file will be made for you.
Q8: Can we get some samples before mass production?
A8: Absolutely yes.
Q9: Will my drawings be safe after sending them to you?
Q10: Is it possible to know the operation status of my products without visiting your company?
A10: We will offer a detailed production schedule and send weekly reports with digital pictures and videos which show the machining progress.
