In mechanical transmission, automated equipment, and industrial control systems, knurled shafts are key components for achieving anti-slip grip, power transmission, and precise positioning. Their knurling precision, material strength, and surface finish directly determine the operational safety and transmission stability of the equipment. Dongguan Ganyuan Hardware Technology Co., Ltd., leveraging its advanced CNC machining system and full-process quality control capabilities, offers customized high-precision knurled shaft services. With "high-precision machining, enhanced friction, complex knurling, and industrial-grade quality" as its core advantages, it provides efficient and reliable precision transmission solutions for mask machines, packaging equipment, and automated production lines.

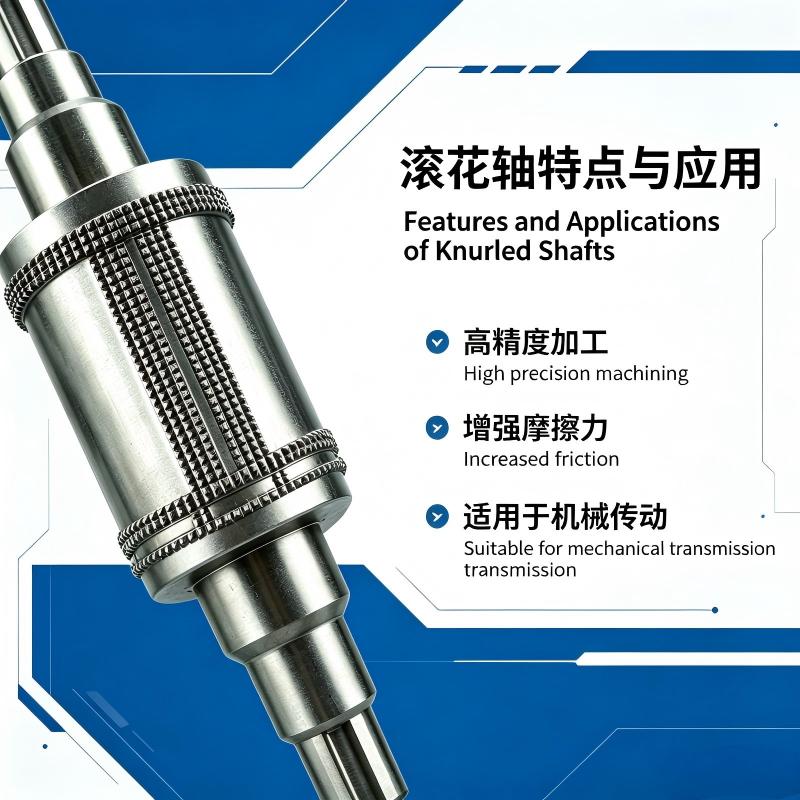

High-Precision Machining: Precision turning and knurling are performed using a five-axis CNC machining center, ensuring shaft diameter tolerances are controlled within ±0.005mm, meeting the requirements of high-speed rotation and precision assembly.
Enhanced Friction: Employing diamond or straight-knurling processes, the surface texture is uniform and clear, effectively increasing the coefficient of friction on the contact surface with hands or belts, preventing slippage, and ensuring operational safety.
Complex Texture Forming: Supports customized texture design, capable of processing knurling patterns with different pitches, angles, and depths to meet functional requirements under special working conditions.
CNC machined knurled shafts - Custom knurled pins for mechanical equipment Efficient

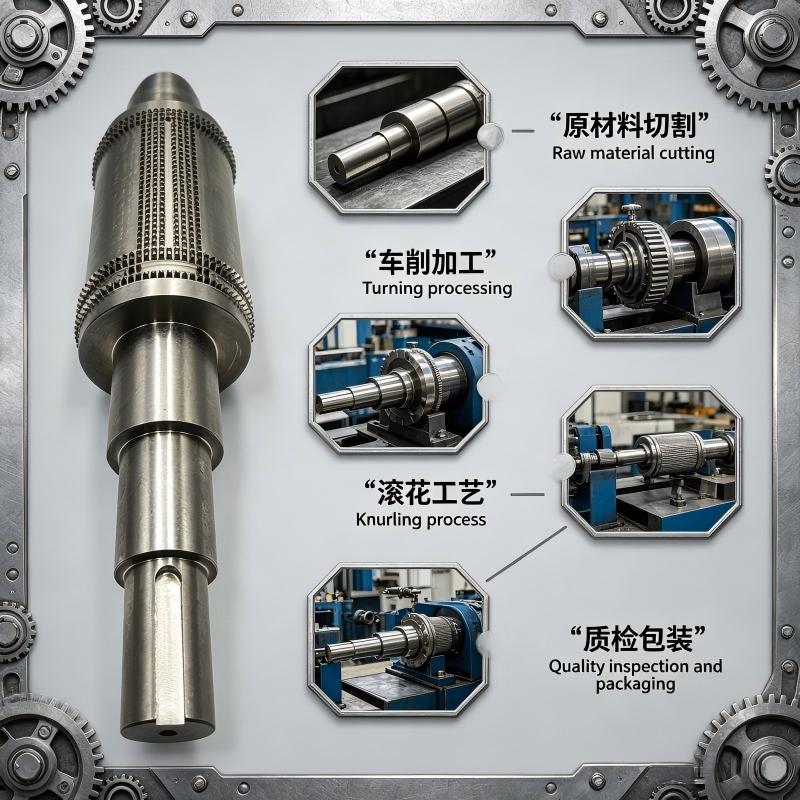

Ganyuan Hardware's knurled shafts manufacturing follows a standardized and visualized process to ensure that every product meets industrial-grade standards:
Raw Material Cutting: Selects high-quality carbon steel or stainless steel bars, precisely cut according to drawing dimensions to reduce material waste and ensure stable raw material quality.
Turning: Completes basic contour machining such as outer diameter, steps, and grooves on CNC lathes, ensuring dimensional accuracy and surface finish.
Knurling Process: Uses specialized knurling tools for high-precision embossing on CNC machine tools, ensuring consistent texture depth, no burrs, and no deformation.
The company is equipped with a complete CNC machining equipment system, including:
CNC Lathes: High-efficiency single-axis turning, suitable for simple shaft parts.
Five-axis CNC machining center: Five-axis linkage enables one-time clamping and forming of complex curved surfaces and multi-angle holes.
Mill-turning composite machine tool: Integrates turning and milling, reducing process steps and improving processing efficiency and consistency.
Four-axis CNC machining center: Four-axis linkage flexibly handles the multi-faceted machining needs of moderately complex parts.
The company has passed ISO9001:2015 quality management system certification, covering the entire process control from raw material procurement and production to finished product inspection. Every product comes with a quality inspection report to ensure compliance with industry standards and customer requirements. With stable quality and efficient delivery capabilities, Ganyuan Hardware has become a long-term partner of many automation equipment manufacturers, continuously providing precision hardware support for industrial upgrading.
Q1: Where can I get product & price information?
A1: Send us an inquiry e-mail, we will contact you once we received your mail.
Q2: How long will I get the sample?
A2: Depends on your specific items, within 3-7 days generally.
Q3: What kinds of information do you need for a quote?
A3: Kindly please provide the product drawings in PDF, if provide in STEP or IGS will be better.
Q4: What are the payment terms?
A4: We accept 50% as a payment deposit, when the goods are prepared, we shoot photos or videos for your check, and then you can pay the balance. For small quantities, we accept Paypal, the commission will be added to the order. For big amounts, T/T is preferred.
Q5: How to deliver the goods?
A5: We deliver the products by courier company.
Q6: Are you a trading company or factory?
A6: We are factory direct with 17 experienced engineers and more than 50 employees as well approximate 3,000m2 workshop area.
Q7: What shall we do if we don't have drawings?
A7: Please send your sample to our factory, then we can copy and provide you better solutions. If send us pictures or drafts with dimensions(Length, Height, Width), CAD or 3D file will be made for you.
Q8: Can we get some samples before mass production?
A8: Absolutely yes.
Q9: Will my drawings be safe after sending them to you?
Q10: Is it possible to know the operation status of my products without visiting your company?
A10: We will offer a detailed production schedule and send weekly reports with digital pictures and videos which show the machining progress.
