Dongguan Ganyuan Hardware Technology Co., Ltd. is deeply rooted in the field of precision CNC machining and possesses a complete ISO9001 quality management system. The company is equipped with a full set of machining equipment, including CNC lathes, five-axis machining centers, and milling-turning composite machines. Relying on digital programming simulation technology, it achieves automated and flexible production. The company has both standard parts mass production and non-standard customization capabilities, and can adjust the size and tooth profile parameters of the shift gear according to equipment operating conditions, providing stable and reliable transmission component solutions for automated equipment.
Paddle gear have a dense tooth distribution, requiring stringent requirements for tooth pitch and hole concentricity. Ganyuan Hardware adopts an integrated CNC machining solution, using professional software to plan toolpaths and complete multiple processes such as milling, drilling, and grinding in a single setup. Machining accuracy can reach ±0.005mm, effectively avoiding positioning deviations caused by multiple setups, ensuring that every tooth profile is regular and hole dimensions are uniform, meeting the assembly standards of precision transmission equipment.
Mechanical shift paddle gear - High-precision Reliable five-axis precision-machined parts

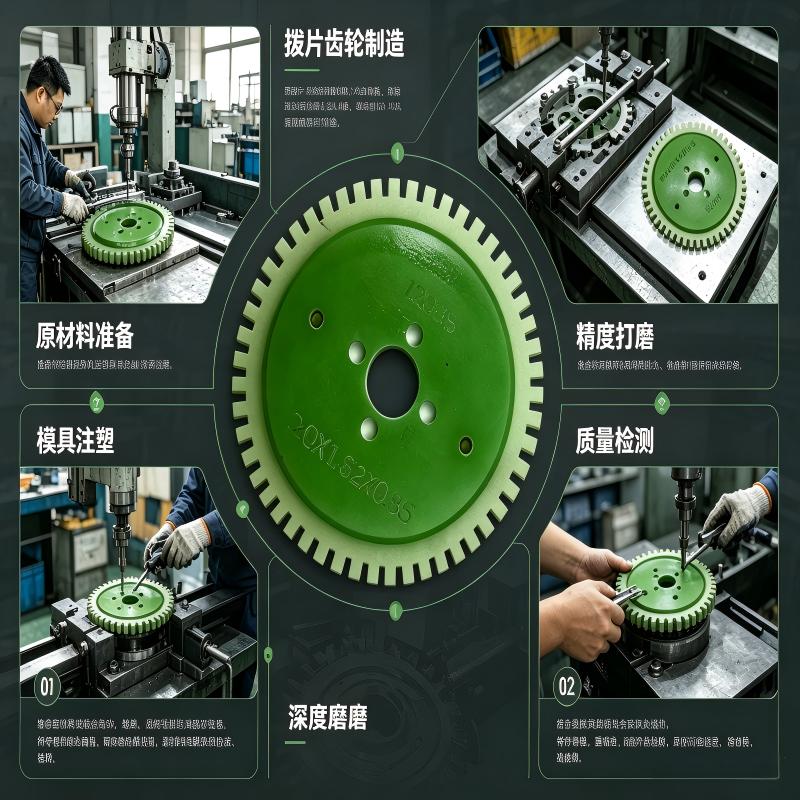

Paddle gear follow a systematic production process, starting with raw material selection, followed by pre-treatment of the blank, CNC milling, deep grinding, and dimensional verification. After processing, the tooth edges are meticulously hand-ground to remove burrs and sharp corners. The quality inspection stage comprehensively checks tooth pitch, flatness, and bore diameter tolerances to prevent defective products from entering the market, ensuring smooth gear operation and reducing transmission jamming and abnormal noise.

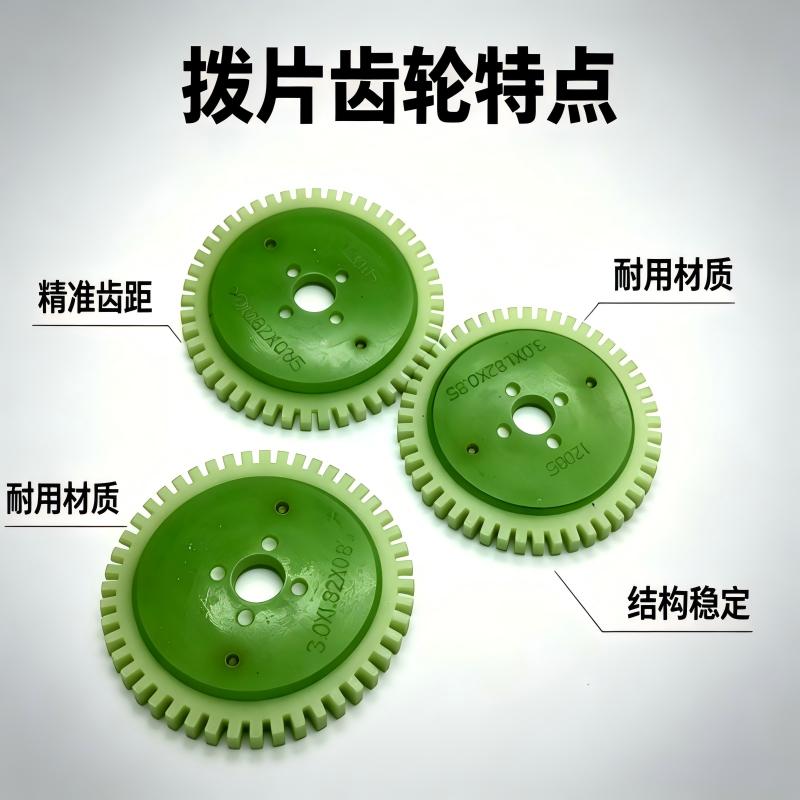

Paddle gear are made from highly wear-resistant engineering materials, possessing advantages such as structural stability, low friction coefficient, and wear resistance. Precise and uniform tooth pitch ensures smooth meshing and is not easily deformed during continuous operation; the material's excellent toughness and strong impact resistance make it suitable for long-term continuous operation in various automated conveying and sorting equipment, effectively extending the replacement cycle of parts and reducing equipment maintenance costs.
Gear teeth are delicate and easily damaged during transportation. After the finished product completes inspection, the shift gears are individually placed in a cardboard box lined with pearl cotton. The flexible filler isolates the product, preventing scratches and damage to the teeth. Standardized outer packaging addresses moisture and shock protection requirements, ensuring the product arrives at the customer's factory undamaged in appearance and precision, ready for direct installation and use after unpacking.
Shift gears are core transmission components in automated equipment; their machining precision and material properties directly affect the overall machine's operational stability. Ganyuan Hardware, relying on mature CNC machining equipment, standardized quality control processes, and wear-resistant raw materials, creates precision shift gears with accurate tooth pitch and durability. The company continuously optimizes its milling process, supports various non-standard customizations, and is committed to providing the automation industry with high-performance, cost-effective transmission components, contributing to the stable and efficient operation of industrial equipment.
Q1: Where can I get product & price information?
A1: Send us an inquiry e-mail, we will contact you once we received your mail.
Q2: How long will I get the sample?
A2: Depends on your specific items, within 3-7 days generally.
Q3: What kinds of information do you need for a quote?
A3: Kindly please provide the product drawings in PDF, if provide in STEP or IGS will be better.
Q4: What are the payment terms?
A4: We accept 50% as a payment deposit, when the goods are prepared, we shoot photos or videos for your check, and then you can pay the balance. For small quantities, we accept Paypal, the commission will be added to the order. For big amounts, T/T is preferred.
Q5: How to deliver the goods?
A5: We deliver the products by courier company.
Q6: Are you a trading company or factory?
A6: We are factory direct with 17 experienced engineers and more than 50 employees as well approximate 3,000m2 workshop area.
Q7: What shall we do if we don't have drawings?
A7: Please send your sample to our factory, then we can copy and provide you better solutions. If send us pictures or drafts with dimensions(Length, Height, Width), CAD or 3D file will be made for you.
Q8: Can we get some samples before mass production?
A8: Absolutely yes.
Q9: Will my drawings be safe after sending them to you?
Q10: Is it possible to know the operation status of my products without visiting your company?
A10: We will offer a detailed production schedule and send weekly reports with digital pictures and videos which show the machining progress.
