As a core positioning and connecting component in automated equipment and precision machinery, positioning flange seats rely on precise coaxiality and stable load-bearing capacity to achieve rapid alignment and locking between mechanisms. Dongguan Ganyuan Hardware Technology Co., Ltd., deeply rooted in the field of precision CNC machining, leverages its mature process system to create high-standard positioning flange seats, providing reliable component solutions for various precision equipment.
The positioning flange seat adopts an integrated structure design of stepped boss and flange plate. The flange plate has evenly spaced mounting holes, allowing for rapid flange installation and hole alignment. The product uses high-quality metal base material, forged and precision machined, resulting in high overall structural strength, rigidity, and strong resistance to deformation. Machining accuracy can reach ±0.005mm, with strict control over boss coaxiality and flatness, ensuring positioning accuracy during equipment assembly, reducing errors caused by assembly gaps, and adapting to precision mechanisms operating continuously for extended periods. During equipment operation, the flange seat can stably transmit loads, reduce displacement caused by vibration, and improve the overall stability of the equipment.
Precision Positioning Flange Seats - Stable quality Fundamental Connecting Components for CNC Machining Equipment

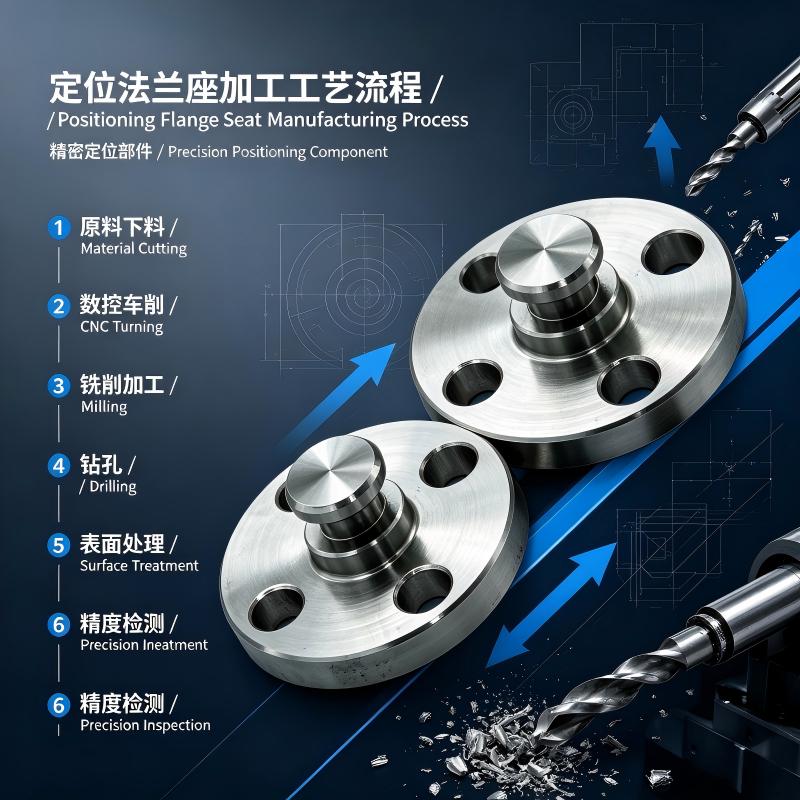

Ganyuan Hardware possesses a complete set of machining equipment, including CNC lathes, five-axis machining centers, and milling-turning composite machines. The positioning flange seats follow a standardized machining process. First, raw material is cut using qualified bar stock; then, the basic shape is roughed and finished using CNC turning; next, milling is performed to trim the flange end face; followed by drilling to machine the mounting holes; then surface treatment is applied to improve rust resistance and wear resistance; finally, precision inspection is conducted, using professional measuring tools to verify dimensions and geometric tolerances item by item, and unqualified products are directly rejected.
This entire process, combined with programming simulation and toolpath planning, improves machining efficiency by 30% compared to traditional machining, enabling stable batch production.

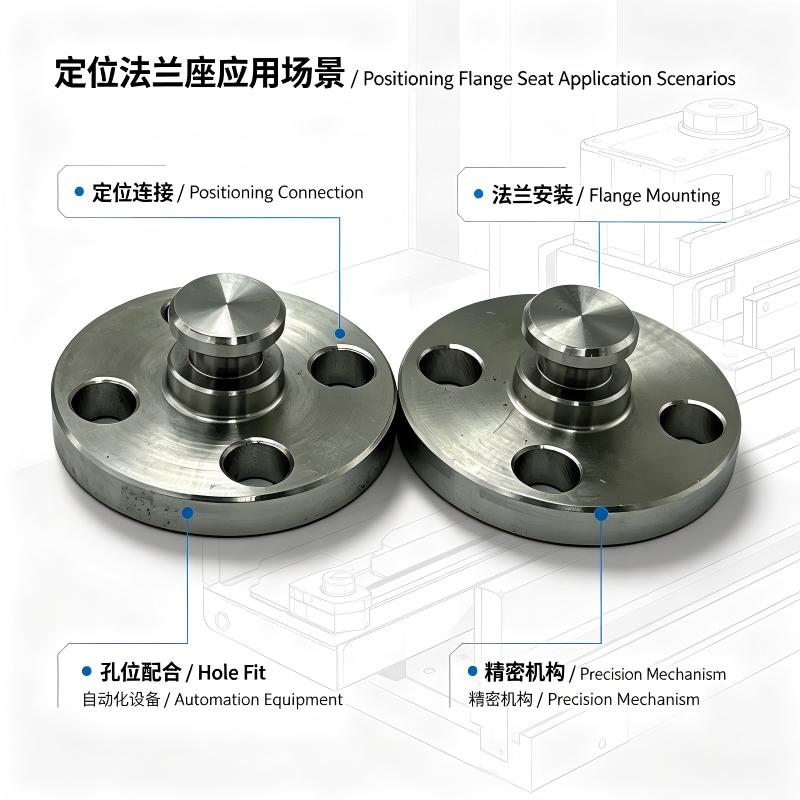

With its functional characteristics of positioning connection, flange installation, and hole matching, the positioning flange seat has a wide range of applications. In automated production equipment, flange seats serve as positioning bases for tooling fixtures, ensuring consistent and repeatable workpiece positioning. They are also used in various precision transmission mechanisms and testing instruments to achieve component docking and guarantee transmission accuracy. Furthermore, they are suitable for robots and non-standard mechanical equipment. Whether for lightweight assembly of small and medium-sized equipment or fixed connections under heavy-duty conditions, Ganyuan Hardware can customize positioning flange seats of different specifications and materials according to customer drawings.

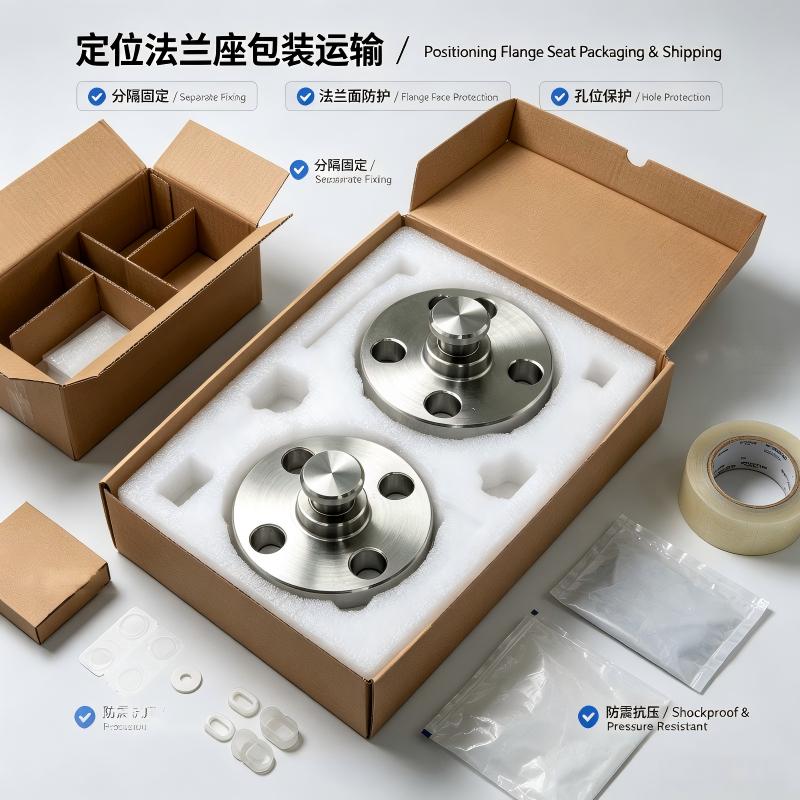

The company is ISO9001 certified, establishing a complete quality inspection system from raw material intake to finished product delivery. Inspection records are kept for each batch of positioning flange seats, ensuring traceability of quality. Finished product packaging fully considers the protection of precision parts, using customized pearl cotton inner supports for separation and fixation, providing special protection for flange end faces and hole positions, and combining with rigid cardboard box packaging to achieve shock and pressure resistance, preventing bumps and scratches during transportation, and ensuring the parts are delivered intact.
While the positioning flange seat may appear simple in structure, it is an indispensable basic component in precision mechanical assembly. Ganyuan Hardware adheres to precision CNC machining technology as its core, taking into account product accuracy, durability and delivery efficiency. With standardized production and customized services, it continuously provides high-quality positioning flange seats for the automation and precision equipment industry, helping customers' equipment to operate stably and efficiently.
