Dongguan Ganyuan Hardware Technology Co., Ltd. specializes in CNC precision parts machining, equipped with a full set of processing equipment including CNC lathes, four-axis and five-axis machining centers, and milling-turning composite machines. Leveraging mature CNC machining technology, positioning accuracy can reach 0.001mm. With its highly automated and flexible machining advantages, it can complete customized machining of scale rings of various specifications. The company holds ISO9001 quality management system certification, supports sample making based on drawings and samples, and large-volume order production, providing high-precision scale ring solutions for various mechanical equipment.
Scale rings are mostly made of metal base materials, which possess good hardness and wear resistance, preventing wear and deformation even during repeated rotation and adjustment. The base material has good stability and strong resistance to deformation, ensuring no dimensional shift under long-term working conditions. The surface undergoes special treatment, preventing the scale from wearing away and becoming blurred, allowing for clear readings even with high-frequency adjustments. The material is adaptable to various industrial environments, exhibits excellent rust resistance, effectively extending the overall service life of the scale ring and reducing the cost of later equipment maintenance and replacement.
CNC Precision Scale Rings: Key Components for Adjusting Readings in Mechanical Equipment Expertly

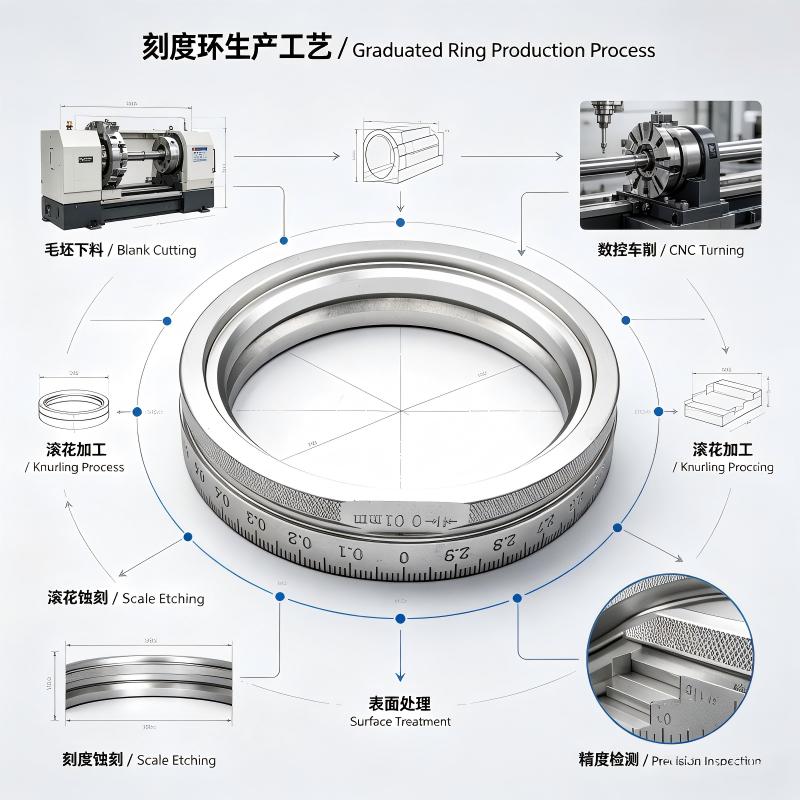

The scale rings boasts a complete and standardized production process. Starting with the blank cutting, the raw material is prepared; the inner and outer contours of the ring are machined using CNC turning to ensure dimensional tolerances; knurling is performed to create a non-slip surface texture; then, scale etching is carried out to precisely engrave the measuring scale; subsequent surface treatment optimizes the appearance; finally, precision testing is conducted, and only qualified products are shipped. The entire process strictly controls the ring size, scale spacing, and knurling pattern, ensuring that each product has uniform scale, consistent dimensions, and good interchangeability.
The precision scale rings is mainly used in various mechanical equipment requiring rotational adjustment. The knurled outer ring facilitates manual rotation, and the scale markings allow for precise readings and fine-tuning adjustments. The product assembles stably with the equipment body, rotating smoothly without jamming. It is widely used in instruments, tooling equipment, precision machine tools, and other fields. We can customize outer diameters, scale spacing, and measuring ranges according to customer drawings to meet the installation and adjustment requirements of various equipment.
Based on the ISO9001 quality control system, we implement full-process testing. During production, we sample and test inner and outer diameters and thickness; finished products undergo thorough verification of scale accuracy, knurling integrity, and surface scratches and dents. Whether for small-batch samples or large-volume deliveries, we adhere to consistent testing standards. We prevent products with misaligned scales or out-of-tolerance dimensions from leaving the factory, ensuring smooth scale ring assembly and accurate, reliable readings.
Scale Rings are precision parts, and the scale surface is easily scratched and damaged. Our products use customized pearl cotton slots for positioning and protection, preventing friction and impact on the scale surface. The outer packaging is reinforced with a hard cardboard box. This focused protection of precision scales reduces damage during logistics and transportation, ensuring the workpiece arrives at the customer's hands intact, providing a stable and reliable supply service.
Q1: Where can I get product & price information?
A1: Send us an inquiry e-mail, we will contact you once we received your mail.
Q2: How long will I get the sample?
A2: Depends on your specific items, within 3-7 days generally.
Q3: What kinds of information do you need for a quote?
A3: Kindly please provide the product drawings in PDF, if provide in STEP or IGS will be better.
Q4: What are the payment terms?
A4: We accept 50% as a payment deposit, when the goods are prepared, we shoot photos or videos for your check, and then you can pay the balance. For small quantities, we accept Paypal, the commission will be added to the order. For big amounts, T/T is preferred.
Q5: How to deliver the goods?
A5: We deliver the products by courier company.
Q6: Are you a trading company or factory?
A6: We are factory direct with 17 experienced engineers and more than 50 employees as well approximate 3,000m2 workshop area.
Q7: What shall we do if we don't have drawings?
A7: Please send your sample to our factory, then we can copy and provide you better solutions. If send us pictures or drafts with dimensions(Length, Height, Width), CAD or 3D file will be made for you.
Q8: Can we get some samples before mass production?
A8: Absolutely yes.
Q9: Will my drawings be safe after sending them to you?
Q10: Is it possible to know the operation status of my products without visiting your company?
A10: We will offer a detailed production schedule and send weekly reports with digital pictures and videos which show the machining progress.
